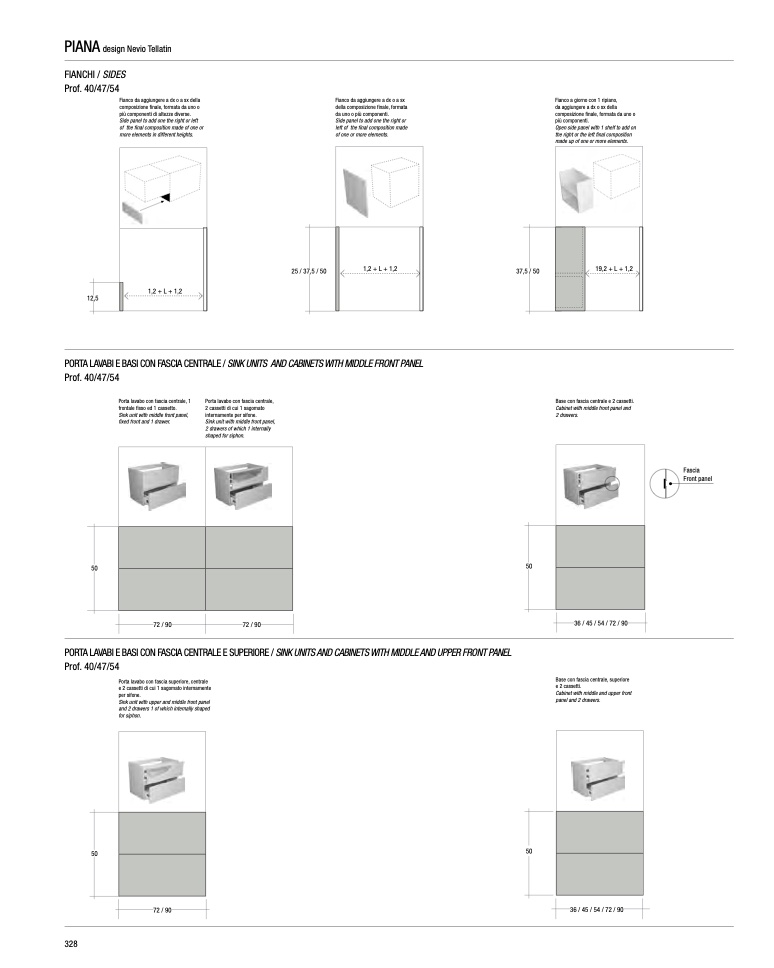

PIANA

design Nevio Tellatin

FIANCHI / SIDES

Prof. 40/47/54

Fianco da aggiungere a dx o a sx della

composizione finale, formata da uno o

più componenti di altezze diverse.

Side panel to add one the right or left

of the final composition made of one or

more elements in different heights.

12,5

PORTA LAVABI E BASI CON FASCIA CENTRALE / SINK UNITS AND CABINETS WITH MIDDLE FRONT PANEL

Prof. 40/47/54

Fianco da aggiungere a dx o a sx

della composizione finale, formata

da uno o più componenti.

Side panel to add one the right or

left of the final composition made

of one or more elements.

Fianco a giorno con 1 ripiano,

da aggiungere a dx o sx della

composizione finale, formata da uno o

più componenti.

Open side panel with 1 shelf to add on

the right or the left final composition

made up of one or more elements.

1,2 + L + 1,2

1,2 + L + 1,2

25 / 37,5 / 50

37,5 / 50

19,2 + L + 1,2

Porta lavabo con fascia centrale, 1

frontale fisso ed 1 cassetto.

Sink unit with middle front panel,

fixed front and 1 drawer.

Porta lavabo con fascia centrale,

2 cassetti di cui 1 sagomato

internamente per sifone.

Sink unit with middle front panel,

2 drawers of which 1 internally

shaped for siphon.

Base con fascia centrale e 2 cassetti.

Cabinet with middle front panel and

2 drawers.

72 / 90 72 / 90

Fascia

Front panel

50

50

PORTA LAVABI E BASI CON FASCIA CENTRALE E SUPERIORE / SINK UNITS AND CABINETS WITH MIDDLE AND UPPER FRONT PANEL

Prof. 40/47/54

36 / 45 / 54 / 72 / 90

Base con fascia centrale, superiore

e 2 cassetti.

Cabinet with middle and upper front

panel and 2 drawers.

Porta lavabo con fascia superiore, centrale

e 2 cassetti di cui 1 sagomato internamente

per sifone.

Sink unit with upper and middle front panel

and 2 drawers 1 of which internally shaped

for siphon.

50

50

72 / 90

36 / 45 / 54 / 72 / 90

328
