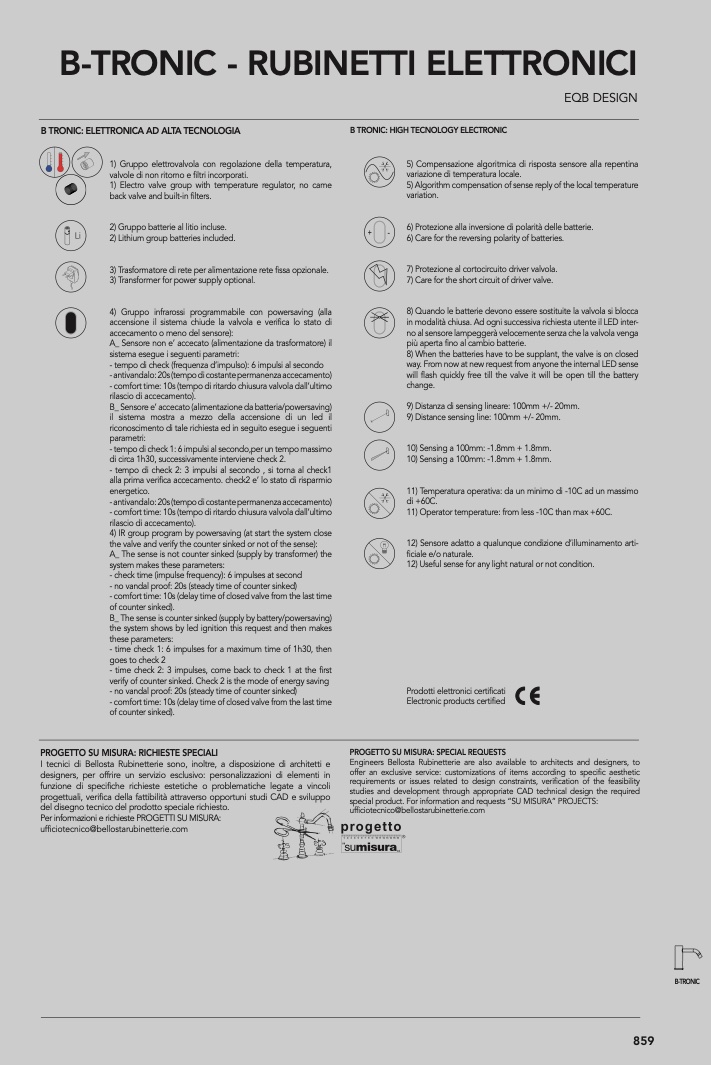

B-TRONIC - RUBINETTI ELETTRONICI

B TRONIC: ELETTRONICA AD ALTA TECNOLOGIA

1) Gruppo elettrovalvola con regolazione della temperatura,

valvole di non ritorno e filtri incorporati.

1) Electro valve group with temperature regulator, no came

back valve and built-in filters.

2) Gruppo batterie al litio incluse.

2) Lithium group batteries included.

3) Trasformatore di rete per alimentazione rete fissa opzionale.

3) Transformer for power supply optional.

4) Gruppo infrarossi programmabile con powersaving (alla

accensione il sistema chiude la valvola e verifica lo stato di

accecamento o meno del sensore):

A_ Sensore non e’ accecato (alimentazione da trasformatore) il

sistema esegue i seguenti parametri:

- tempo di check (frequenza d’impulso): 6 impulsi al secondo

- antivandalo: 20s (tempo di costante permanenza accecamento)

- comfort time: 10s (tempo di ritardo chiusura valvola dall’ultimo

rilascio di accecamento).

B_ Sensore e’ accecato (alimentazione da batteria/powersaving)

il sistema mostra a mezzo della accensione di un led il

riconoscimento di tale richiesta ed in seguito esegue i seguenti

parametri:

- tempo di check 1: 6 impulsi al secondo,per un tempo massimo

di circa 1h30, successivamente interviene check 2.

- tempo di check 2: 3 impulsi al secondo , si torna al check1

alla prima verifica accecamento. check2 e’ lo stato di risparmio

energetico.

- antivandalo: 20s (tempo di costante permanenza accecamento)

- comfort time: 10s (tempo di ritardo chiusura valvola dall’ultimo

rilascio di accecamento).

4) IR group program by powersaving (at start the system close

the valve and verify the counter sinked or not of the sense):

A_ The sense is not counter sinked (supply by transformer) the

system makes these parameters:

- check time (impulse frequency): 6 impulses at second

- no vandal proof: 20s (steady time of counter sinked)

- comfort time: 10s (delay time of closed valve from the last time

of counter sinked).

B_ The sense is counter sinked (supply by battery/powersaving)

the system shows by led ignition this request and then makes

these parameters:

- time check 1: 6 impulses for a maximum time of 1h30, then

goes to check 2

- time check 2: 3 impulses, come back to check 1 at the first

verify of counter sinked. Check 2 is the mode of energy saving

- no vandal proof: 20s (steady time of counter sinked)

- comfort time: 10s (delay time of closed valve from the last time

of counter sinked).

PROGETTO SU MISURA: RICHIESTE SPECIALI

I tecnici di Bellosta Rubinetterie sono, inoltre, a disposizione di architetti e

designers, per offrire un servizio esclusivo: personalizzazioni di elementi in

funzione di specifiche richieste estetiche o problematiche legate a vincoli

progettuali, verifica della fattibilità attraverso opportuni studi CAD e sviluppo

del disegno tecnico del prodotto speciale richiesto.

Per informazioni e richieste PROGETTI SU MISURA:

ufficiotecnico@bellostarubinetterie.com

B TRONIC: HIGH TECNOLOGY ELECTRONIC

5) Compensazione algoritmica di risposta sensore alla repentina

variazione di temperatura locale.

5) Algorithm compensation of sense reply of the local temperature

variation.

6) Protezione alla inversione di polarità delle batterie.

6) Care for the reversing polarity of batteries.

7) Protezione al cortocircuito driver valvola.

7) Care for the short circuit of driver valve.

8) Quando le batterie devono essere sostituite la valvola si blocca

in modalità chiusa. Ad ogni successiva richiesta utente il LED inter-

no al sensore lampeggerà velocemente senza che la valvola venga

più aperta fino al cambio batterie.

8) When the batteries have to be supplant, the valve is on closed

way. From now at new request from anyone the internal LED sense

will flash quickly free till the valve it will be open till the battery

change.

9) Distanza di sensing lineare: 100mm +/- 20mm.

9) Distance sensing line: 100mm +/- 20mm.

10) Sensing a 100mm: -1.8mm + 1.8mm.

10) Sensing a 100mm: -1.8mm + 1.8mm.

11) Temperatura operativa: da un minimo di -10C ad un massimo

di +60C.

11) Operator temperature: from less -10C than max +60C.

12) Sensore adatto a qualunque condizione d’illuminamento arti-

ficiale e/o naturale.

12) Useful sense for any light natural or not condition.

Prodotti elettronici certificati

Electronic products certified

PROGETTO SU MISURA: SPECIAL REQUESTS

Engineers Bellosta Rubinetterie are also available to architects and designers, to

offer an exclusive service: customizations of items according to specific aesthetic

requirements or issues related to design constraints, verification of the feasibility

studies and development through appropriate CAD technical design the required

special product. For information and requests “SU MISURA” PROJECTS:

ufficiotecnico@bellostarubinetterie.com
