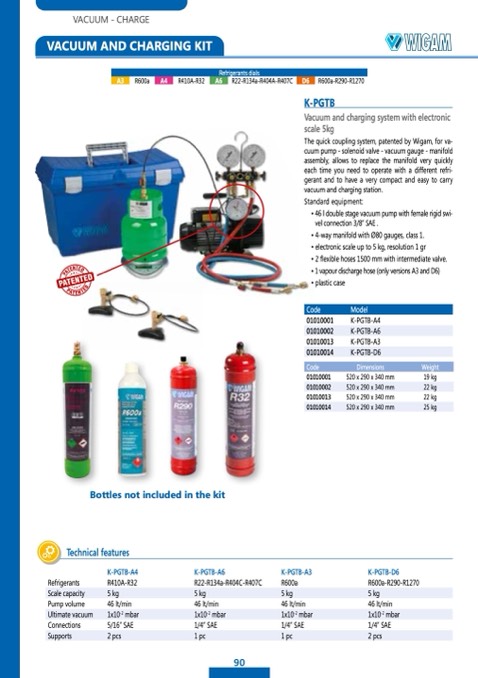

VACUUM - CHARGE
VACUUM AND CHARGING KIT
A3 R600a A4
Refrigerants dials
R410A-R32
A6
R22-R134a-R404A-R407C
D6 R600a-R290-R1270
K-PGTB
Vacuum and charging system with electronic
scale 5kg
The quick coupling system, patented by Wigam, for va-
cuum pump - solenoid valve - vacuum gauge - manifold
assembly, allows to replace the manifold very quickly
each time you need to operate with a different refri-
gerant and to have a very compact and easy to carry
vacuum and charging station.
Standard equipment:
• 46 l double stage vacuum pump with female rigid swi-
vel connection 3/8” SAE .
• 4-way manifold with Ø80 gauges, class 1.
• electronic scale up to 5 kg, resolution 1 gr
• 2 flexible hoses 1500 mm with intermediate valve.
• 1 vapour discharge hose (only versions A3 and D6)
• plastic case
Code
Model
01010001
K-PGTB-A4
01010002
K-PGTB-A6
01010013
K-PGTB-A3
01010014
K-PGTB-D6
Code
Dimensions
Weight
01010001
520 x 290 x 340 mm
19 kg
01010002
520 x 290 x 340 mm
22 kg
01010013
520 x 290 x 340 mm
22 kg
01010014
520 x 290 x 340 mm
25 kg
Bottles not included in the kit
Technical features
K-PGTB-A4
K-PGTB-A6
Refrigerants
R410A-R32
R22-R134a-R404C-R407C
K-PGTB-A3
R600a
K-PGTB-D6
R600a-R290-R1270
Scale capacity
5 kg
5 kg
5 kg
5 kg
Pump volume
46 lt/min
46 lt/min
46 lt/min
46 lt/min
Ultimate vacuum
1x10
-2
mbar
1x10
-2
mbar
1x10
-2
mbar
1x10
-2
mbar
Connections
5/16” SAE
1/4” SAE
1/4” SAE
1/4” SAE
Supports
2 pcs
1 pc
1 pc
2 pcs
90
