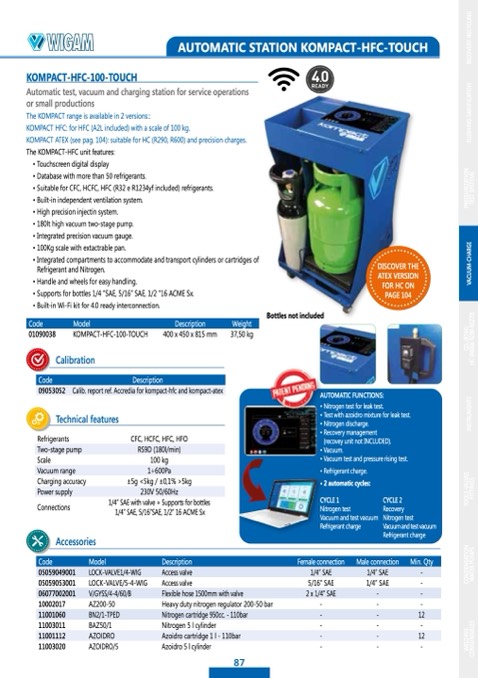

KOMPACT-HFC-100-TOUCH

Automatic test, vacuum and charging station for service operations

or small productions

The KOMPACT range is available in 2 versions::

KOMPACT HFC: for HFC (A2L included) with a scale of 100 kg.

KOMPACT ATEX (see pag. 104): suitable for HC (R290, R600) and precision charges.

The KOMPACT-HFC unit features:

• Touchscreen digital display

• Database with more than 50 refrigerants.

• Suitable for CFC, HCFC, HFC (R32 e R1234yf included) refrigerants.

• Built-in independent ventilation system.

• High precision injectin system.

• 180lt high vacuum two-stage pump.

• Integrated precision vacuum gauge.

• 100Kg scale with extactrable pan.

• Integrated compartments to accommodate and transport cylinders or cartridges of

Refrigerant and Nitrogen.

READY

• Handle and wheels for easy handling.

• Supports for bottles 1/4 “SAE, 5/16” SAE, 1/2 “16 ACME Sx.

• Built-in Wi-Fi kit for 4.0 ready interconnection.

DISCOVER THE

ATEX VERSION

FOR HC ON

PAGE 104

Code

Model

01090038

KOMPACT-HFC-100-TOUCH

Calibration

Description

400 x 450 x 815 mm

Weight

37,50 kg

Bottles not included

Code

Description

09053052 Calib. report ref. Accredia for kompact-hfc and kompact-atex

Technical features

AUTOMATIC FUNCTIONS:

• Nitrogen test for leak test.

• Test with azoidro mixture for leak test.

• Nitrogen discharge.

• Recovery management

(recovey unit not INCLUDED).

• Vacuum.

• Vacuum test and pressure rising test.

Refrigerants

Two-stage pump

Scale

Vacuum range

Charging accuracy

Power supply

Connections

CFC, HCFC, HFC, HFO

RS9D (180l/min)

100 kg

1÷600Pa

±5g <5kg / ±0,1% >5kg

230V 50/60Hz

1/4” SAE with valve + Supports for bottles

1/4” SAE, 5/16”SAE, 1/2” 16 ACME Sx

• Refrigerant charge.

• 2 automatic cycles:

CYCLE 1

Nitrogen test

Vacuumandtestvacuum

Refrigerant charge

CYCLE 2

Recovery

Nitrogentest

Vacuum and test vacuum

Refrigerant charge

Accessories

Code

05059049001

05059053001

06077002001

10002017

11001060

11003011

11001112

11003020

Model

LOCK-VALVE1/4-WIG

LOCK-VALVE/5-4-WIG

V/GYSS/4-4/60/B

AZ200-50

BN2/1-TPED

BAZ50/1

AZOIDRO

AZOIDRO/5

Description

Female connection

1/4” SAE

5/16” SAE

2 x 1/4” SAE

-

-

-

-

-

Male connection

1/4” SAE

1/4” SAE

-

-

-

-

-

-

Min. Qty

-

-

-

-

12

-

12

-

AUTOMATIC STATION KOMPACT-HFC-TOUCH

Access valve

Access valve

Flexible hose 1500mm with valve

Heavy duty nitrogen regulator 200-50 bar

Nitrogen cartridge 950cc. - 110bar

Nitrogen 5 l cylinder

Azoidro cartridge 1 l - 110bar

Azoidro 5 l cylinder
