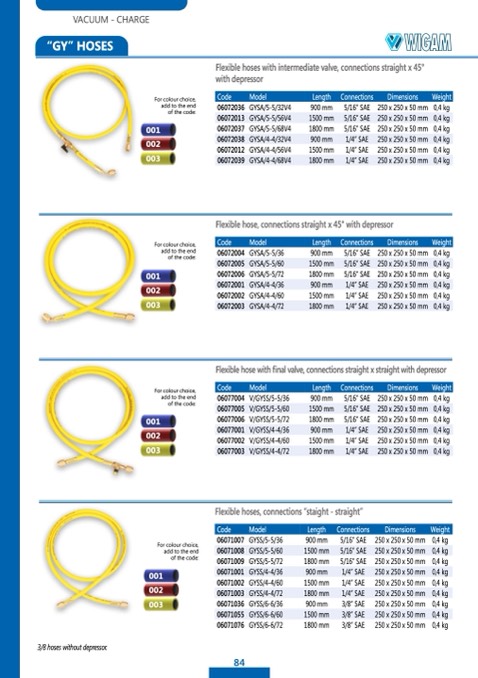

VACUUM - CHARGE

“GY” HOSES

Flexible hoses with intermediate valve, connections straight x 45°

with depressor

Code

Model

Length

Connections

Dimensions

Weight

06072036

GYSA/5-5/32V4

900 mm

5/16” SAE

250 x 250 x 50 mm

0,4 kg

06072013

GYSA/5-5/56V4

1500 mm

5/16” SAE

250 x 250 x 50 mm

0,4 kg

06072037

GYSA/5-5/68V4

1800 mm

5/16” SAE

250 x 250 x 50 mm

0,4 kg

06072038

GYSA/4-4/32V4

900 mm

1/4” SAE

250 x 250 x 50 mm

0,4 kg

06072012

GYSA/4-4/56V4

1500 mm

1/4” SAE

250 x 250 x 50 mm

0,4 kg

06072039

GYSA/4-4/68V4

1800 mm

1/4” SAE

250 x 250 x 50 mm

0,4 kg

For colour choice,

add to the end

of the code:

001

002

003

For colour choice,

add to the end

of the code:

001

002

003

For colour choice,

add to the end

of the code:

001

002

003

For colour choice,

add to the end

of the code:

001

002

003

Flexible hose, connections straight x 45° with depressor

Code

Model

Length

Connections

Dimensions

Weight

06072004

GYSA/5-5/36

900 mm

5/16” SAE

250 x 250 x 50 mm

0,4 kg

06072005

GYSA/5-5/60

1500 mm

5/16” SAE

250 x 250 x 50 mm

0,4 kg

06072006

GYSA/5-5/72

1800 mm

5/16” SAE

250 x 250 x 50 mm

0,4 kg

06072001

GYSA/4-4/36

900 mm

1/4” SAE

250 x 250 x 50 mm

0,4 kg

06072002

GYSA/4-4/60

1500 mm

1/4” SAE

250 x 250 x 50 mm

0,4 kg

06072003

GYSA/4-4/72

1800 mm

1/4” SAE

250 x 250 x 50 mm

0,4 kg

Flexible hose with final valve, connections straight x straight with depressor

Code

Model

Length

Connections

Dimensions

Weight

06077004

V/GYSS/5-5/36

900 mm

5/16” SAE

250 x 250 x 50 mm

0,4 kg

06077005

V/GYSS/5-5/60

1500 mm

5/16” SAE

250 x 250 x 50 mm

0,4 kg

06077006

V/GYSS/5-5/72

1800 mm

5/16” SAE

250 x 250 x 50 mm

0,4 kg

06077001

V/GYSS/4-4/36

900 mm

1/4” SAE

250 x 250 x 50 mm

0,4 kg

06077002

V/GYSS/4-4/60

1500 mm

1/4” SAE

250 x 250 x 50 mm

0,4 kg

06077003

V/GYSS/4-4/72

1800 mm

1/4” SAE

250 x 250 x 50 mm

0,4 kg

Flexible hoses, connections “staight - straight”

Code

Model

Length

Connections

Dimensions

Weight

06071007

GYSS/5-5/36

900 mm

5/16” SAE

250 x 250 x 50 mm

0,4 kg

06071008

GYSS/5-5/60

1500 mm

5/16” SAE

250 x 250 x 50 mm

0,4 kg

06071009

GYSS/5-5/72

1800 mm

5/16” SAE

250 x 250 x 50 mm

0,4 kg

06071001

GYSS/4-4/36

900 mm

1/4” SAE

250 x 250 x 50 mm

0,4 kg

06071002

GYSS/4-4/60

1500 mm

1/4” SAE

250 x 250 x 50 mm

0,4 kg

06071003

GYSS/4-4/72

1800 mm

1/4” SAE

250 x 250 x 50 mm

0,4 kg

06071036

GYSS/6-6/36

900 mm

3/8” SAE

250 x 250 x 50 mm

0,4 kg

06071055

GYSS/6-6/60

1500 mm

3/8” SAE

250 x 250 x 50 mm

0,4 kg

06071076

GYSS/6-6/72

1800 mm

3/8” SAE

250 x 250 x 50 mm

0,4 kg

3/8 hoses without depressor.
