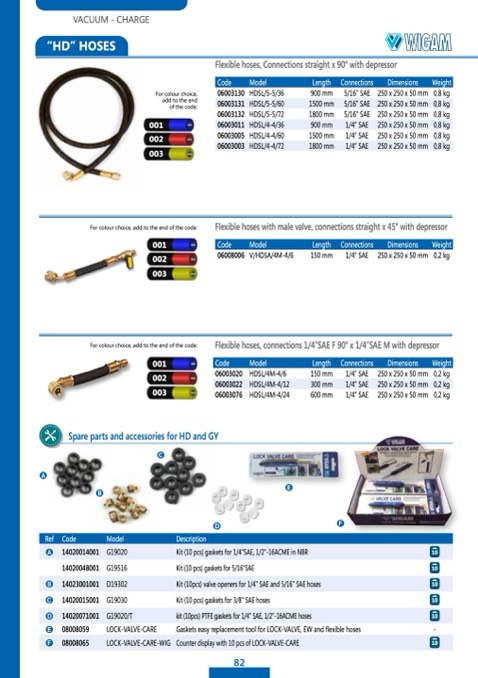

VACUUM - CHARGE

“HD” HOSES

Flexible hoses, Connections straight x 90° with depressor

Code

Model

Length

Connections

Dimensions

Weight

06003130

HDSL/5-5/36

900 mm

5/16” SAE

250 x 250 x 50 mm

0,8 kg

06003131

HDSL/5-5/60

1500 mm

5/16” SAE

250 x 250 x 50 mm

0,8 kg

06003132

HDSL/5-5/72

1800 mm

5/16” SAE

250 x 250 x 50 mm

0,8 kg

06003011

HDSL/4-4/36

900 mm

1/4” SAE

250 x 250 x 50 mm

0,8 kg

06003005

HDSL/4-4/60

1500 mm

1/4” SAE

250 x 250 x 50 mm

0,8 kg

06003003

HDSL/4-4/72

1800 mm

1/4” SAE

250 x 250 x 50 mm

0,8 kg

For colour choice,

add to the end

of the code:

001

002

003

For colour choice, add to the end of the code:

001

002

003

For colour choice, add to the end of the code:

001

002

003

Spare parts and accessories for HD and GY

Flexible hoses with male valve, connections straight x 45° with depressor

Code

Model

Length

Connections

Dimensions

Weight

06008006

V/HDSA/4M-4/6

150 mm

1/4” SAE

250 x 250 x 50 mm

0,2 kg

Flexible hoses, connections 1/4”SAE F 90° x 1/4”SAE M with depressor

Code

Model

Length

Connections

Dimensions

Weight

06003020

HDSL/4M-4/6

150 mm

1/4” SAE

250 x 250 x 50 mm

0,2 kg

06003022

HDSL/4M-4/12

300 mm

1/4” SAE

250 x 250 x 50 mm

0,2 kg

06003076

HDSL/4M-4/24

600 mm

1/4” SAE

250 x 250 x 50 mm

0,2 kg

A

C

B

E

Ref

A

B

C

D

E

F

Code

14020014001

14020048001

14023001001

14020015001

14020071001

08008059

08008065

Model

G19020

G19516

D19302

G19030

G19020/T

LOCK-VALVE-CARE

LOCK-VALVE-CARE-WIG

Description

D

F

Kit (10 pcs) gaskets for 1/4”SAE, 1/2”-16ACME in NBR

Kit (10 pcs) gaskets for 5/16”SAE

Kit (10pcs) valve openers for 1/4” SAE and 5/16” SAE hoses

Kit (10 pcs) gaskets for 3/8” SAE hoses

kit (10pcs) PTFE gaskets for 1/4” SAE, 1/2”-16ACME hoses

Gaskets easy replacement tool for LOCK-VALVE, EW and flexible hoses

Counter display with 10 pcs of LOCK-VALVE-CARE

10

10

10

82

10

10

-

10
