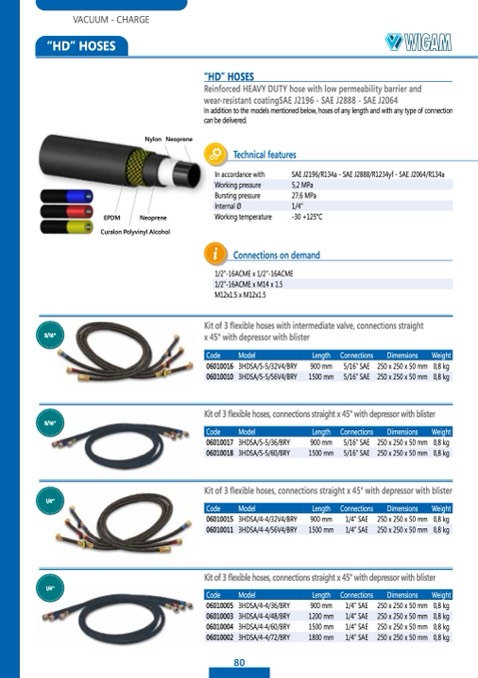

VACUUM - CHARGE

“HD” HOSES

“HD” HOSES

Reinforced HEAVY DUTY hose with low permeability barrier and

wear-resistant coatingSAE J2196 - SAE J2888 - SAE J2064

In addition to the models mentioned below, hoses of any length and with any type of connection

can be delivered.

Technical features

Nylon Neoprene

Working pressure

5,2 MPa

Internal Ø

1/4”

EPDM

Neoprene

Curalon Polyvinyl Alcohol

In accordance with

Bursting pressure

Working temperature

SAE J2196/R134a - SAE J2888/R1234yf - SAE J2064/R134a

27,6 MPa

-30 +125°C

5/16”

5/16”

1/4”

1/4”

i

Connections on demand

1/2”-16ACME x 1/2”-16ACME

1/2”-16ACME x M14 x 1.5

M12x1.5 x M12x1.5

Kit of 3 flexible hoses with intermediate valve, connections straight

x 45° with depressor with blister

Kit of 3 flexible hoses, connections straight x 45° with depressor with blister

Kit of 3 flexible hoses, connections straight x 45° with depressor with blister

Kit of 3 flexible hoses, connections straight x 45° with depressor with blister

Code

Model

Length

Connections

Dimensions

Weight

06010016

3HDSA/5-5/32V4/BRY

900 mm

5/16” SAE

250 x 250 x 50 mm

0,8 kg

06010010

3HDSA/5-5/56V4/BRY

1500 mm

5/16” SAE

250 x 250 x 50 mm

0,8 kg

Code

Model

Length

Connections

Dimensions

Weight

06010017

3HDSA/5-5/36/BRY

900 mm

5/16” SAE

250 x 250 x 50 mm

0,8 kg

06010018

3HDSA/5-5/60/BRY

1500 mm

5/16” SAE

250 x 250 x 50 mm

0,8 kg

Code

Model

Length

Connections

Dimensions

Weight

06010015

3HDSA/4-4/32V4/BRY

900 mm

1/4” SAE

250 x 250 x 50 mm

0,8 kg

06010011

3HDSA/4-4/56V4/BRY

1500 mm

1/4” SAE

250 x 250 x 50 mm

0,8 kg

Code

Model

Length

Connections

Dimensions

Weight

06010005

3HDSA/4-4/36/BRY

900 mm

1/4” SAE

250 x 250 x 50 mm

0,8 kg

06010003

3HDSA/4-4/48/BRY

1200 mm

1/4” SAE

250 x 250 x 50 mm

0,8 kg

06010004

3HDSA/4-4/60/BRY

1500 mm

1/4” SAE

250 x 250 x 50 mm

0,8 kg

06010002

3HDSA/4-4/72/BRY

1800 mm

1/4” SAE

250 x 250 x 50 mm

0,8 kg

80
