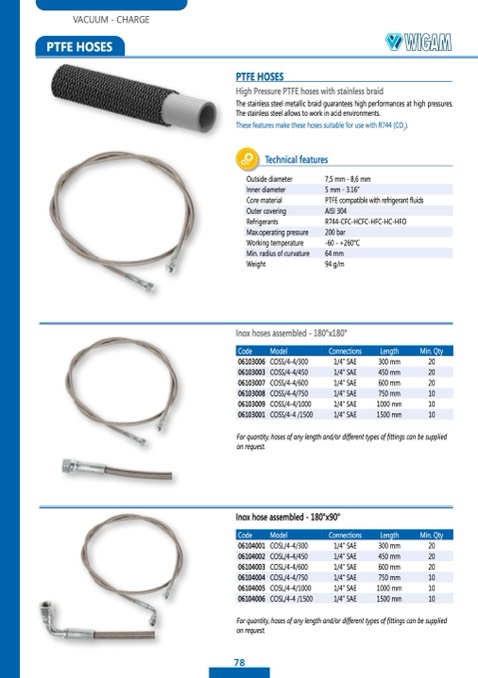

VACUUM - CHARGE

PTFE HOSES

PTFE HOSES

High Pressure PTFE hoses with stainless braid

The stainless steel metallic braid guarantees high performances at high pressures.

The stainless steel allows to work in acid environments.

These features make these hoses suitable for use with R744 (CO

2

).

Technical features

Outside diameter

Core material

Refrigerants

Working temperature

Weight

7,5 mm - 8,6 mm

PTFE compatible with refrigerant fluids

R744-CFC-HCFC-HFC-HC-HFO

-60 - +260°C

94 g/m

Inner diameter

5 mm - 3.16”

Outer covering

AISI 304

Max.operating pressure

200 bar

Min. radius of curvature

64 mm

Inox hoses assembled - 180°x180°

For quantity, hoses of any length and/or different types of fittings can be supplied

on request.

Inox hose assembled - 180°x90°

For quantity, hoses of any length and/or different types of fittings can be supplied

on request.

Code

Model

Connections

Length

Min. Qty

06103006

COSS/4-4/300

1/4” SAE

300 mm

20

06103003

COSS/4-4/450

1/4” SAE

450 mm

20

06103007

COSS/4-4/600

1/4” SAE

600 mm

20

06103008

COSS/4-4/750

1/4” SAE

750 mm

10

06103009

COSS/4-4/1000

1/4” SAE

1000 mm

10

06103001

COSS/4-4 /1500

1/4” SAE

1500 mm

10

Code

Model

Connections

Length

Min. Qty

06104001

COSL/4-4/300

1/4” SAE

300 mm

20

06104002

COSL/4-4/450

1/4” SAE

450 mm

20

06104003

COSL/4-4/600

1/4” SAE

600 mm

20

06104004

COSL/4-4/750

1/4” SAE

750 mm

10

06104005

COSL/4-4/1000

1/4” SAE

1000 mm

10

06104006

COSL/4-4 /1500

1/4” SAE

1500 mm

10

78
