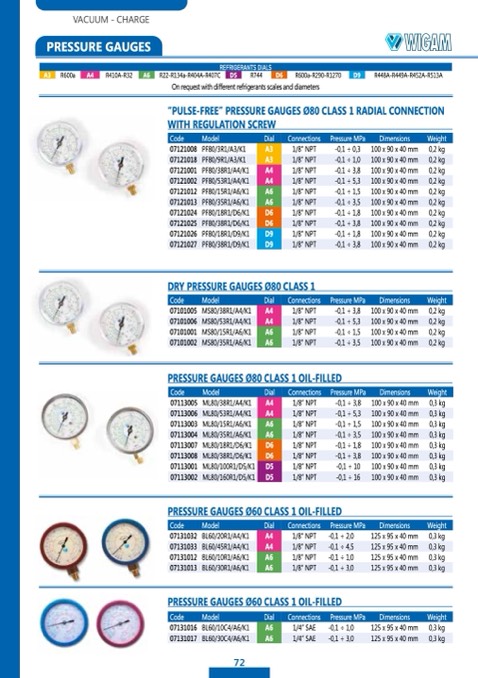

VACUUM - CHARGE
PRESSURE GAUGES
A3 R600a A4
R410A-R32
REFRIGERANTS DIALS
A6 R22-R134a-R404A-R407C D5
R744
D6
R600a-R290-R1270
D9
R448A-R449A-R452A-R513A
On request with different refrigerants scales and diameters
“PULSE-FREE” PRESSURE GAUGES Ø80 CLASS 1 RADIAL CONNECTION
WITH REGULATION SCREW
Code
Model
Dial
Connections
Pressure MPa
Dimensions
Weight
07121008
PF80/3R1/A3/K1
A3
1/8” NPT
-0,1 ÷ 0,3
100 x 90 x 40 mm
0,2 kg
07121018
PF80/9R1/A3/K1
A3
1/8” NPT
-0,1 ÷ 1,0
100 x 90 x 40 mm
0,2 kg
07121001
PF80/38R1/A4/K1
A4
1/8” NPT
-0,1 ÷ 3,8
100 x 90 x 40 mm
0,2 kg
07121002
PF80/53R1/A4/K1
A4
1/8” NPT
-0,1 ÷ 5,3
100 x 90 x 40 mm
0,2 kg
07121012
PF80/15R1/A6/K1
A6
1/8” NPT
-0,1 ÷ 1,5
100 x 90 x 40 mm
0,2 kg
07121013
PF80/35R1/A6/K1
A6
1/8” NPT
-0,1 ÷ 3,5
100 x 90 x 40 mm
0,2 kg
07121024
PF80/18R1/D6/K1
D6
1/8” NPT
-0,1 ÷ 1,8
100 x 90 x 40 mm
0,2 kg
07121025
PF80/38R1/D6/K1
D6
1/8” NPT
-0,1 ÷ 3,8
100 x 90 x 40 mm
0,2 kg
07121026
PF80/18R1/D9/K1
D9
1/8” NPT
-0,1 ÷ 1,8
100 x 90 x 40 mm
0,2 kg
07121027
PF80/38R1/D9/K1
D9
1/8” NPT
-0,1 ÷ 3,8
100 x 90 x 40 mm
0,2 kg
DRY PRESSURE GAUGES Ø80 CLASS 1
PRESSURE GAUGES Ø80 CLASS 1 OIL-FILLED
Code
Model
Dial
Connections
Pressure MPa
Dimensions
Weight
07101005
MS80/38R1/A4/K1
A4
1/8” NPT
-0,1 ÷ 3,8
100 x 90 x 40 mm
0,2 kg
07101006
MS80/53R1/A4/K1
A4
1/8” NPT
-0,1 ÷ 5,3
100 x 90 x 40 mm
0,2 kg
07101001
MS80/15R1/A6/K1
A6
1/8” NPT
-0,1 ÷ 1,5
100 x 90 x 40 mm
0,2 kg
07101002
MS80/35R1/A6/K1
A6
1/8” NPT
-0,1 ÷ 3,5
100 x 90 x 40 mm
0,2 kg
Code
Model
Dial
Connections
Pressure MPa
Dimensions
Weight
07113005
ML80/38R1/A4/K1
A4
1/8” NPT
-0,1 ÷ 3,8
100 x 90 x 40 mm
0,3 kg
07113006
ML80/53R1/A4/K1
A4
1/8” NPT
-0,1 ÷ 5,3
100 x 90 x 40 mm
0,3 kg
07113003
ML80/15R1/A6/K1
A6
1/8” NPT
-0,1 ÷ 1,5
100 x 90 x 40 mm
0,3 kg
07113004
ML80/35R1/A6/K1
A6
1/8” NPT
-0,1 ÷ 3,5
100 x 90 x 40 mm
0,3 kg
07113007
ML80/18R1/D6/K1
D6
1/8” NPT
-0,1 ÷ 1,8
100 x 90 x 40 mm
0,3 kg
07113008
ML80/38R1/D6/K1
D6
1/8” NPT
-0,1 ÷ 3,8
100 x 90 x 40 mm
0,3 kg
07113001
ML80/100R1/D5/K1
D5
1/8” NPT
-0,1 ÷ 10
100 x 90 x 40 mm
0,3 kg
07113002
ML80/160R1/D5/K1
D5
1/8” NPT
-0,1 ÷ 16
100 x 90 x 40 mm
0,3 kg
PRESSURE GAUGES Ø60 CLASS 1 OIL-FILLED
PRESSURE GAUGES Ø60 CLASS 1 OIL-FILLED
Code
Model
Dial
Connections
Pressure MPa
Dimensions
Weight
07131032
BL60/20R1/A4/K1
A4
1/8” NPT
-0,1 ÷ 2,0
125 x 95 x 40 mm
0,3 kg
07131033
BL60/45R1/A4/K1
A4
1/8” NPT
-0,1 ÷ 4,5
125 x 95 x 40 mm
0,3 kg
07131012
BL60/10R1/A6/K1
A6
1/8” NPT
-0,1 ÷ 1,0
125 x 95 x 40 mm
0,3 kg
07131013
BL60/30R1/A6/K1
A6
1/8” NPT
-0,1 ÷ 3,0
125 x 95 x 40 mm
0,3 kg
Code
Model
Dial
Connections
Pressure MPa
Dimensions
Weight
07131016
BL60/10C4/A6/K1
A6
1/4” SAE
-0,1 ÷ 1,0
125 x 95 x 40 mm
0,3 kg
07131017
BL60/30C4/A6/K1
A6
1/4” SAE
-0,1 ÷ 3,0
125 x 95 x 40 mm
0,3 kg
