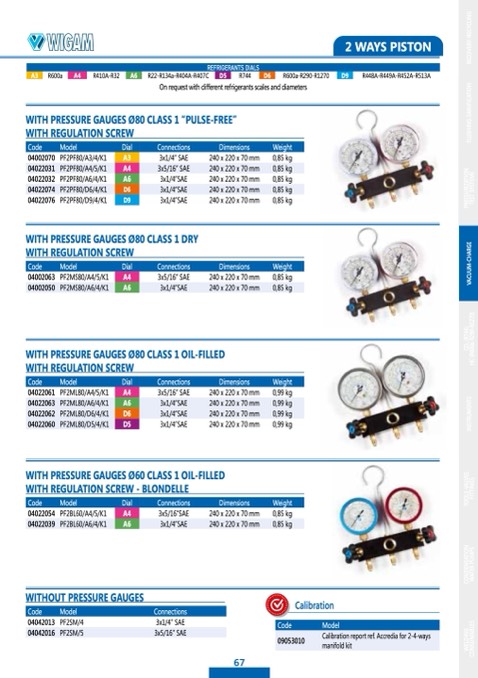

2 WAYS PISTON
A3 R600a A4
R410A-R32 A6 R22-R134a-R404A-R407C D5
R744
D6
R600a-R290-R1270
D9
R448A-R449A-R452A-R513A
On request with different refrigerants scales and diameters
REFRIGERANTS DIALS
WITH PRESSURE GAUGES Ø80 CLASS 1 “PULSE-FREE”
WITH REGULATION SCREW
WITH PRESSURE GAUGES Ø80 CLASS 1 DRY
WITH REGULATION SCREW
WITH PRESSURE GAUGES Ø80 CLASS 1 OIL-FILLED
WITH REGULATION SCREW
WITH PRESSURE GAUGES Ø60 CLASS 1 OIL-FILLED
WITH REGULATION SCREW - BLONDELLE
WITHOUT PRESSURE GAUGES
Calibration
Code
Model
Dial
Connections
Dimensions
Weight
04002070
PF2PF80/A3/4/K1
A3
3x1/4” SAE
240 x 220 x 70 mm
0,85 kg
04022031
PF2PF80/A4/5/K1
A4
3x5/16” SAE
240 x 220 x 70 mm
0,85 kg
04022032
PF2PF80/A6/4/K1
A6
3x1/4”SAE
240 x 220 x 70 mm
0,85 kg
04022074
PF2PF80/D6/4/K1
D6
3x1/4”SAE
240 x 220 x 70 mm
0,85 kg
04022076
PF2PF80/D9/4/K1
D9
3x1/4”SAE
240 x 220 x 70 mm
0,85 kg
Code
Model
Dial
Connections
Dimensions
Weight
04002063
PF2MS80/A4/5/K1
A4
3x5/16” SAE
240 x 220 x 70 mm
0,85 kg
04002050
PF2MS80/A6/4/K1
A6
3x1/4”SAE
240 x 220 x 70 mm
0,85 kg
Code
Model
Dial
Connections
Dimensions
Weight
04022061
PF2ML80/A4/5/K1
A4
3x5/16” SAE
240 x 220 x 70 mm
0,99 kg
04022063
PF2ML80/A6/4/K1
A6
3x1/4”SAE
240 x 220 x 70 mm
0,99 kg
04022062
PF2ML80/D6/4/K1
D6
3x1/4”SAE
240 x 220 x 70 mm
0,99 kg
04022060
PF2ML80/D5/4/K1
D5
3x1/4”SAE
240 x 220 x 70 mm
0,99 kg
Code
Model
Dial
Connections
Dimensions
Weight
04022054
PF2BL60/A4/5/K1
A4
3x5/16”SAE
240 x 220 x 70 mm
0,85 kg
04022039
PF2BL60/A6/4/K1
A6
3x1/4”SAE
240 x 220 x 70 mm
0,85 kg
Code
Model
Connections
04042013
PF2SM/4
3x1/4” SAE
04042016
PF2SM/5
3x5/16” SAE
Code
Model
09053010
Calibration report ref. Accredia for 2-4-ways
manifold kit
