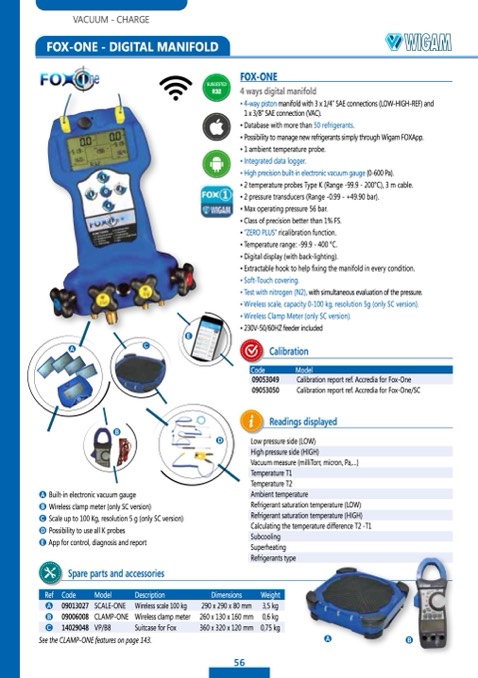

VACUUM - CHARGE
FOX-ONE - DIGITAL MANIFOLD
SUGGESTED
R32
FOX-ONE
4 ways digital manifold
• 4-way piston manifold with 3 x 1/4” SAE connections (LOW-HIGH-REF) and
1 x 3/8” SAE connection (VAC).
• Database with more than 50 refrigerants.
• Possibility to manage new refrigerants simply through Wigam FOXApp.
• 1 ambient temperature probe.
• Integrated data logger.
• High precision built-in electronic vacuum gauge (0-600 Pa).
• 2 temperature probes Type K (Range -99.9 - 200°C), 3 m cable.
• 2 pressure transducers (Range -0.99 - +49.90 bar).
• Max operating pressure 56 bar.
• Class of precision better than 1% FS.
• “ZERO PLUS” ricalibration function.
• Temperature range: -99.9 - 400 °C.
• Digital display (with back-lighting).
• Extractable hook to help fixing the manifold in every condition.
• Soft-Touch covering.
• Test with nitrogen (N2), with simultaneous evaluation of the pressure.
• Wireless scale, capacity 0-100 kg, resolution 5g (only SC version).
• Wireless Clamp Meter (only SC version).
• 230V-50/60HZ feeder included
Calibration
Model
Readings displayed
C
A Built-in electronic vacuum gauge
B Wireless clamp meter (only SC version)
C Scale up to 100 Kg, resolution 5 g (only SC version)
D Possibility to use all K probes
E App for control, diagnosis and report
Spare parts and accessories
E
A
09053049
Calibration report ref. Accredia for Fox-One
09053050
Calibration report ref. Accredia for Fox-One/SC
B
Code
i
D
Low pressure side (LOW)
High pressure side (HIGH)
Vacuum measure (milliTorr, micron, Pa,...)
Temperature T1
Temperature T2
Ambient temperature
Refrigerant saturation temperature (LOW)
Refrigerant saturation temperature (HIGH)
Calculating the temperature difference T2 -T1
Subcooling
Superheating
Refrigerants type
Ref
Code
Model
Description
Dimensions
Weight
A
09013027
SCALE-ONE
Wireless scale 100 kg
290 x 290 x 80 mm
3,5 kg
B
09006008
CLAMP-ONE
Wireless clamp meter
260 x 130 x 160 mm
0,6 kg
C
14029048
VP/B8
Suitcase for Fox
360 x 320 x 120 mm
0,75 kg
See the CLAMP-ONE features on page 143.
56
