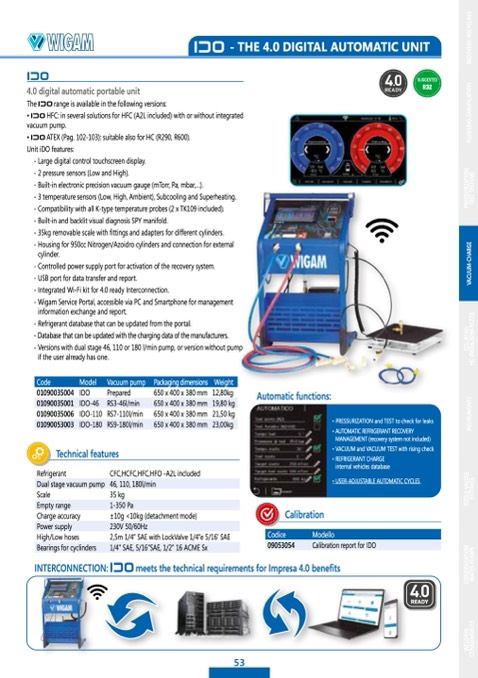

- THE 4.0 DIGITAL AUTOMATIC UNIT
4.0 digital automatic portable unit
The
range is available in the following versions:
•
HFC: in several solutions for HFC (A2L included) with or without integrated
vacuum pump.
•
ATEX (Pag. 102-103): suitable also for HC (R290, R600).
Unit iDO features:
- Large digital control touchscreen display.
- 2 pressure sensors (Low and High).
- Built-in electronic precision vacuum gauge (mTorr, Pa, mbar,
...).
- 3 temperature sensors (Low, High, Ambient), Subcooling and Superheating.
- Compatibility with all K-type temperature probes (2 x TK109 included).
- Built-in and backlit visual diagnosis SPY manifold.
- 35kg removable scale with fittings and adapters for different cylinders.
- Housing for 950cc Nitrogen/Azoidro cylinders and connection for external
cylinder.
- Controlled power supply port for activation of the recovery system.
- USB port for data transfer and report.
- Integrated Wi-Fi kit for 4.0 ready Interconnection.
- Wigam Service Portal, accessible via PC and Smartphone for management
information exchange and report.
- Refrigerant database that can be updated from the portal.
- Database that can be updated with the charging data of the manufacturers.
- Versions with dual stage 46, 110 or 180 l/min pump, or version without pump
if the user already has one.
Technical features
READY
SUGGESTED
R32
Code
01090035004
01090035001
01090035006
01090053003
Model
IDO
IDO-46
IDO-110
IDO-180
Vacuum pump
Prepared
RS3-46l/min
RS7-110l/min
RS9-180l/min
Packaging dimensions
650 x 400 x 380 mm
650 x 400 x 380 mm
650 x 400 x 380 mm
650 x 400 x 380 mm
Weight
12,80kg
19,80 kg
21,50 kg
23,00kg
Automatic functions:
Refrigerant
Scale
Charge accuracy
High/Low hoses
INTERCONNECTION:
CFC,HCFC,HFC,HFO -A2L included
35 kg
±10g <10kg (detachment mode)
2,5m 1/4” SAE with LockValve 1/4”e 5/16’ SAE
• PRESSURIZATION and TEST to check for leaks
• AUTOMATIC REFRIGERANT RECOVERY
MANAGEMENT (recovery system not included)
• VACUUM and VACUUM TEST with rising check
• REFRIGERANT CHARGE
internal vehicles database
• USER-ADJUSTABLE AUTOMATIC CYCLES
Dual stage vacuum pump
46, 110, 180l/min
Empty range
1-350 Pa
Calibration
Power supply
230V 50/60Hz
Codice
Modello
09053054
Calibration report for IDO
Bearings for cyclinders
1/4” SAE, 5/16”SAE, 1/2” 16 ACME Sx
meets the technical requirements for Impresa 4.0 benefits
READY
