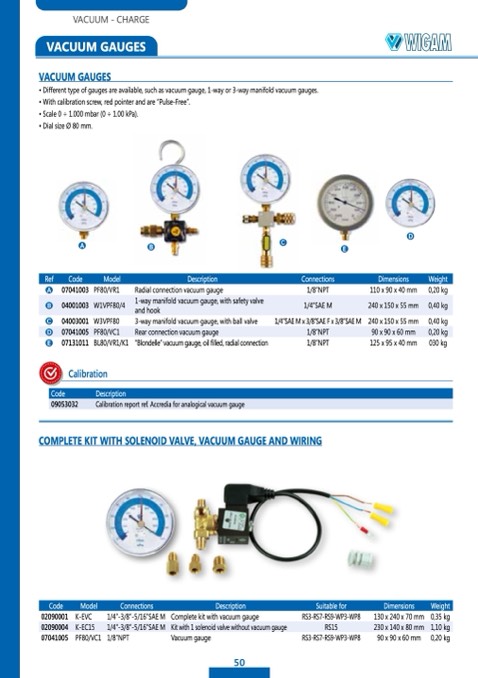

VACUUM - CHARGE

VACUUM GAUGES

VACUUM GAUGES

• Different type of gauges are available, such as vacuum gauge, 1-way or 3-way manifold vacuum gauges.

• With calibration screw, red pointer and are “Pulse-Free”.

• Scale 0 ÷ 1.000 mbar (0 ÷ 1.00 kPa).

• Dial size Ø 80 mm.

A

B

E

C

D

Ref

Code

Model

Description

Connections

Dimensions

Weight

A

07041003

PF80/VR1

Radial connection vacuum gauge

1/8”NPT

110 x 90 x 40 mm

0,20 kg

B

04001003

W1VPF80/4

1-way manifold vacuum gauge, with safety valve

and hook

1/4”SAE M

240 x 150 x 55 mm

0,40 kg

C

04003001

W3VPF80

3-way manifold vacuum gauge, with ball valve

1/4”SAE M x 3/8”SAE F x 3/8”SAE M

240 x 150 x 55 mm

0,40 kg

D

07041005

PF80/VC1

Rear connection vacuum gauge

1/8”NPT

90 x 90 x 60 mm

0,20 kg

E

07131011

BL80/VR1/K1

“Blondelle” vacuum gauge, oil filled, radial connection

1/8”NPT

125 x 95 x 40 mm

030 kg

Calibration

Code

Description

09053032

Calibration report ref. Accredia for analogical vacuum gauge

COMPLETE KIT WITH SOLENOID VALVE, VACUUM GAUGE AND WIRING

Code

Model

Connections

Description

Suitable for

Dimensions

Weight

02090001

K-EVC

1/4”-3/8”-5/16”SAE M

Complete kit with vacuum gauge

RS3-RS7-RS9-WP3-WP8

130 x 240 x 70 mm

0,35 kg

02090004

K-EC15

1/4”-3/8”-5/16”SAE M

Kit with 1 solenoid valve without vacuum gauge

RS15

230 x 140 x 80 mm

1,10 kg

07041005

PF80/VC1

1/8”NPT

Vacuum gauge

RS3-RS7-RS9-WP3-WP8

90 x 90 x 60 mm

0,20 kg

50
