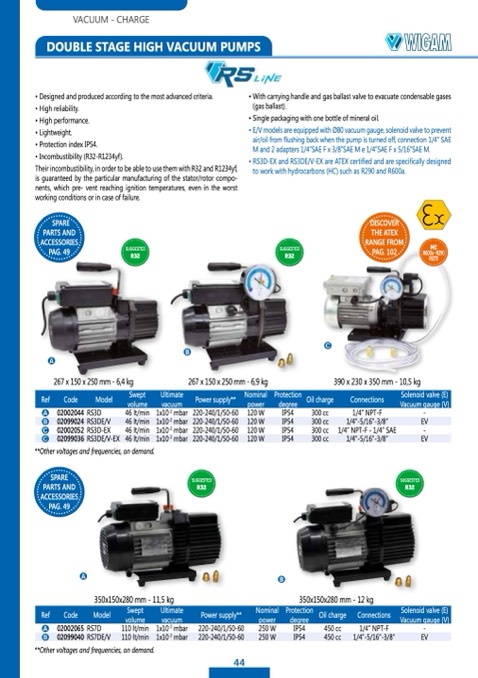

VACUUM - CHARGE
DOUBLE STAGE HIGH VACUUM PUMPS
• Designed and produced according to the most advanced criteria.
• High reliability.
• High performance.
• Lightweight.
• Protection index IP54.
• Incombustibility (R32-R1234yf).
Their incombustibility, in order to be able to use them with R32 and R1234yf,
is guaranteed by the particular manufacturing of the stator/rotor compo-
nents, which pre- vent reaching ignition temperatures, even in the worst
working conditions or in case of failure.
• With carrying handle and gas ballast valve to evacuate condensable gases
(gas ballast).
• Single packaging with one bottle of mineral oil.
• E/V models are equipped with Ø80 vacuum gauge, solenoid valve to prevent
air/oil from flushing back when the pump is turned off, connection 1/4” SAE
M and 2 adapters 1/4”SAE F x 3/8”SAE M e 1/4”SAE F x 5/16”SAE M.
• RS3D-EX and RS3DE/V-EX are ATEX certified and are specifically designed
to work with hydrocarbons (HC) such as R290 and R600a.
DISCOVER
THE ATEX
RANGE FROM
HC
SPARE
PARTS AND
ACCESSORIES
PAG. 49
SUGGESTED
R32
SUGGESTED
R32
B
C
A
267 x 150 x 250 mm - 6,4 kg
**Other voltages and frequencies, on demand.
SPARE
PARTS AND
ACCESSORIES
PAG. 49
A
267 x 150 x 250 mm - 6,9 kg
390 x 230 x 350 mm - 10,5 kg
Ref
Code
Model
Swept
volume
Ultimate
vacuum
Power supply**
Nominal
power
Protection
degree
Oil charge
Connections
Solenoid valve (E)
Vacuum gauge (V)
A
02002044 RS3D
46 lt/min
1x10
-2
mbar
220-240/1/50-60
120 W
IP54
300 cc
1/4” NPT-F
-
B
02099024 RS3DE/V
46 lt/min
1x10
-2
mbar
220-240/1/50-60
120 W
IP54
300 cc
1/4”-5/16”-3/8”
EV
C
02002052 RS3D-EX
46 lt/min
1x10
-2
mbar
220-240/1/50-60
120 W
IP54
300 cc
1/4” NPT-F - 1/4” SAE
-
C
02099036 RS3DE/V-EX
46 lt/min
1x10
-2
mbar
220-240/1/50-60
120 W
IP54
300 cc
1/4”-5/16”-3/8”
EV
SUGGESTED
220-240/1/50-60
220-240/1/50-60
SUGGESTED
R32
R32
350x150x280 mm - 11,5 kg
350x150x280 mm - 12 kg
IP54
450 cc
1/4” NPT-F
IP54
450 cc 1/4”-5/16”-3/8“
**Other voltages and frequencies, on demand.
44
B
PAG. 102
R600a-R290
R1270
Ref
Code
Model
Swept
volume
Ultimate
vacuum
Power supply**
Nominal
power
Protection
degree
Oil charge
Connections
Solenoid valve (E)
Vacuum gauge (V)
A 02002065 RS7D
110 lt/min 1x10
-2
mbar
B 02099040 RS7DE/V
110 lt/min 1x10
-2
mbar
250 W
250 W
-
EV
