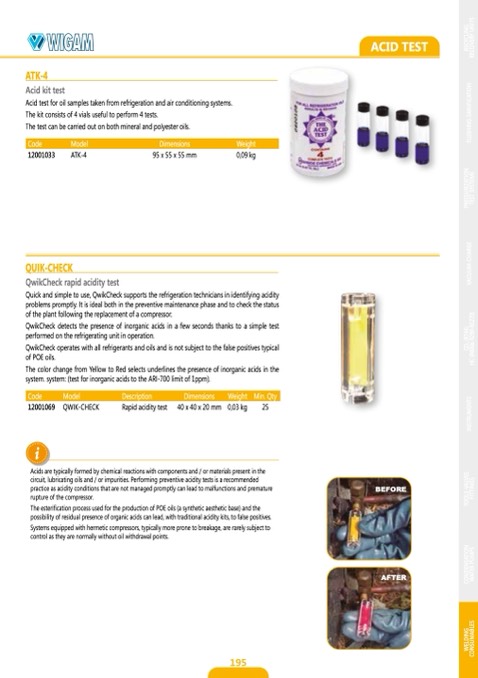

ACID TEST

ATK-4

Acid kit test

Acid test for oil samples taken from refrigeration and air conditioning systems.

The kit consists of 4 vials useful to perform 4 tests.

The test can be carried out on both mineral and polyester oils.

Code

Model

Dimensions

Weight

12001033

ATK-4

95 x 55 x 55 mm

0,09 kg

QUIK-CHECK

QwikCheck rapid acidity test

Quick and simple to use, QwikCheck supports the refrigeration technicians in identifying acidity

problems promptly. It is ideal both in the preventive maintenance phase and to check the status

of the plant following the replacement of a compressor.

QwikCheck detects the presence of inorganic acids in a few seconds thanks to a simple test

performed on the refrigerating unit in operation.

QwikCheck operates with all refrigerants and oils and is not subject to the false positives typical

of POE oils.

The color change from Yellow to Red selects underlines the presence of inorganic acids in the

system. system: (test for inorganic acids to the ARI-700 limit of 1ppm).

i

Acids are typically formed by chemical reactions with components and / or materials present in the

circuit, lubricating oils and / or impurities. Performing preventive acidity tests is a recommended

practice as acidity conditions that are not managed promptly can lead to malfunctions and premature

rupture of the compressor.

The esterification process used for the production of POE oils (a synthetic aesthetic base) and the

possibility of residual presence of organic acids can lead, with traditional acidity kits, to false positives.

Systems equipped with hermetic compressors, typically more prone to breakage, are rarely subject to

control as they are normally without oil withdrawal points.

BEFORE

AFTER

Code

Model

Description

Dimensions

Weight

Min. Qty

12001069

QWIK-CHECK

Rapid acidity test

40 x 40 x 20 mm

0,03 kg

25

195
