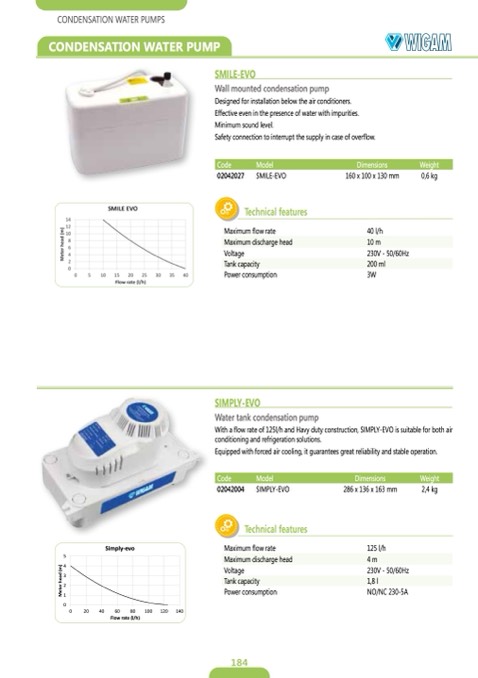

CONDENSATION WATER PUMPS

CONDENSATION WATER PUMP

SMILE-EVO

Wall mounted condensation pump

Designed for installation below the air conditioners.

Effective even in the presence of water with impurities.

Minimum sound level.

Safety connection to interrupt the supply in case of overflow.

Code

Model

Dimensions

Weight

02042027

SMILE-EVO

160 x 100 x 130 mm

0,6 kg

Technical features

Maximum flow rate

Voltage

Power consumption

40 l/h

230V - 50/60Hz

3W

Maximum discharge head

10 m

Tank capacity

200 ml

SIMPLY-EVO

Water tank condensation pump

With a flow rate of 125l/h and Havy duty construction, SIMPLY-EVO is suitable for both air

conditioning and refrigeration solutions.

Equipped with forced air cooling, it guarantees great reliability and stable operation.

Technical features

Maximum flow rate

125 l/h

Voltage

230V - 50/60Hz

Power consumption

Code

Model

Dimensions

Weight

02042004

SIMPLY-EVO

286 x 136 x 163 mm

2,4 kg

5

4

3

2

1

0

Simply-evo

0

20

40

60

80

100 120 140

Flow rate (l/h)

M

e

t

e

r

h

e

a

d

(

m

)

Maximum discharge head

4m

Tank capacity

184

1,8 l

NO/NC 230-5A
