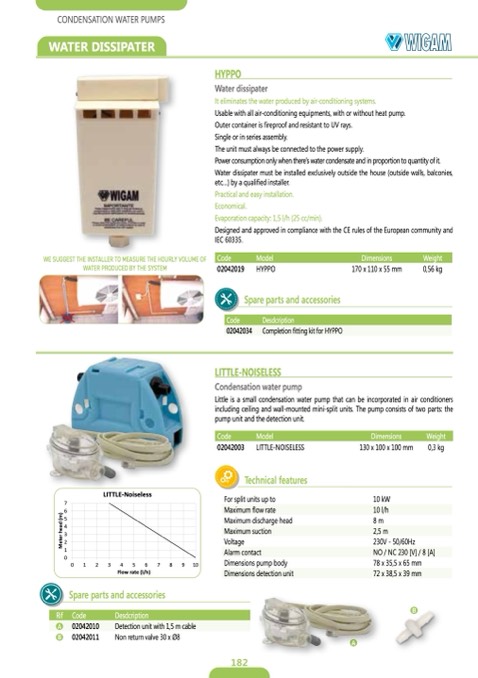

CONDENSATION WATER PUMPS

WATER DISSIPATER

Code

Model

Dimensions

Weight

02042019

HYPPO

170 x 110 x 55 mm

0,56 kg

WE SUGGEST THE INSTALLER TO MEASURE THE HOURLY VOLUME OF

WATER PRODUCED BY THE SYSTEM

HYPPO

Water dissipater

It eliminates the water produced by air-conditioning systems.

Usable with all air-conditioning equipments, with or without heat pump.

Outer container is fireproof and resistant to UV rays.

Single or in series assembly.

The unit must always be connected to the power supply.

Power consumption only when there’s water condensate and in proportion to quantity of it.

Water dissipater must be installed exclusively outside the house (outside walls, balconies,

etc...) by a qualified installer.

Practical and easy installation.

Economical.

Evaporation capacity: 1,5 l/h (25 cc/min).

Designed and approved in compliance with the CE rules of the European community and

IEC 60335.

Spare parts and accessories

LITTLE-NOISELESS

Condensation water pump

Little is a small condensation water pump that can be incorporated in air conditioners

including ceiling and wall-mounted mini-split units. The pump consists of two parts: the

pump unit and the detection unit.

Code

Desdcription

02042034

Completion fitting kit for HYPPO

7

6

5

4

3

2

1

0

LITTLE-Noiseless

0

1

2

3

4

5

6

7

8

9 10

Flow rate (l/h)

M

e

t

e

r

h

e

a

d

(

m

)

Code

Model

Dimensions

Weight

02042003

LITTLE-NOISELESS

130 x 100 x 100 mm

0,3 kg

Technical features

For split units up to

Maximum discharge head

Voltage

Dimensions pump body

10 kW

8 m

230V - 50/60Hz

78 x 35,5 x 65 mm

Maximum flow rate

10 l/h

Maximum suction

2,5 m

Alarm contact

NO / NC 230 [V] / 8 [A]

Dimensions detection unit

72 x 38,5 x 39 mm

Spare parts and accessories

Rif

Code

Desdcription

A

02042010

Detection unit with 1,5 m cable

B

02042011

Non return valve 30 x Ø8

182

A

B
