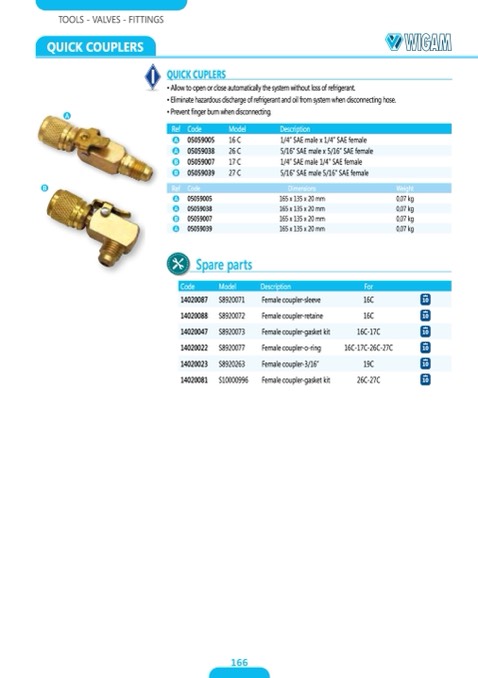

TOOLS - VALVES - FITTINGS

QUICK COUPLERS

QUICK CUPLERS

• Allow to open or close automatically the system without loss of refrigerant.

• Eliminate hazardous discharge of refrigerant and oil from system when disconnecting hose.

• Prevent finger burn when disconnecting.

Ref Code

Dimensions

Weight

Spare parts

A

B

Ref

Code

Model

Description

A

05059005

16 C

1/4” SAE male x 1/4” SAE female

A

05059038

26 C

5/16” SAE male x 5/16” SAE female

B

05059007

17 C

1/4” SAE male 1/4” SAE female

B

05059039

27 C

5/16” SAE male 5/16” SAE female

A

05059005

165 x 135 x 20 mm

0,07 kg

A

05059038

165 x 135 x 20 mm

0,07 kg

B

05059007

165 x 135 x 20 mm

0,07 kg

A

05059039

165 x 135 x 20 mm

0,07 kg

Code

Model

Description

For

14020087

S8920071

Female coupler-sleeve

16C

10

14020088

S8920072

Female coupler-retaine

16C

10

14020047

S8920073

Female coupler-gasket kit

16C-17C

10

14020022

S8920077

Female coupler-o-ring

16C-17C-26C-27C

10

14020023

S8920263

Female coupler-3/16”

19C

10

14020081

S10000996

Female coupler-gasket kit

26C-27C

10

166
