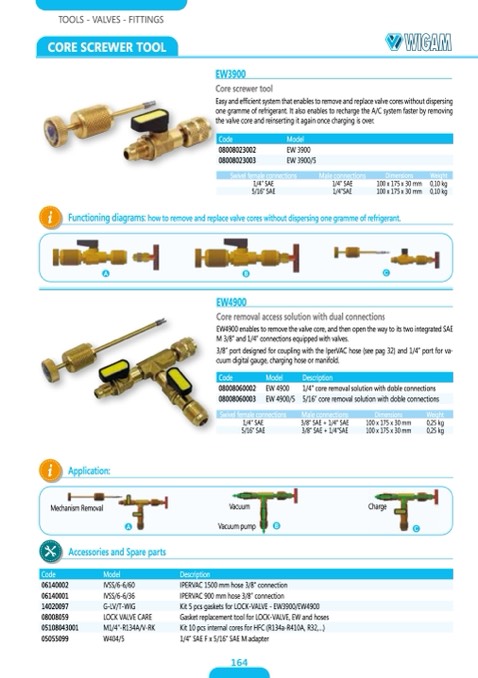

TOOLS - VALVES - FITTINGS

CORE SCREWER TOOL

EW3900

Core screwer tool

Easy and efficient system that enables to remove and replace valve cores without dispersing

one gramme of refrigerant. It also enables to recharge the A/C system faster by removing

the valve core and reinserting it again once charging is over.

Code

Model

08008023002

EW 3900

08008023003

EW 3900/5

Swivel female connections

1/4” SAE

5/16” SAE

Male connections

1/4” SAE

1/4”SAE

Dimensions

100 x 175 x 30 mm

100 x 175 x 30 mm

Weight

0,10 kg

0,10 kg

i

Functioning diagrams: how to remove and replace valve cores without dispersing one gramme of refrigerant.

A

B

C

EW4900

Core removal access solution with dual connections

EW4900 enables to remove the valve core, and then open the way to its two integrated SAE

M 3/8” and 1/4” connections equipped with valves.

3/8” port designed for coupling with the IperVAC hose (see pag 32) and 1/4” port for va-

cuum digital gauge, charging hose or manifold.

Code

Model

Description

08008060002

EW 4900

1/4” core removal solution with doble connections

08008060003

EW 4900/5

5/16” core removal solution with doble connections

Swivel female connections

1/4” SAE

5/16” SAE

Vacuum

Vacuum pump

B

Male connections

3/8” SAE + 1/4” SAE

3/8” SAE + 1/4”SAE

Dimensions

100 x 175 x 30 mm

100 x 175 x 30 mm

Charge

Weight

0,25 kg

0,25 kg

i

Mechanism Removal

Application:

Accessories and Spare parts

A

C

Code

Model

Description

06140002

IVSS/6-6/60

IPERVAC 1500 mm hose 3/8” connection

06140001

IVSS/6-6/36

IPERVAC 900 mm hose 3/8” connection

14020097

G-LV/T-WIG

Kit 5 pcs gaskets for LOCK-VALVE - EW3900/EW4900

08008059

LOCK VALVE CARE

Gasket replacement tool for LOCK-VALVE, EW and hoses

05108043001

M1/4"-R134A/V-RK

Kit 10 pcs internal cores for HFC (R134a-R410A, R32,...)

05055099

W404/5

1/4” SAE F x 5/16” SAE M adapter
