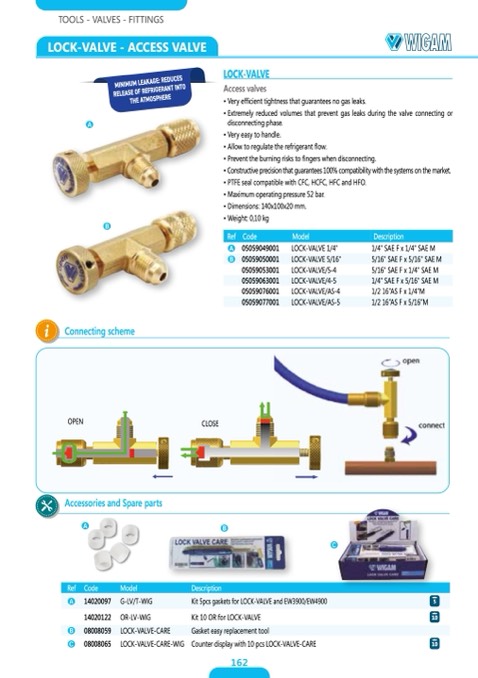

TOOLS - VALVES - FITTINGS

LOCK-VALVE - ACCESS VALVE

MINIMUM LEAKAGE: REDUCES

RELEASE OF REFRIGERANT INTO

THE ATMOSPHERE

i

Connecting scheme

OPEN

Accessories and Spare parts

A

LOCK-VALVE

Access valves

• Very efficient tightness that guarantees no gas leaks.

• Extremely reduced volumes that prevent gas leaks during the valve connecting or

disconnecting phase.

• Very easy to handle.

• Allow to regulate the refrigerant flow.

• Prevent the burning risks to fingers when disconnecting.

• Constructive precision that guarantees 100% compatibility with the systems on the market.

• PTFE seal compatible with CFC, HCFC, HFC and HFO.

• Maximum operating pressure 52 bar.

• Dimensions: 140x100x20 mm.

• Weight: 0,10 kg

A

B

Ref

Code

Model

Description

A

05059049001

LOCK-VALVE 1/4"

1/4" SAE F x 1/4" SAE M

B

05059050001

LOCK-VALVE 5/16"

5/16" SAE F x 5/16" SAE M

05059053001

LOCK-VALVE/5-4

5/16" SAE F x 1/4" SAE M

05059063001

LOCK-VALVE/4-5

1/4" SAE F x 5/16" SAE M

05059076001

LOCK-VALVE/AS-4

1/2 16”AS F x 1/4”M

05059077001

LOCK-VALVE/AS-5

1/2 16”AS F x 5/16”M

CLOSE

B

C

Ref

Code

Model

Description

A

14020097

G-LV/T-WIG

Kit 5pcs gaskets for LOCK-VALVE and EW3900/EW4900

5

14020122

OR-LV-WIG

Kit 10 OR for LOCK-VALVE

10

B

08008059

LOCK-VALVE-CARE

Gasket easy replacement tool

C

08008065

LOCK-VALVE-CARE-WIG

Counter display with 10 pcs LOCK-VALVE-CARE

10

162
