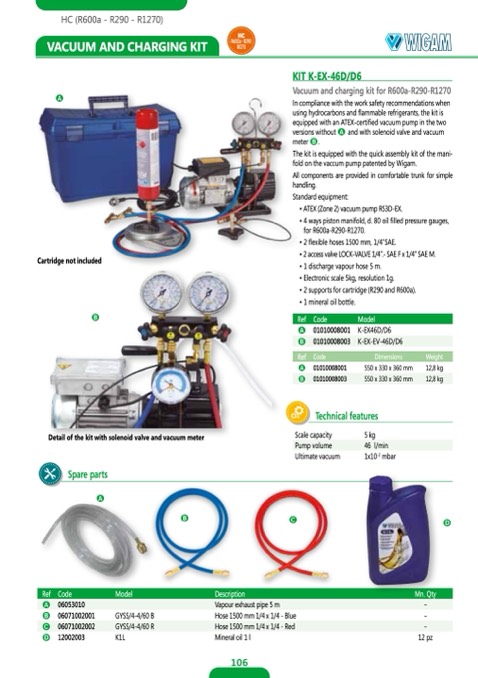

HC (R600a - R290 - R1270)

VACUUM AND CHARGING KIT

A

HC

R600a-R290

R1270

Cartridge not included

B

KIT K-EX-46D/D6

Vacuum and charging kit for R600a-R290-R1270

In compliance with the work safety recommendations when

using hydrocarbons and flammable refrigerants, the kit is

equipped with an ATEX-certified vacuum pump in the two

versions without A and with solenoid valve and vacuum

meter B.

The kit is equipped with the quick assembly kit of the mani-

fold on the vaccum pump patented by Wigam.

All components are provided in comfortable trunk for simple

handling.

Standard equipment:

• ATEX (Zone 2) vacuum pump RS3D-EX.

• 4 ways piston manifold, d. 80 oil filled pressure gauges,

for R600a-R290-R1270.

• 2 flexible hoses 1500 mm, 1/4”SAE.

• 2 access valve LOCK-VALVE 1/4”.- SAE F x 1/4” SAE M.

• 1 discharge vapour hose 5 m.

• Electronic scale 5kg, resolution 1g.

• 2 supports for cartridge (R290 and R600a).

• 1 mineral oil bottle.

Ref

Code

Model

A

01010008001

K-EX46D/D6

B

01010008003

K-EX-EV-46D/D6

Ref

Code

Dimensions

Weight

A

01010008001

550 x 330 x 360 mm

12,8 kg

B

01010008003

550 x 330 x 360 mm

12,8 kg

Technical features

Detail of the kit with solenoid valve and vacuum meter

Spare parts

A

Scale capacity

Ultimate vacuum

5 kg

1x10

-2

mbar

Pump volume

46 l/min

Ref

A

B

C

Code

06053010

06071002001

06071002002

Model

GYSS/4-4/60 B

GYSS/4-4/60 R

B

Description

Vapour exhaust pipe 5 m

Hose 1500 mm 1/4 x 1/4 - Blue

Hose 1500 mm 1/4 x 1/4 - Red

C

Mn. Qty

-

-

-

D

D 12002003

K1L

Mineral oil 1 l

12 pz
