HC
R600a-R290
R1270

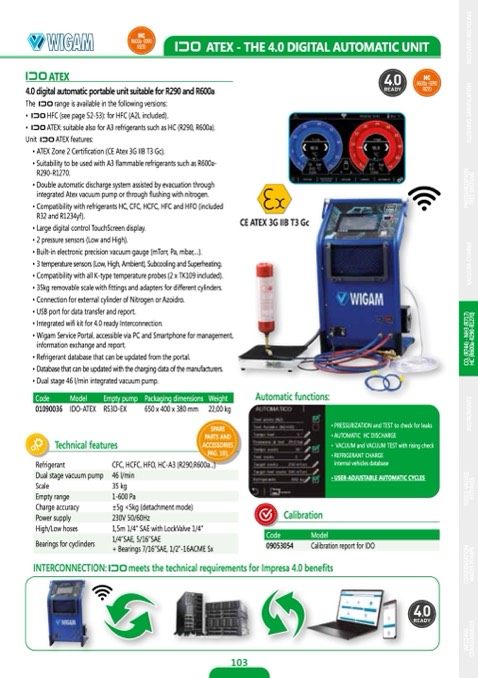

ATEX - THE 4.0 DIGITAL AUTOMATIC UNIT
The
•
•
Unit
range is available in the following versions:
HFC (see page 52-53): for HFC (A2L included).
ATEX: suitable also for A3 refrigerants such as HC (R290, R600a).
ATEX features:
ATEX
HC
R600a-R290
READY
R1270
4.0 digital automatic portable unit suitable for R290 and R600a
• ATEX Zone 2 Certification (CE Atex 3G IIB T3 Gc).
• Suitability to be used with A3 flammable refrigerants such as R600a-
R290-R1270.
• Double automatic discharge system assisted by evacuation through
integrated Atex vacuum pump or through flushing with nitrogen.
• Compatibility with refrigerants HC, CFC, HCFC, HFC and HFO (included
R32 and R1234yf).
• Large digital control TouchScreen display.
• 2 pressure sensors (Low and High).
• Built-in electronic precision vacuum gauge (mTorr, Pa, mbar,...).
• 3 temperature sensors (Low, High, Ambient), Subcooling and Superheating.
• Compatibility with all K-type temperature probes (2 x TK109 included).
• 35kg removable scale with fittings and adapters for different cylinders.
• Connection for external cylinder of Nitrogen or Azoidro.
• USB port for data transfer and report.
• Integrated wifi kit for 4.0 ready Interconnection.
• Wigam Service Portal, accessible via PC and Smartphone for management,
information exchange and report.
• Refrigerant database that can be updated from the portal.
• Database that can be updated with the charging data of the manufacturers.
• Dual stage 46 l/min integrated vacuum pump.
CE ATEX 3G IIB T3 Gc
Automatic functions:
Code
Model
Empty pump
Packaging dimensions
Weight
01090036
IDO-ATEX
RS3D-EX
650 x 400 x 380 mm
22,00 kg
Technical features
PAG. 101
• PRESSURIZATION and TEST to check for leaks
• AUTOMATIC HC DISCHARGE
• VACUUM and VACUUM TEST with rising check
• REFRIGERANT CHARGE
internal vehicles database
• USER-ADJUSTABLE AUTOMATIC CYCLES
Calibration
SPARE
PARTS AND
ACCESSORIES
Refrigerant
Scale
Charge accuracy
High/Low hoses
INTERCONNECTION:
CFC, HCFC, HFO, HC-A3 (R290,R600a...)
35 kg
±5g <5kg (detachment mode)
1,5m 1/4” SAE with LockValve 1/4”
Dual stage vacuum pump
46 l/min
Empty range
1-600 Pa
Power supply
230V 50/60Hz
Code
Model
09053054
Calibration report for IDO
Bearings for cyclinders
1/4”SAE, 5/16”SAE
+ Bearings 7/16”SAE, 1/2”-16ACME Sx
meets the technical requirements for Impresa 4.0 benefits
103
