Rubinetteria

A7192AA

A7192U4

Cerafine O

G 1/2

G 1/2

Single lever shower mixer built-in cpl.

G 1/2

chrome

Matt Black/ chrome

A7192AA

Miscelatore incasso doccia

51 - 70

49 - 68

max.

+40

17

1

Body ( shower only )

2

Cartridge Ø 47

3

ECO-Kit

4

Cylindrical screw

5

Fixation ring

6

Plaster guard

7

Cylindrical screw M4x10

8

Cap + pos. 5

9

Seal ring

10

Escut. holder cpl.

pos. Descrizione

2

Cartuccia Ø47 mm

3

Kit EKO

4

Viti fissaggio cartuccia

5

O-Ring

8

Cappuccio

10

Rosone

11

Set O-Ring

12

Vite per maniglia

Chrome = AA

Matt Black/Chrome = U4

Example spare part order:

A 961 760 AA in Chrome

+20

18

Matt Black = XG

Pos. Description

15

16

14

1

9

1

4

5

6

13

Part-

Number

A 960 500 NU

A 860 700 NU

A 963 176 NU

A 963 298 NU

A 961 760 AA

A 860 899 NU*

Qty.

1 pcs

1 Set

3 pcs

1 pcs

1 Set

1 Set

Pos. Description

Part-

Number

A 961 649 NU*

A 960 559 NU

A 860 946 XX

A 861 414 XX

A 963 309 NU

B 960 473 AA*

A 961 168 AA

A 961 462 AA

A 6677 AA

Qty.

1 Set

1 pcs

1 pcs

1 Set

1 pcs

1 pcs

1 Set

1 Set

1 Set

Codici

A860946AA

A861414AA

A963309NU

B960473AA

A961168AA

A961462AA

A6677AA

8

9

10

7

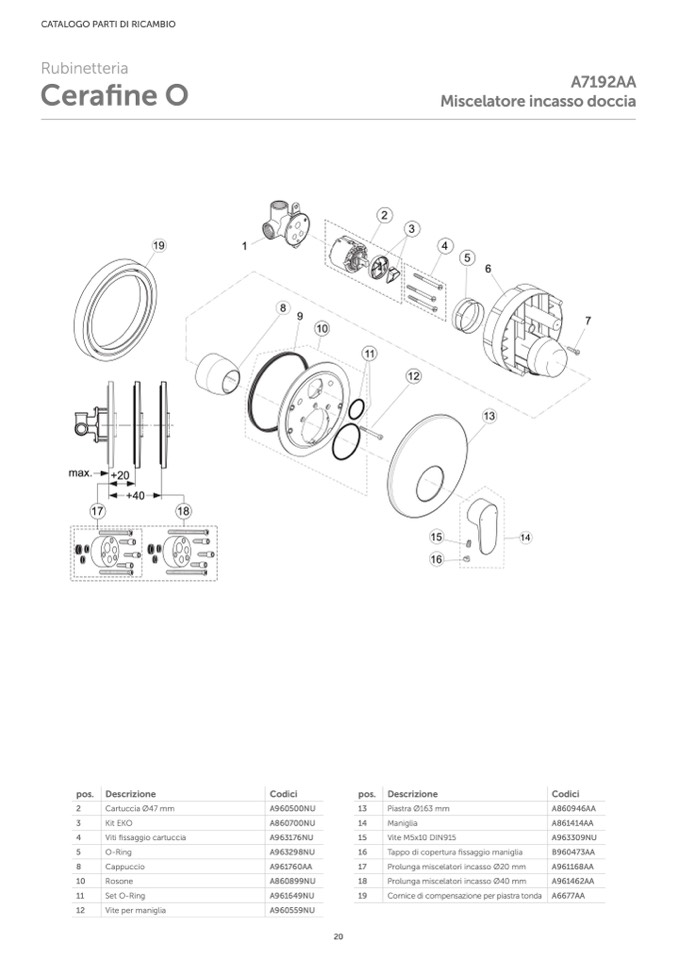

CeraFine Model O

Codici

A960500NU

A860700NU

A963176NU

A963298NU

A961760AA

A860899NU

A961649NU

A960559NU

*Universal set (not all parts needed)

pos. Descrizione

Ø163

38 - 57

CATALOGO PARTI DI RICAMBIO

48

2

3

11

12

11

O - ring set

12

Cylindrical screw M4x30

13

Escutcheon Ø 163 Shower

14

Lever cpl. with Logo ISI

15

Thread pin M5x10 DIN 915

16

Cap for handle

17

Extension kit 20mm

18

Extension kit 40mm

19

Distanzframe 20mm

C

e

r

a

F

i

n

e

M

o

d

e

l

O

9

1

3

7

9

,

5

20

13

Piastra Ø163 mm

14

Maniglia

15

Vite M5x10 DIN915

16

Tappo di copertura fissaggio maniglia

17

Prolunga miscelatori incasso Ø20 mm

18

Prolunga miscelatori incasso Ø40 mm

19

Cornice di compensazione per piastra tonda
