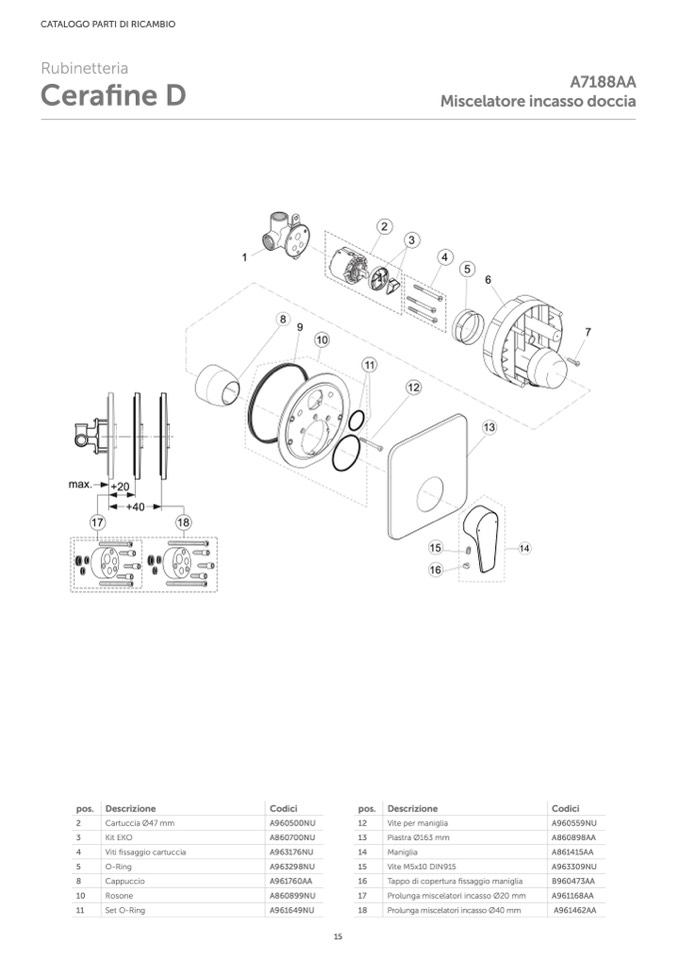

CATALOGO PARTI DI RICAMBIO

Produced from: Jan. 2019

Rubinetteria

A7188AA

Miscelatore incasso doccia

51 - 70

56 - 75

Cerafine D

G 1/2

max.

+40

17

+20

S ingle

chrome

Grey Pearl/Chrome

18

Grey Pearl = U6

Pos. Description

15

16

14

Chrome = AA

Grey Perl/Chrome = U8

Example spare part order:

A 961 760 AA in Chrome

1

Body ( shower only )

2

Cartridge Ø 47

3

ECO-Kit

4

Cylindrical screw

5

Fixation ring

6

Plaster guard

7

Cylindrical screw M4x10

8

Cap + pos. 5

9

Seal ring

10

Escut. holder cpl.

pos. Descrizione

2

Cartuccia Ø47 mm

3

Kit EKO

4

Viti fissaggio cartuccia

5

O-Ring

8

Cappuccio

10

Rosone

11

Set O-Ring

11

O - ring set

12

Cylindrical screw M4x30

13

Escutcheon □ 163 Shower

14

Lever cpl. with Logo ISI

15

Thread pin M5x10 DIN 915

16

Cap for handle

17

Extension kit 20mm

18

Extension kit 40mm

lever shower mixer built-in cpl.

CeraFine Model D

A7188..

Part-

Number

A 960 500 NU

A 860 700 NU

A 963 176 NU

A 963 298 NU

A 961 760 AA

A 860 899 NU*

Qty.

1 pcs

1 Set

3 pcs

1 pcs

1 Set

1 Set

Pos. Description

Part-

Number

A 961 649 NU*

A 960 559 NU

A 860 898 XX

A 861 415 XX

A 963 309 NU

B 960 473 AA*

A 961 168 AA

A 961 462 AA

Qty.

1 Set

1 pcs

1 pcs

1 Set

1 pcs

1 pcs

1 Set

1 Set

Codici

A960559NU

A860898AA

A861415AA

A963309NU

B960473AA

A961168AA

A961462AA

A7188AA

A7188U8

G 1/2

G 1/2

1

4

5

6

13

8

9

10

7

CeraFine Model D

*Universal set (not all parts needed)

pos. Descrizione

12

Vite per maniglia

13

Piastra Ø163 mm

14

Maniglia

15

Vite M5x10 DIN915

16

Tappo di copertura fissaggio maniglia

17

Prolunga miscelatori incasso Ø20 mm

18

Prolunga miscelatori incasso Ø40 mm

Codici

A960500NU

A860700NU

A963176NU

A963298NU

A961760AA

A860899NU

A961649NU

15

□163
