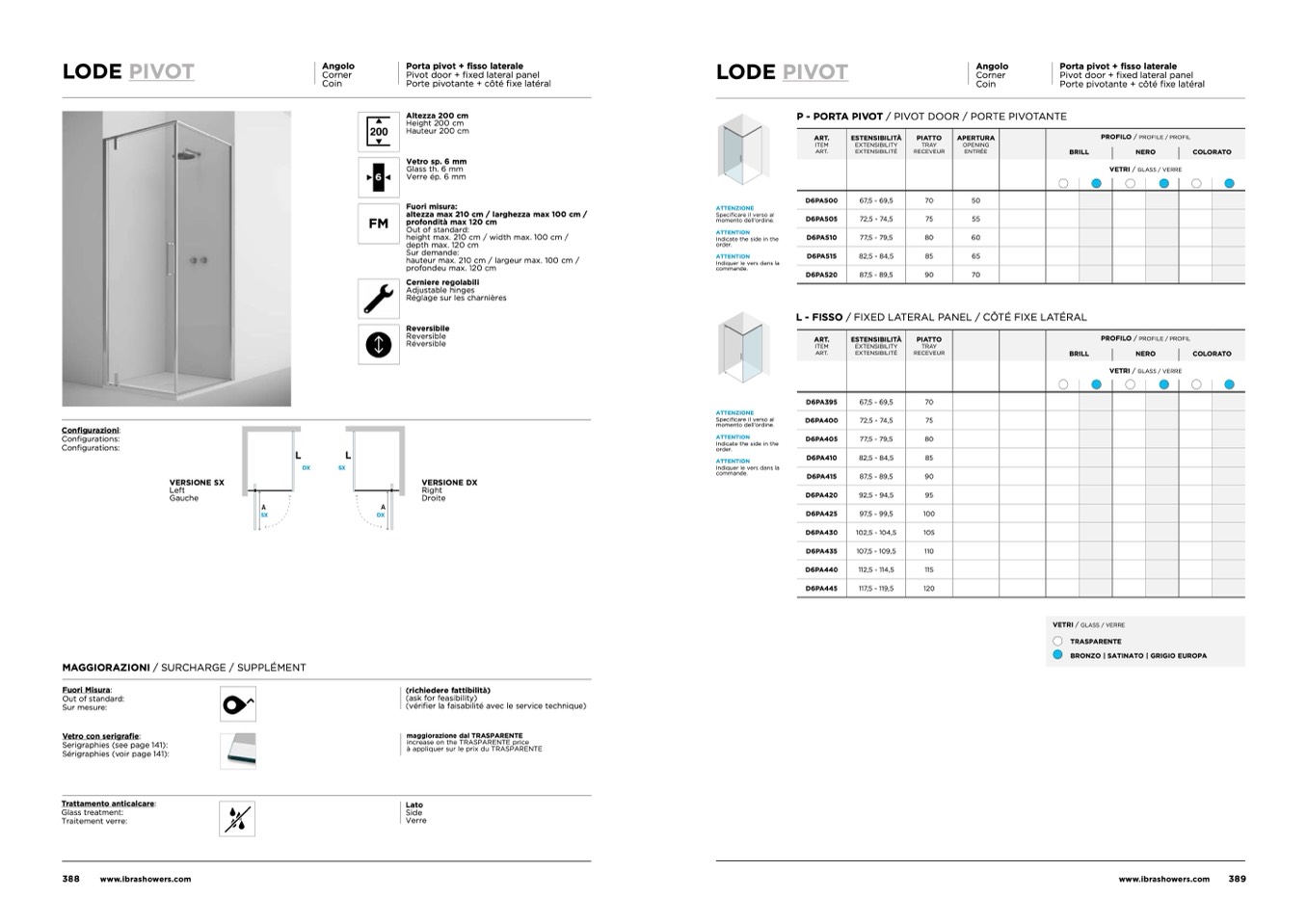

LODE PIVOT

Angolo

Corner

Coin

Porta pivot + fisso laterale

Pivot door + fixed lateral panel

Porte pivotante + côté fixe latéral

Altezza 200 cm

Height 200 cm

Hauteur 200 cm

Vetro sp. 6 mm

Glass th. 6 mm

Verre ép. 6 mm

Fuori misura:

altezza max 210 cm / larghezza max 100 cm /

profondità max 120 cm

Out of standard:

height max. 210 cm / width max. 100 cm /

depth max. 120 cm

Sur demande:

hauteur max. 210 cm / largeur max. 100 cm /

profondeu max. 120 cm

Cerniere regolabili

Adjustable hinges

Réglage sur les charnières

Reversibile

Reversible

Réversible

VERSIONE DX

Right

Droite

LODE PIVOT

P - PORTA PIVOT / PIVOT DOOR / PORTE PIVOTANTE

Angolo

Porta pivot + fisso laterale

Corner

Pivot door + fixed lateral panel

Coin

Porte pivotante + côté fixe latéral

ART.

ITEM

ART.

ESTENSIBILITÀ

EXTENSIBILITY

EXTENSIBILITÉ

PIATTO

TRAY

RECEVEUR

APERTURA

OPENING

ENTRÉE

PROFILO / PROFILE / PROFIL

BRILL

NERO

COLORATO

VETRI / GLASS / VERRE

FM

ATTENZIONE

Specificare il verso al

momento dell’ordine.

ATTENTION

Indicate the side in the

order.

D6PA500

D6PA505

D6PA510

67,5 - 69,5

72,5 - 74,5

77,5 - 79,5

82,5 - 84,5

87,5 - 89,5

70

50

75

55

80

60

85

65

90

70

ATTENTION

D6PA515

Indiquer le vers dans la

commande.

D6PA520

L - FISSO / FIXED LATERAL PANEL / CÔTÉ FIXE LATÉRAL

ART.

ITEM

ART.

ESTENSIBILITÀ

EXTENSIBILITY

EXTENSIBILITÉ

PIATTO

TRAY

RECEVEUR

PROFILO / PROFILE / PROFIL

BRILL

NERO

COLORATO

ATTENZIONE

Specificare il verso al

momento dell’ordine.

D6PA395

D6PA400

67,5 - 69,5

70

72,5 - 74,5

75

77,5 - 79,5

80

82,5 - 84,5

85

87,5 - 89,5

90

92,5 - 94,5

95

97,5 - 99,5

100

102,5 - 104,5

105

107,5 - 109,5

110

112,5 - 114,5

115

117,5 - 119,5

120

VETRI / GLASS / VERRE

Configurazioni:

Configurations:

Configurations:

ATTENTION

D6PA405

Indicate the side in the

order.

DX

SX

ATTENTION

Indiquer le vers dans la

commande.

D6PA410

D6PA415

D6PA420

D6PA425

D6PA430

D6PA435

D6PA440

D6PA445

VERSIONE SX

Left

Gauche

SX

DX

MAGGIORAZIONI / SURCHARGE / SUPPLÉMENT

Fuori Misura:

Out of standard:

Sur mesure:

Vetro con serigrafie:

Serigraphies (see page 141):

Sérigraphies (voir page 141):

Trattamento anticalcare:

Glass treatment:

Traitement verre:

(richiedere fattibilità)

(ask for feasibility)

(vérifier la faisabilité avec le service technique)

maggiorazione dal TRASPARENTE

increase on the TRASPARENTE price

à appliquer sur le prix du TRASPARENTE

Lato

Side

Verre

VETRI / GLASS / VERRE

TRASPARENTE

BRONZO | SATINATO | GRIGIO EUROPA

388
