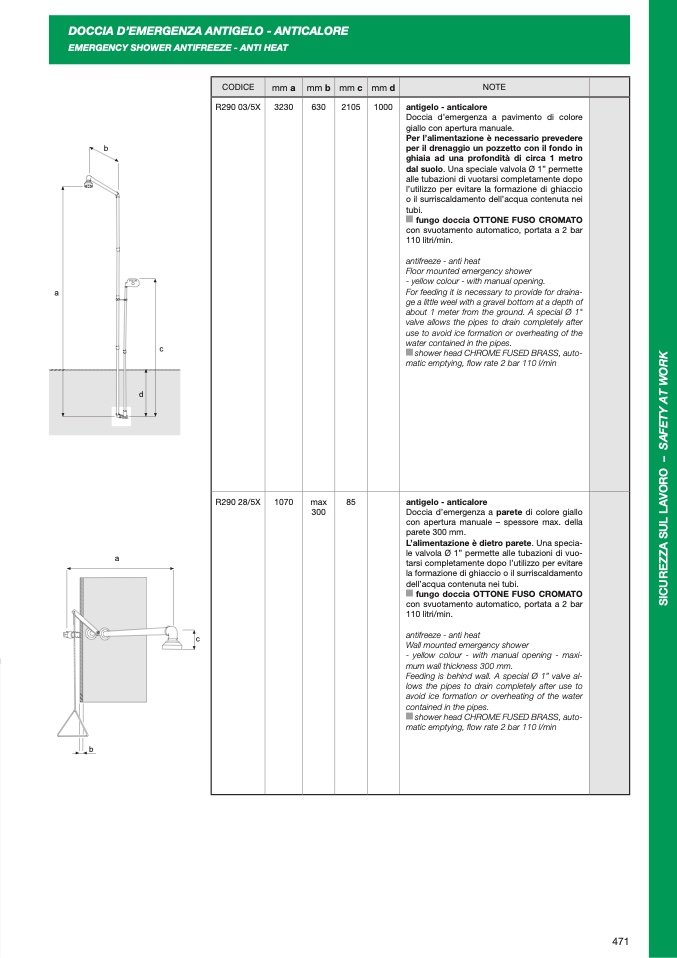

DOCCIA D’EMERGENZA ANTIGELO - ANTICALORE
EMERGENCY SHOWER ANTIFREEZE - ANTI HEAT
CODICE
mm a
mm b
mm c
mm d
NOTE
R290 03/5X
3230
630
2105
1000
antigelo - anticalore
Doccia d’emergenza a pavimento di colore
giallo con apertura manuale.
Per l’alimentazione è necessario prevedere
per il drenaggio un pozzetto con il fondo in
ghiaia ad una profondità di circa 1 metro
dal suolo. Una speciale valvola Ø 1” permette
alle tubazioni di vuotarsi completamente dopo
l’utilizzo per evitare la formazione di ghiaccio
o il surriscaldamento dell’acqua contenuta nei
tubi.
fungo doccia OTTONE FUSO CROMATO
con svuotamento automatico, portata a 2 bar
110 litri/min.
antifreeze - anti heat
Floor mounted emergency shower
- yellow colour - with manual opening.
For feeding it is necessary to provide for draina-
ge a little weel with a gravel bottom at a depth of
about 1 meter from the ground. A special Ø 1"
valve allows the pipes to drain completely after
use to avoid ice formation or overheating of the
water contained in the pipes.
shower head CHROME FUSED BRASS, auto-
matic emptying, flow rate 2 bar 110 l/min
R290 28/5X
1070
max
300
85
antigelo - anticalore
Doccia d’emergenza a parete di colore giallo
con apertura manuale – spessore max. della
parete 300 mm.
L’alimentazione è dietro parete. Una specia-
le valvola Ø 1” permette alle tubazioni di vuo-
tarsi completamente dopo l’utilizzo per evitare
la formazione di ghiaccio o il surriscaldamento
dell’acqua contenuta nei tubi.
fungo doccia OTTONE FUSO CROMATO
con svuotamento automatico, portata a 2 bar
110 litri/min.
antifreeze - anti heat
Wall mounted emergency shower
- yellow colour - with manual opening - maxi-
mum wall thickness 300 mm.
Feeding is behind wall. A special Ø 1” valve al-
lows the pipes to drain completely after use to
avoid ice formation or overheating of the water
contained in the pipes.
shower head CHROME FUSED BRASS, auto-
matic emptying, flow rate 2 bar 110 l/min
