CODICE
mm a
mm b
mm c
NOTE
823 01
823 02
823 03
270
300
350
250
300
350
Corpo e maniglie Z in ottone lucidato e cromato – vitoni con
dischi ceramici rotazione a 90° – bocca orientabile Ø 20 con
rompigetto – foratura mm 22 – interasse mm 155 – portata a 3
bar 55 litri/minuto – rosetta Ø 50
Ceramic cartridge 90°
22 mm hole
swivel spout Ø 20
wheelbase 155 mm
flow rate 3 bar 55 l/min.
823 01/2
823 02/2
823 03/2
305
335
385
250
300
350
Come art. precedente con prolunghe mm 60
Come art. precedente con prolunghe mm 60
Come art. precedente con prolunghe mm 60
Tap with 60 mm extension
b
b
b
b
b
b
b
a
a
a
a
a
a
823 11
823 12
823 13
270
300
350
250
300
350
Corpo e maniglie Z in ottone lucidato e cromato – vitoni a ba-
gno d’olio – bocca orientabile Ø 20 – caratteristiche come art.
precedente
Oil-bath valves
swivel spout Ø 20
823 11/2
823 12/2
823 13/2
305
335
385
250
300
350
Come art. precedente con prolunghe mm 60
Come art. precedente con prolunghe mm 60
Come art. precedente con prolunghe mm 60
Tap with 60 mm extension
823 10/8
823 11/8
823 12/8
823 13/8
823 14/8
250
295
345
395
440
180
180
250
300
350
Come art. precedente con bocca alta a U orientabile Ø 20 –
vitoni a bagno d’olio
Oil-bath valves
swivel spout Ø 20
824 01
824 02
824 03
270
300
350
250
300
350
Corpo e maniglie P in ottone lucidato e cromato – vitoni in dischi
ceramici rotazione a 90° – bocca orientabile Ø 20 con rompiget-
to – caratteristiche come art. precedente
Ceramic cartridge 90°
swivel spout Ø 20
824 01/2
824 02/2
824 03/2
305
335
385
250
300
350
Come art. precedente con prolunghe mm 60
Come art. precedente con prolunghe mm 60
Come art. precedente con prolunghe mm 60
Tap with 60 mm extension
a

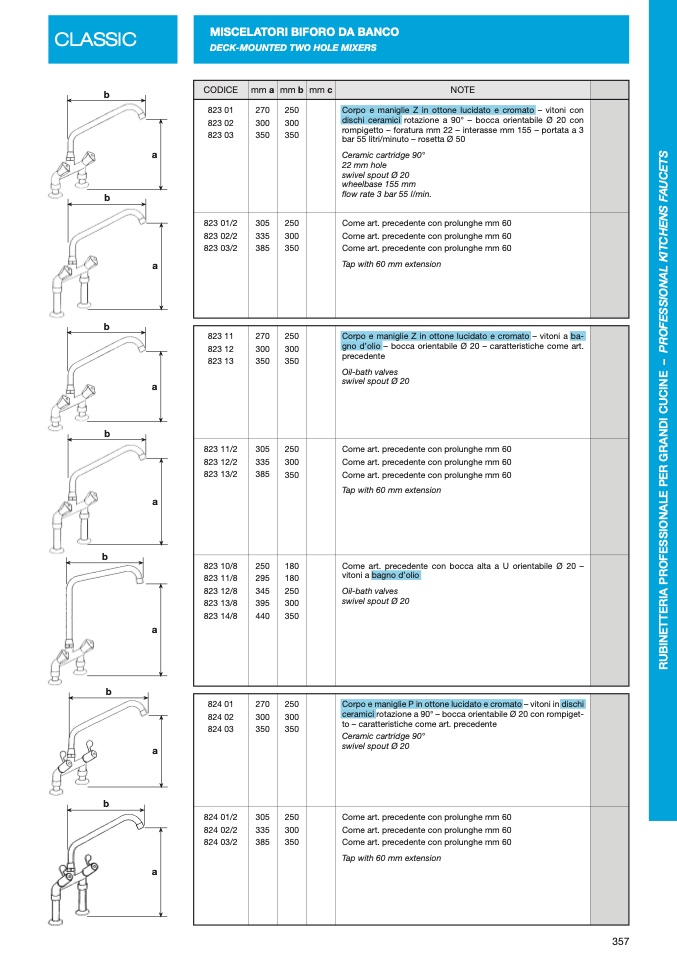

MISCELATORI BIFORO DA BANCO
DECK-MOUNTED TWO HOLE MIXERS
357
