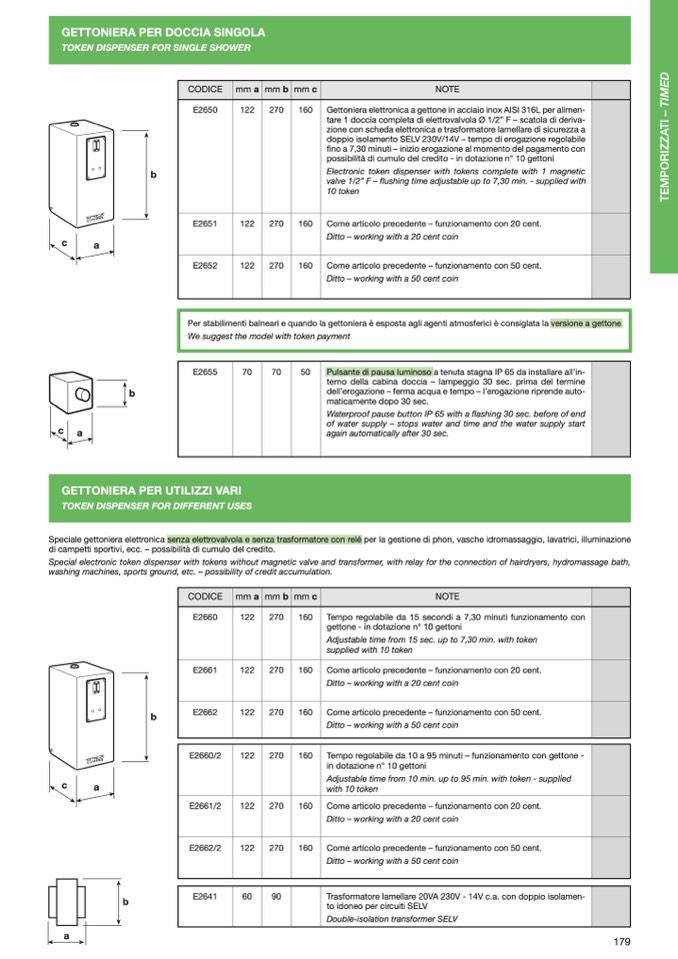

GETTONIERA PER DOCCIA SINGOLA

TOKEN DISPENSER FOR SINGLE SHOWER

CODICE

mm a

mm b

mm c

NOTE

E2650

122

270

160

Gettoniera elettronica a gettone in acciaio inox AISI 316L per alimen-

tare 1 doccia completa di elettrovalvola Ø 1/2” F – scatola di deriva-

zione con scheda elettronica e trasformatore lamellare di sicurezza a

doppio isolamento SELV 230V/14V – tempo di erogazione regolabile

fino a 7,30 minuti – inizio erogazione al momento del pagamento con

possibilità di cumulo del credito - in dotazione n° 10 gettoni

Electronic token dispenser with tokens complete with 1 magnetic

valve 1/2” F – flushing time adjustable up to 7,30 min. - supplied with

10 token

E2651

122

270

160

Come articolo precedente – funzionamento con 20 cent.

Ditto – working with a 20 cent coin

E2652

122

270

160

Come articolo precedente – funzionamento con 50 cent.

Ditto – working with a 50 cent coin

b

c

a

Per stabilimenti balneari e quando la gettoniera è esposta agli agenti atmosferici

è consiglata la versione a gettone

We suggest the model with token payment

E2655

70

70

50

Pulsante di pausa luminoso a tenuta stagna IP 65 da installare all’in-

terno della cabina doccia – lampeggio 30 sec. prima del termine

dell’erogazione – ferma acqua e tempo – l’erogazione riprende auto-

maticamente dopo 30 sec.

Waterproof pause button IP 65 with a flashing 30 sec. before of end

of water supply – stops water and time and the water supply start

again automatically after 30 sec.

b

c

a

GETTONIERA PER UTILIZZI VARI

TOKEN DISPENSER FOR DIFFERENT USES

Speciale gettoniera elettronica senza elettrovalvola e senza trasformatore con relé per la gestione di phon, vasche idromassaggio, lavatrici, illuminazione

di campetti sportivi, ecc. – possibilità di cumulo del credito.

Special electronic token dispenser with tokens without magnetic valve and transformer, with relay for the connection of hairdryers, hydromassage bath,

washing machines, sports ground, etc. – possibility of credit accumulation.

CODICE

mm a

mm b

mm c

NOTE

E2660

122

270

160

Tempo regolabile da 15 secondi a 7,30 minuti funzionamento con

gettone - in dotazione n° 10 gettoni

Adjustable time from 15 sec. up to 7,30 min. with token

supplied with 10 token

E2661

122

270

160

Come articolo precedente – funzionamento con 20 cent.

Ditto – working with a 20 cent coin

E2662

122

270

160

Come articolo precedente – funzionamento con 50 cent.

Ditto – working with a 50 cent coin

E2660/2

122

270

160

Tempo regolabile da 10 a 95 minuti – funzionamento con gettone -

in dotazione n° 10 gettoni

Adjustable time from 10 min. up to 95 min. with token - supplied

with 10 token

E2661/2

122

270

160

Come articolo precedente – funzionamento con 20 cent.

Ditto – working with a 20 cent coin

E2662/2

122

270

160

Come articolo precedente – funzionamento con 50 cent.

Ditto – working with a 50 cent coin

b

c

a

E2641

60

90

Trasformatore lamellare 20VA 230V - 14V c.a. con doppio isolamen-

to idoneo per circuiti SELV

Double-isolation transformer SELV

b

a

179
