Wilo-Sub TWU4

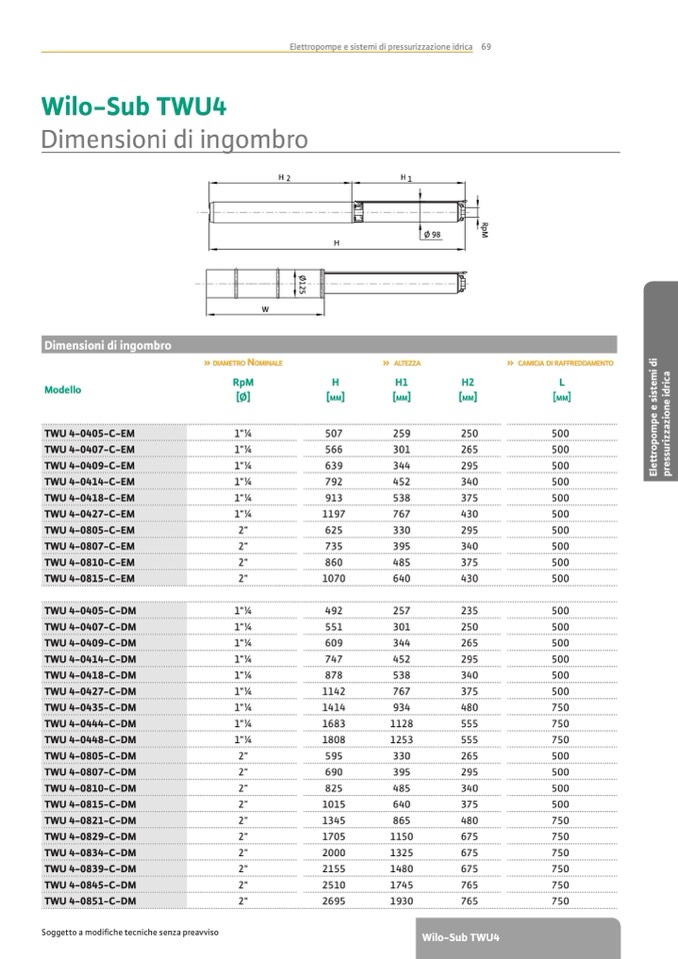

Dimensioni di ingombro

Dimensioni di ingombro

Modello

TWU 4-0405-C-EM

TWU 4-0407-C-EM

TWU 4-0409-C-EM

TWU 4-0414-C-EM

TWU 4-0418-C-EM

TWU 4-0427-C-EM

TWU 4-0805-C-EM

TWU 4-0807-C-EM

TWU 4-0810-C-EM

TWU 4-0815-C-EM

TWU 4-0405-C-DM

TWU 4-0407-C-DM

TWU 4-0409-C-DM

TWU 4-0414-C-DM

TWU 4-0418-C-DM

TWU 4-0427-C-DM

TWU 4-0435-C-DM

TWU 4-0444-C-DM

TWU 4-0448-C-DM

TWU 4-0805-C-DM

TWU 4-0807-C-DM

TWU 4-0810-C-DM

TWU 4-0815-C-DM

TWU 4-0821-C-DM

TWU 4-0829-C-DM

TWU 4-0834-C-DM

TWU 4-0839-C-DM

TWU 4-0845-C-DM

TWU 4-0851-C-DM

W

» DIAMETRO NOMINALE

RpM

[Ø]

1"1⁄4

1"1⁄4

1"1⁄4

1"1⁄4

1"1⁄4

1"1⁄4

2"

2"

2"

2"

1"1⁄4

1"1⁄4

1"1⁄4

1"1⁄4

1"1⁄4

1"1⁄4

1"1⁄4

1"1⁄4

1"1⁄4

2"

2"

2"

2"

2"

2"

2"

2"

2"

2"

» ALTEZZA

» CAMICIA DI RAFFREDDAMENTO

Soggetto a modi�che tecniche senza preavviso

Wilo-Sub TWU4

Elettropompe e sistemi di pressurizzazione idrica 69
