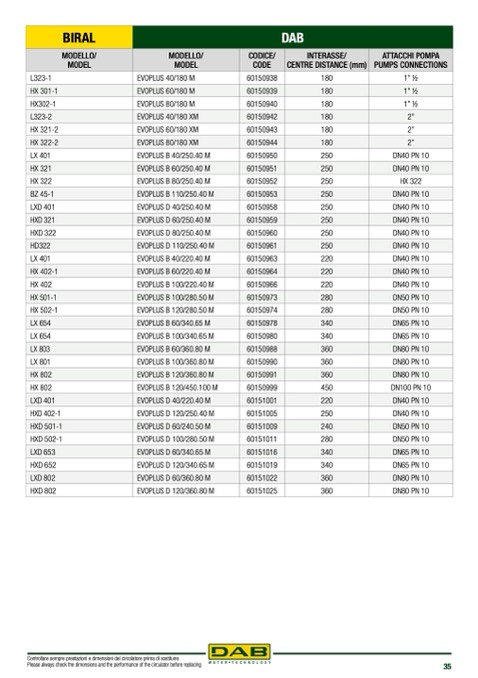

Dab Pumps - Manuale di Comparazione

BIRAL

MODELLO/

MODEL

L323-1

HX 301-1

HX302-1

L323-2

HX 321-2

HX 322-2

LX 401

HX 321

HX 322

BZ 45-1

LXD 401

HXD 321

HXD 322

HD322

LX 401

HX 402-1

HX 402

HX 501-1

HX 502-1

LX 654

LX 803

LX 801

HX 802

LXD 401

HXD 402-1

HXD 501-1

HXD 502-1

LXD 653

HXD 652

LXD 802

HXD 802

MODELLO/

MODEL

EVOPLUS 40/180 M

EVOPLUS 60/180 M

EVOPLUS 80/180 M

EVOPLUS 40/180 XM

EVOPLUS 60/180 XM

EVOPLUS 80/180 XM

EVOPLUS B 40/250.40 M

EVOPLUS B 60/250.40 M

EVOPLUS B 80/250.40 M

EVOPLUS B 110/250.40 M

EVOPLUS D 40/250.40 M

EVOPLUS D 60/250.40 M

EVOPLUS D 80/250.40 M

EVOPLUS D 110/250.40 M

EVOPLUS B 40/220.40 M

EVOPLUS B 60/220.40 M

EVOPLUS B 100/220.40 M

EVOPLUS B 100/280.50 M

EVOPLUS B 120/280.50 M

EVOPLUS B 60/340.65 M

EVOPLUS B 100/340.65 M

EVOPLUS B 60/360.80 M

EVOPLUS B 100/360.80 M

EVOPLUS B 120/360.80 M

EVOPLUS B 120/450.100 M

EVOPLUS D 40/220.40 M

EVOPLUS D 120/250.40 M

EVOPLUS D 60/240.50 M

EVOPLUS D 100/280.50 M

EVOPLUS D 60/340.65 M

EVOPLUS D 120/340.65 M

EVOPLUS D 60/360.80 M

EVOPLUS D 120/360.80 M

CODICE/

CODE

60150938

60150939

60150940

60150942

60150943

60150944

60150950

60150951

60150952

60150953

60150958

60150959

60150960

60150961

60150963

60150964

60150966

60150973

60150974

60150978

60150980

60150988

60150990

60150991

60150999

60151001

60151005

60151009

60151011

60151016

60151019

60151022

60151025

DAB

INTERASSE/

CENTRE DISTANCE (mm)

180

250

220

280

340

360

450

220

250

240

280

340

360

ATTACCHI POMPA

PUMPS CONNECTIONS

1”1⁄2

2”

DN40 PN 10

HX 322

DN40 PN 10

DN50 PN 10

DN65 PN 10

DN80 PN 10

DN100 PN 10

DN40 PN 10

DN50 PN 10

DN65 PN 10

DN80 PN 10

Controllare sempre prestazioni e dimensioni del circolatore prima di sostituire.

Please always check the dimensions and the performance of the circulator before replacing
