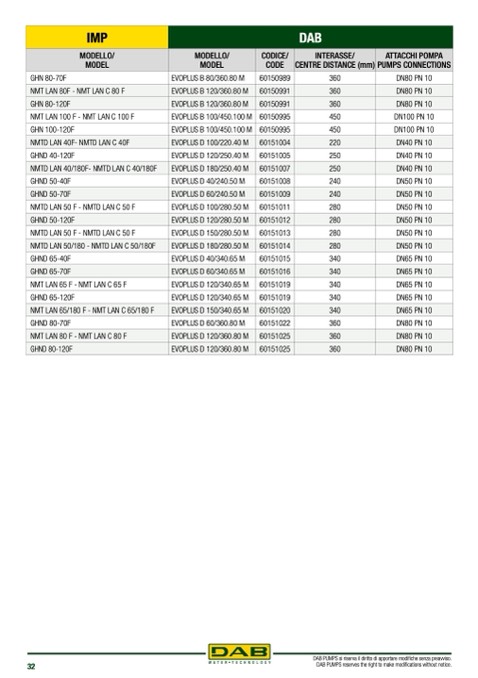

IMP

DAB

MODELLO/

MODEL

MODELLO/

MODEL

CODICE/

CODE

INTERASSE/

CENTRE DISTANCE (mm)

ATTACCHI POMPA

PUMPS CONNECTIONS

GHN 80-70F

EVOPLUS B 80/360.80 M

60150989

360

DN80 PN 10

NMT LAN 80F - NMT LAN C 80 F

EVOPLUS B 120/360.80 M

60150991

360

DN80 PN 10

GHN 80-120F

EVOPLUS B 120/360.80 M

60150991

360

DN80 PN 10

NMT LAN 100 F - NMT LAN C 100 F

EVOPLUS B 100/450.100 M

60150995

450

DN100 PN 10

GHN 100-120F

EVOPLUS B 100/450.100 M

60150995

450

DN100 PN 10

NMTD LAN 40F- NMTD LAN C 40F

EVOPLUS D 100/220.40 M

60151004

220

DN40 PN 10

GHND 40-120F

EVOPLUS D 120/250.40 M

60151005

250

DN40 PN 10

NMTD LAN 40/180F- NMTD LAN C 40/180F

EVOPLUS D 180/250.40 M

60151007

250

DN40 PN 10

GHND 50-40F

EVOPLUS D 40/240.50 M

60151008

240

DN50 PN 10

GHND 50-70F

EVOPLUS D 60/240.50 M

60151009

240

DN50 PN 10

NMTD LAN 50 F - NMTD LAN C 50 F

EVOPLUS D 100/280.50 M

60151011

280

DN50 PN 10

GHND 50-120F

EVOPLUS D 120/280.50 M

60151012

280

DN50 PN 10

NMTD LAN 50 F - NMTD LAN C 50 F

EVOPLUS D 150/280.50 M

60151013

280

DN50 PN 10

NMTD LAN 50/180 - NMTD LAN C 50/180F

EVOPLUS D 180/280.50 M

60151014

280

DN50 PN 10

GHND 65-40F

EVOPLUS D 40/340.65 M

60151015

340

DN65 PN 10

GHND 65-70F

EVOPLUS D 60/340.65 M

60151016

340

DN65 PN 10

NMT LAN 65 F - NMT LAN C 65 F

EVOPLUS D 120/340.65 M

60151019

340

DN65 PN 10

GHND 65-120F

EVOPLUS D 120/340.65 M

60151019

340

DN65 PN 10

NMT LAN 65/180 F - NMT LAN C 65/180 F

EVOPLUS D 150/340.65 M

60151020

340

DN65 PN 10

GHND 80-70F

EVOPLUS D 60/360.80 M

60151022

360

DN80 PN 10

NMT LAN 80 F - NMT LAN C 80 F

EVOPLUS D 120/360.80 M

60151025

360

DN80 PN 10

GHND 80-120F

EVOPLUS D 120/360.80 M

60151025

360

DN80 PN 10

32

DAB PUMPS si riserva il diritto di apportare modifiche senza preavviso.

DAB PUMPS reserves the right to make modifications without notice.
