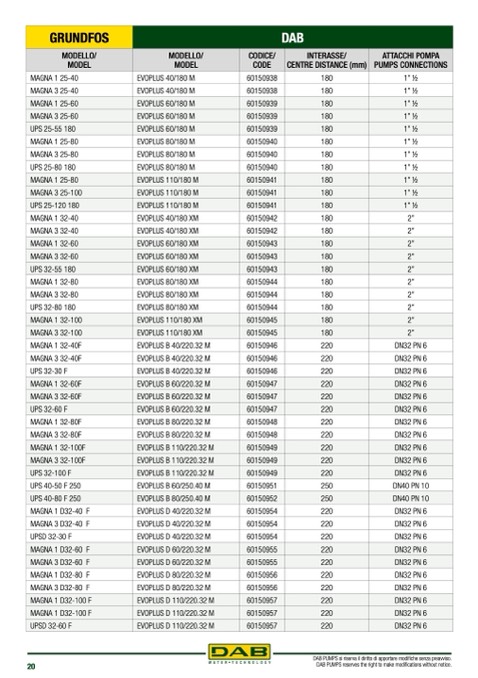

GRUNDFOS

MODELLO/

MODEL

MAGNA 1 25-40

MAGNA 3 25-40

MAGNA 1 25-60

MAGNA 3 25-60

UPS 25-55 180

MAGNA 1 25-80

MAGNA 3 25-80

UPS 25-80 180

MAGNA 1 25-80

MAGNA 3 25-100

UPS 25-120 180

MAGNA 1 32-40

MAGNA 3 32-40

MAGNA 1 32-60

MAGNA 3 32-60

UPS 32-55 180

MAGNA 1 32-80

MAGNA 3 32-80

UPS 32-80 180

MAGNA 1 32-100

MAGNA 3 32-100

MAGNA 1 32-40F

MAGNA 3 32-40F

UPS 32-30 F

MAGNA 1 32-60F

MAGNA 3 32-60F

UPS 32-60 F

MAGNA 1 32-80F

MAGNA 3 32-80F

MAGNA 1 32-100F

MAGNA 3 32-100F

UPS 32-100 F

UPS 40-50 F 250

UPS 40-80 F 250

MAGNA 1 D32-40 F

MAGNA 3 D32-40 F

UPSD 32-30 F

MAGNA 1 D32-60 F

MAGNA 3 D32-60 F

MAGNA 1 D32-80 F

MAGNA 3 D32-80 F

MAGNA 1 D32-100 F

MAGNA 1 D32-100 F

UPSD 32-60 F

20

MODELLO/

MODEL

EVOPLUS 40/180 M

EVOPLUS 40/180 M

EVOPLUS 60/180 M

EVOPLUS 60/180 M

EVOPLUS 60/180 M

EVOPLUS 80/180 M

EVOPLUS 80/180 M

EVOPLUS 80/180 M

EVOPLUS 110/180 M

EVOPLUS 110/180 M

EVOPLUS 110/180 M

EVOPLUS 40/180 XM

EVOPLUS 40/180 XM

EVOPLUS 60/180 XM

EVOPLUS 60/180 XM

EVOPLUS 60/180 XM

EVOPLUS 80/180 XM

EVOPLUS 80/180 XM

EVOPLUS 80/180 XM

EVOPLUS 110/180 XM

EVOPLUS 110/180 XM

EVOPLUS B 40/220.32

EVOPLUS B 40/220.32

EVOPLUS B 40/220.32

EVOPLUS B 60/220.32

EVOPLUS B 60/220.32

EVOPLUS B 60/220.32

EVOPLUS B 80/220.32

EVOPLUS B 80/220.32

EVOPLUS B 110/220.32 M

EVOPLUS B 110/220.32 M

EVOPLUS B 110/220.32 M

EVOPLUS B 60/250.40 M

EVOPLUS B 80/250.40 M

EVOPLUS D 40/220.32 M

EVOPLUS D 40/220.32 M

EVOPLUS D 40/220.32 M

EVOPLUS D 60/220.32 M

EVOPLUS D 60/220.32 M

EVOPLUS D 80/220.32 M

EVOPLUS D 80/220.32 M

EVOPLUS D 110/220.32 M

EVOPLUS D 110/220.32 M

EVOPLUS D 110/220.32 M

CODICE/

CODE

60150938

60150938

60150939

60150939

60150939

60150940

60150940

60150940

60150941

60150941

60150941

60150942

60150942

60150943

60150943

60150943

60150944

60150944

60150944

60150945

60150945

60150946

60150946

60150946

60150947

60150947

60150947

60150948

60150948

60150949

60150949

60150949

60150951

60150952

60150954

60150954

60150954

60150955

60150955

60150956

60150956

60150957

60150957

60150957

DAB

INTERASSE/

CENTRE DISTANCE (mm)

180

180

180

180

180

180

180

180

180

180

180

180

180

180

180

180

180

180

180

180

180

220

220

220

220

220

220

220

220

220

220

220

250

250

220

220

220

220

220

220

220

220

220

220

ATTACCHI POMPA

PUMPS CONNECTIONS

1”1⁄2

1”1⁄2

1”1⁄2

1”1⁄2

1”1⁄2

1”1⁄2

1”1⁄2

1”1⁄2

1”1⁄2

1”1⁄2

1”1⁄2

2”

2”

2”

2”

2”

2”

2”

2”

2”

2”

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN40 PN 10

DN40 PN 10

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

DN32 PN 6

M

M

M

M

M

M

M

M

DAB PUMPS si riserva il diritto di apportare modifiche senza preavviso.

DAB PUMPS reserves the right to make modifications without notice.
