I tecnici di Bellosta Rubinetterie sono, inoltre, a disposizione di architetti e
designers, per offrire un servizio esclusivo: personalizzazioni di elementi in
funzione di specifiche richieste estetiche o problematiche legate a vincoli
progettuali, verifica della fattibilità attraverso opportuni studi CAD e sviluppo
del disegno tecnico del prodotto speciale richiesto.
Per informazioni e richieste PROGETTI SU MISURA:
ufficiotecnico@bellostarubinetterie.com
Per il corretto funzionamento è consigliabile una pressione dinamica di almeno
1.5 bar ed una portata d’acqua di 10 lt/min. Scarico consigliato foro Ø90.
ATTENZIONE: per questa combinazione è necessario uno spessore minimo
della parete di almeno mm 80.
For the correct function it’s suggest to have a dynamic pressure not less than 1.5 bar
and a water flow about 10 lt/min. Suggest waste hole Ø90
PAY ATTENTION: For this featuring is necessary a minimum wall depth not less than
mm 80.

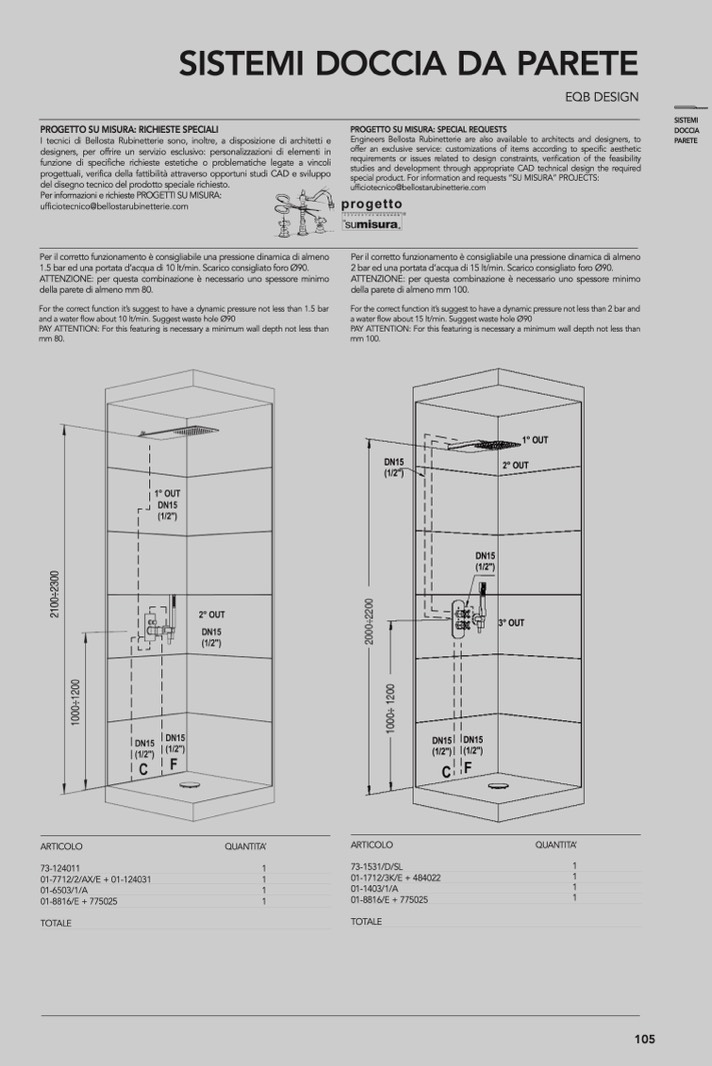

PROGETTO SU MISURA: SPECIAL REQUESTS
SISTEMI
DOCCIA
PARETE
Engineers Bellosta Rubinetterie are also available to architects and designers, to
offer an exclusive service: customizations of items according to specific aesthetic
requirements or issues related to design constraints, verification of the feasibility
studies and development through appropriate CAD technical design the required
special product. For information and requests “SU MISURA” PROJECTS:
ufficiotecnico@bellostarubinetterie.com
Per il corretto funzionamento è consigliabile una pressione dinamica di almeno
2 bar ed una portata d’acqua di 15 lt/min. Scarico consigliato foro Ø90.
ATTENZIONE: per questa combinazione è necessario uno spessore minimo
della parete di almeno mm 100.
For the correct function it’s suggest to have a dynamic pressure not less than 2 bar and
a water flow about 15 lt/min. Suggest waste hole Ø90
PAY ATTENTION: For this featuring is necessary a minimum wall depth not less than
mm 100.
DN15
(1/2")
1° OUT
2° OUT
DN15
(1/2")
3° OUT
1° OUT
DN15
(1/2")
2° OUT
DN15
(1/2")
DN15
DN15
(1/2")
(1/2")
DN15 DN15
(1/2") (1/2")
ARTICOLO
QUANTITA’
1
1
1
1
ARTICOLO
QUANTITA’
1
1
1
1
73-124011
01-7712/2/AX/E + 01-124031
01-6503/1/A
01-8816/E + 775025
TOTALE
73-1531/D/SL
01-1712/3K/E + 484022
01-1403/1/A
01-8816/E + 775025
TOTALE
1
0
0
0
÷
1
2
0
0
2
1
0
0
÷
2
3
0
0
