L

Installazione e ingombro del frangiflutto.

Water brake dimensions and installation.

7 cm

SIM

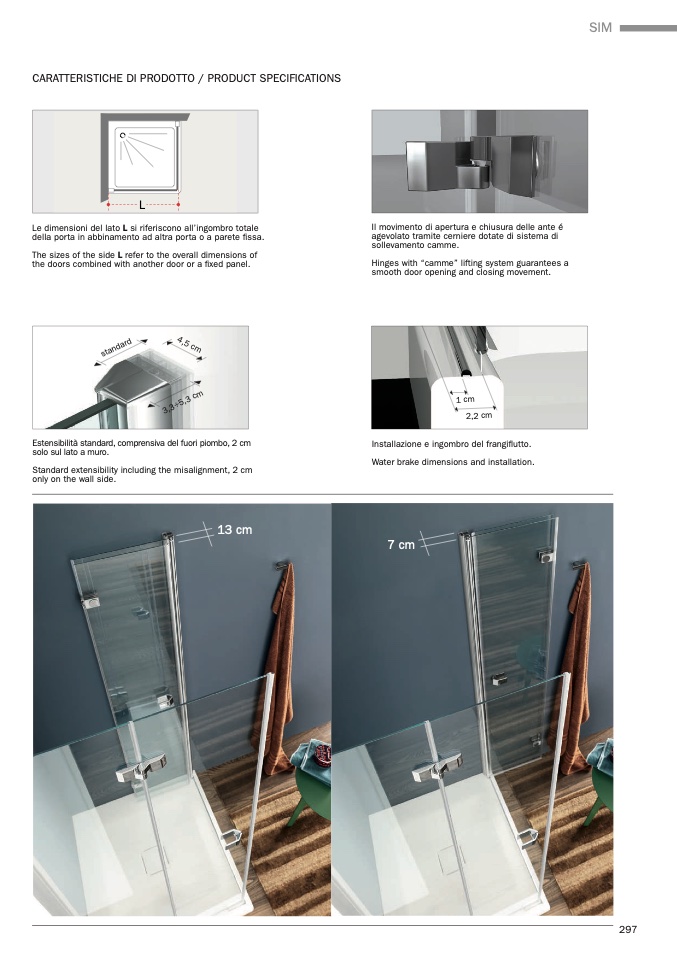

CARATTERISTICHE DI PRODOTTO / PRODUCT SPECIFICATIONS

Le dimensioni del lato L si riferiscono all’ingombro totale

della porta in abbinamento ad altra porta o a parete fissa.

The sizes of the side L refer to the overall dimensions of

the doors combined with another door or a fixed panel.

Estensibilità standard, comprensiva del fuori piombo, 2 cm

solo sul lato a muro.

Standard extensibility including the misalignment, 2 cm

only on the wall side.

13 cm

Il movimento di apertura e chiusura delle ante é

agevolato tramite cerniere dotate di sistema di

sollevamento camme.

Hinges with “camme” lifting system guarantees a

smooth door opening and closing movement.

297

4

,

5

c

m

standard

1 cm

3,3÷5,3 cm

2,2 cm
