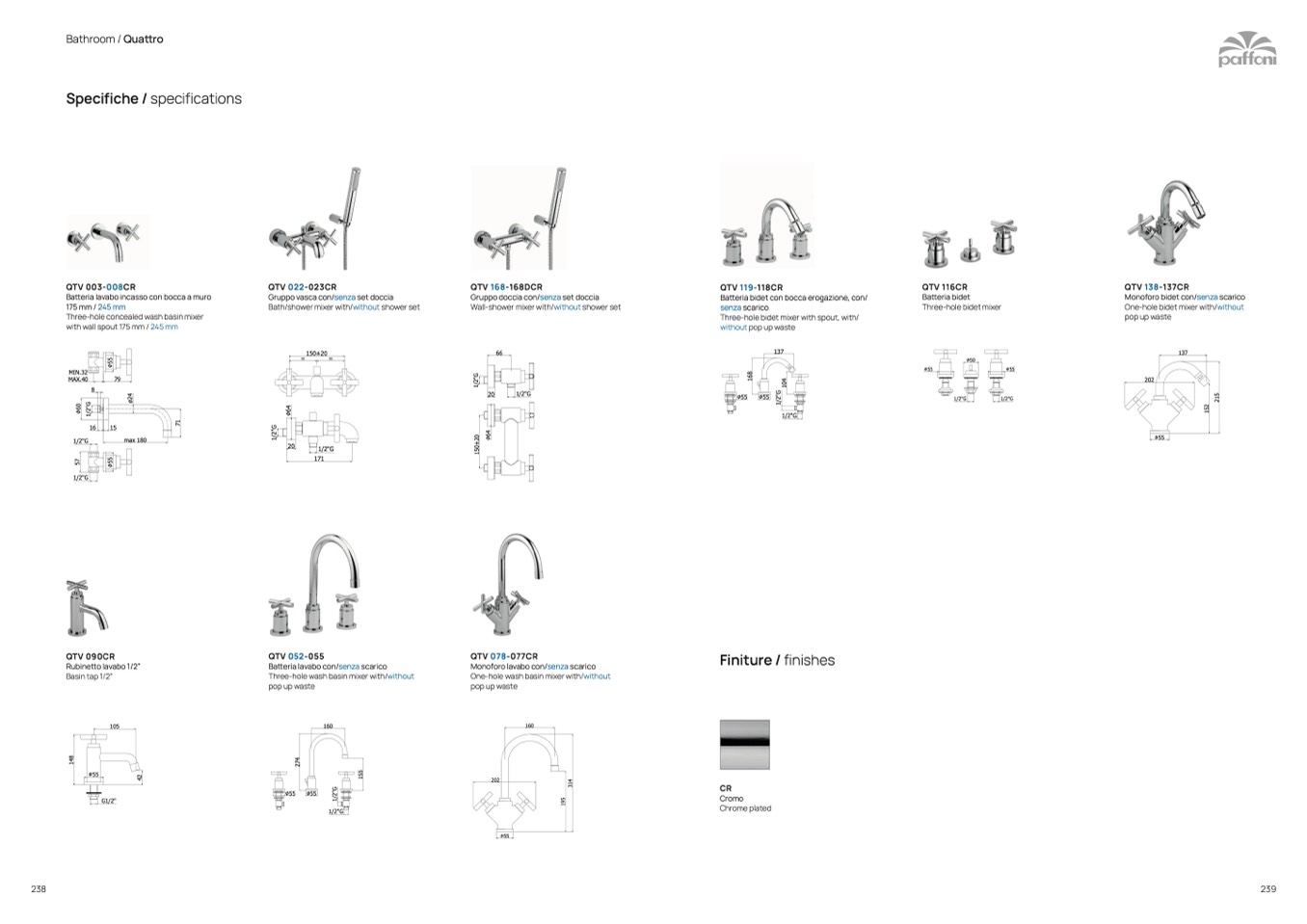

Bathroom / Quattro

Specifiche / specifications

QTV 003-008CR

Batteria lavabo incasso con bocca a muro

175 mm / 245 mm

Three-hole concealed wash basin mixer

with wall spout 175 mm / 245 mm

QTV 022-023CR

Gruppo vasca con/senza set doccia

Bath/shower mixer with/without shower set

QTV 168-168DCR

Gruppo doccia con/senza set doccia

Wall-shower mixer with/without shower set

QTV 119-118CR

Batteria bidet con bocca erogazione, con/

senza scarico

Three-hole bidet mixer with spout, with/

without pop up waste

137

1/2"G

QTV 116CR

Batteria bidet

Three-hole bidet mixer

QTV 138-137CR

Monoforo bidet con/senza scarico

One-hole bidet mixer with/without

pop up waste

MIN.32

MAX.40

79

150±20

1/2"G

171

∅55

∅55

1/2"G

8

16

15

1/2"G

20

1/2"G

∅55

∅55

1/2"G

1/2"G

max 180

∅55

QTV 090CR

QTV 052-055

Batteria lavabo con/senza scarico

Three-hole wash basin mixer with/without

pop up waste

QTV 078-077CR

Monoforo lavabo con/senza scarico

One-hole wash basin mixer with/without

pop up waste

Finiture / finishes

CR

Cromo

Chrome plated

Rubinetto lavabo 1/2”

Basin tap 1/2”

105

∅55

G1/2"

160

1/2"G

160

20

∅55

∅55

66

=

=

∅50
