Pompe in-line a motore ventilato elettroniche 115

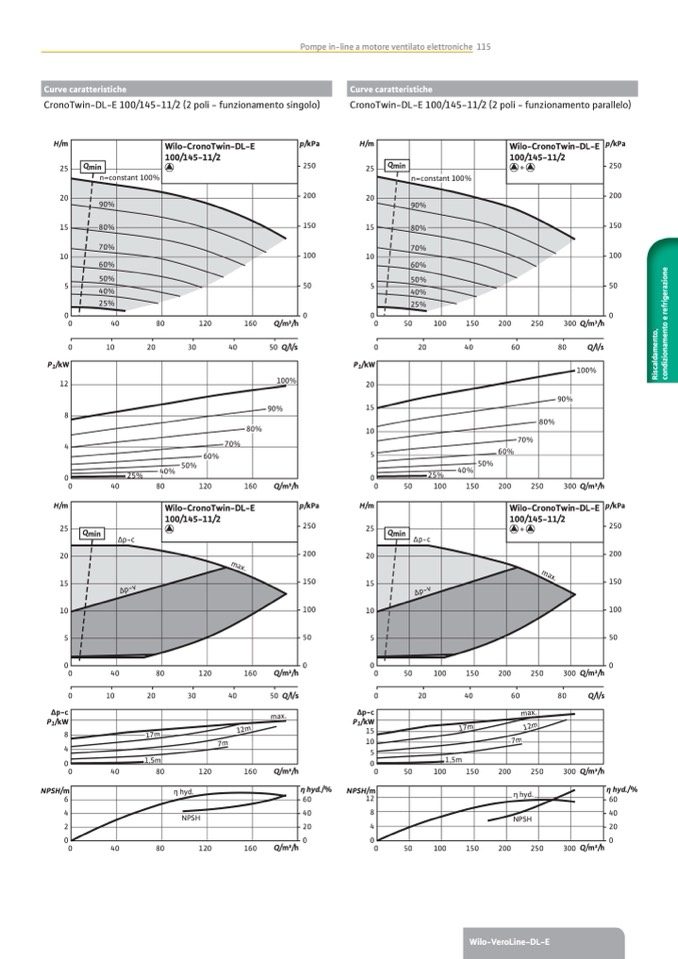

Curve caratteristiche
CronoTwin-DL-E 100/145-11/2 (2 poli - funzionamento singolo)
Curve caratteristiche
CronoTwin-DL-E 100/145-11/2 (2 poli - funzionamento parallelo)
