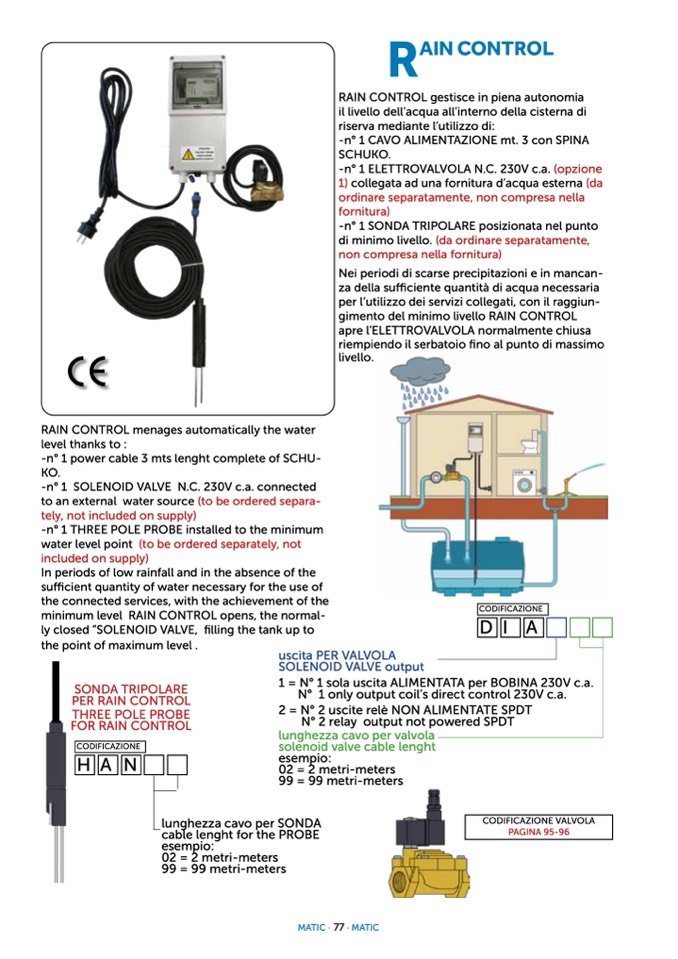

R

AIN CONTROL

RAIN CONTROL gestisce in piena autonomia

il livello dell’acqua all’interno della cisterna di

riserva mediante l’utilizzo di:

-n° 1 CAVO ALIMENTAZIONE mt. 3 con SPINA

SCHUKO.

-n° 1 ELETTROVALVOLA N.C. 230V c.a. (opzione

1) collegata ad una fornitura d’acqua esterna (da

ordinare separatamente, non compresa nella

fornitura)

-n° 1 SONDA TRIPOLARE posizionata nel punto

di minimo livello. (da ordinare separatamente,

non compresa nella fornitura)

Nei periodi di scarse precipitazioni e in mancan-

za della sufficiente quantità di acqua necessaria

per l’utilizzo dei servizi collegati, con il raggiun-

gimento del minimo livello RAIN CONTROL

apre l’ELETTROVALVOLA normalmente chiusa

riempiendo il serbatoio fino al punto di massimo

livello.

RAIN CONTROL menages automatically the water

level thanks to :

-n° 1 power cable 3 mts lenght complete of SCHU-

KO.

-n° 1 SOLENOID VALVE N.C. 230V c.a. connected

to an external water source (to be ordered separa-

tely, not included on supply)

-n° 1 THREE POLE PROBE installed to the minimum

water level point (to be ordered separately, not

included on supply)

In periods of low rainfall and in the absence of the

su

fficient quantity of water necessary for the use of

the connected services, with the achievement of the

minimum level RAIN CONTROL opens, the normal-

ly closed ”SOLENOID VALVE,

filling the tank up to

the point of maximum level .

SONDA TRIPOLARE

PER RAIN CONTROL

THREE POLE PROBE

FOR RAIN CONTROL

CODIFICAZIONE

HAN

CODIFICAZIONE

N° 1 only output coil’s direct control 230V c.a.

2 = N° 2 uscite relè NON ALIMENTATE SPDT

N° 2 relay output not powered SPDT

lunghezza cavo per valvola

solenoid valve cable lenght

esempio:

02 = 2 metri-meters

99 = 99 metri-meters

D I A

1 = N° 1 sola uscita ALIMENTATA per BOBINA 230V c.a.

uscita PER VALVOLA

SOLENOID VALVE output

lunghezza cavo per SONDA

cable lenght for the PROBE

esempio:

02 = 2 metri-meters

99 = 99 metri-meters

MATIC · 77 · MATIC

CODIFICAZIONE VALVOLA

PAGINA 95-96
