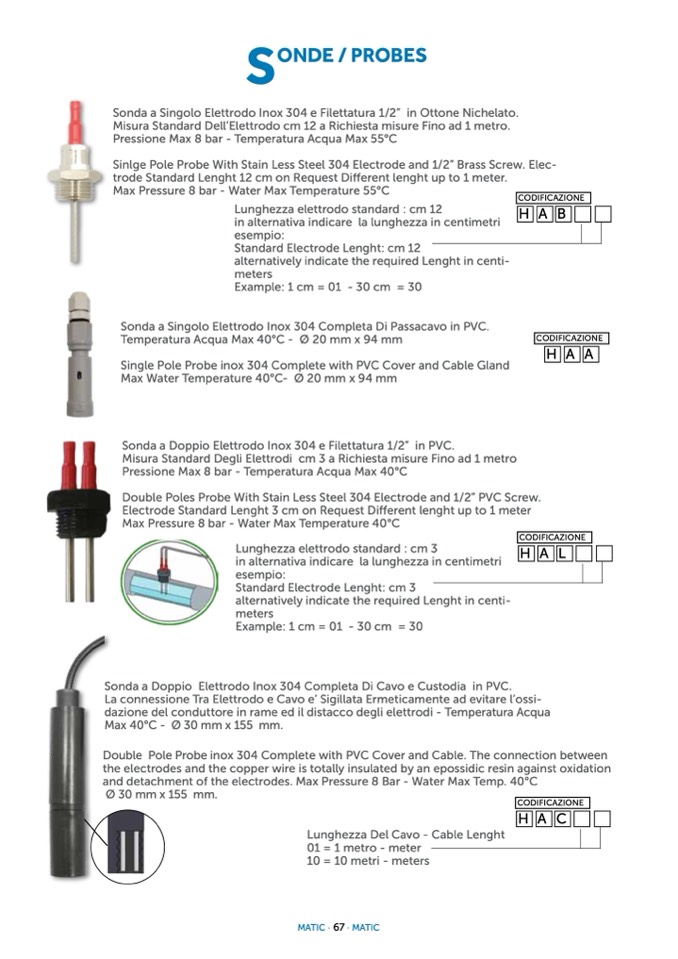

S

ONDE / PROBES

Sonda a Singolo Elettrodo Inox 304 e Filettatura 1/2” in Ottone Nichelato.

Misura Standard Dell’Elettrodo cm 12 a Richiesta misure Fino ad 1 metro.

Pressione Max 8 bar - Temperatura Acqua Max 55°C

Sinlge Pole Probe With Stain Less Steel 304 Electrode and 1/2” Brass Screw. Elec-

trode Standard Lenght 12 cm on Request Di

fferent lenght up to 1 meter.

Max Pressure 8 bar - Water Max Temperature 55°C

CODIFICAZIONE

HAB

CODIFICAZIONE

HAA

Lunghezza elettrodo standard : cm 12

in alternativa indicare la lunghezza in centimetri

esempio:

Standard Electrode Lenght: cm 12

alternatively indicate the required Lenght in centi-

meters

Example: 1 cm = 01 - 30 cm = 30

Sonda a Singolo Elettrodo Inox 304 Completa Di Passacavo in PVC.

Temperatura Acqua Max 40°C - Ø 20 mm x 94 mm

Single Pole Probe inox 304 Complete with PVC Cover and Cable Gland

Max Water Temperature 40°C- Ø 20 mm x 94 mm

Sonda a Doppio Elettrodo Inox 304 e Filettatura 1/2” in PVC.

Misura Standard Degli Elettrodi cm 3 a Richiesta misure Fino ad 1 metro

Pressione Max 8 bar - Temperatura Acqua Max 40°C

Double Poles Probe With Stain Less Steel 304 Electrode and 1/2” PVC Screw.

Electrode Standard Lenght 3 cm on Request Different lenght up to 1 meter

Max Pressure 8 bar - Water Max Temperature 40°C

CODIFICAZIONE

HAL

Sonda a Doppio Elettrodo Inox 304 Completa Di Cavo e Custodia in PVC.

La connessione Tra Elettrodo e Cavo e’ Sigillata Ermeticamente ad evitare l’ossi-

dazione del conduttore in rame ed il distacco degli elettrodi - Temperatura Acqua

Max40°C- Ø30mmx155 mm.

Double Pole Probe inox 304 Complete with PVC Cover and Cable. The connection between

the electrodes and the copper wire is totally insulated by an epossidic resin against oxidation

and detachment of the electrodes. Max Pressure 8 Bar - Water Max Temp. 40°C

Ø30mmx155 mm.

CODIFICAZIONE

HAC

Lunghezza Del Cavo - Cable Lenght

01 = 1 metro - meter

10 = 10 metri - meters

Lunghezza elettrodo standard : cm 3

in alternativa indicare la lunghezza in centimetri

esempio:

Standard Electrode Lenght: cm 3

alternatively indicate the required Lenght in centi-

meters

Example: 1 cm = 01 - 30 cm = 30
