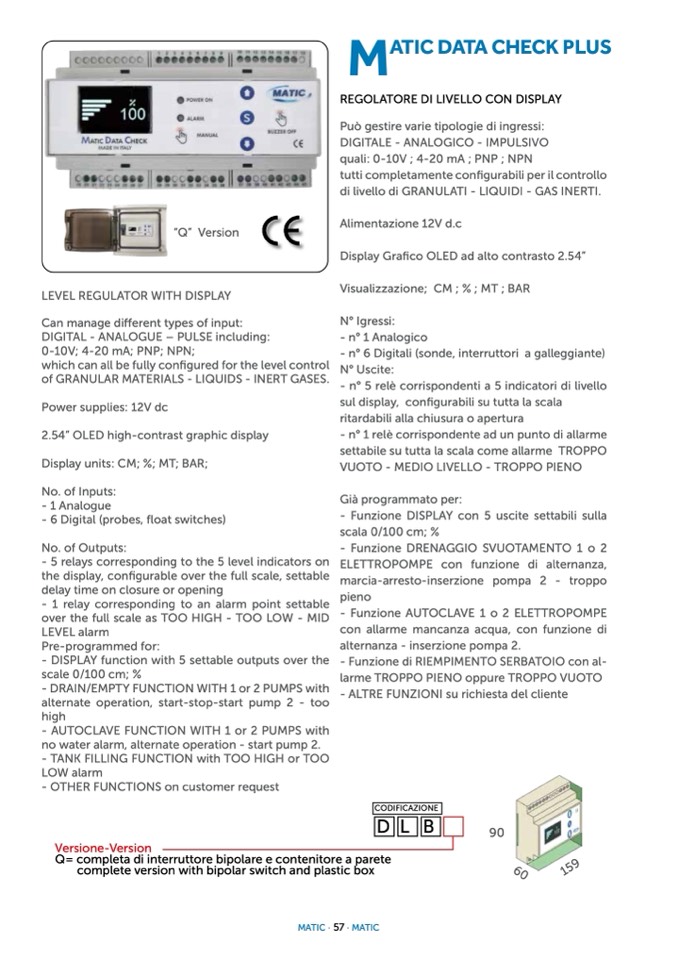

“Q” Version

LEVEL REGULATOR WITH DISPLAY

M

ATIC DATA CHECK PLUS

REGOLATORE DI LIVELLO CON DISPLAY

Può gestire varie tipologie di ingressi:

DIGITALE - ANALOGICO - IMPULSIVO

quali: 0-10V ; 4-20 mA ; PNP ; NPN

tutti completamente configurabili per il controllo

di livello di GRANULATI - LIQUIDI - GAS INERTI.

Alimentazione 12V d.c

Display Grafico OLED ad alto contrasto 2.54”

Visualizzazione; CM ; % ; MT ; BAR

N° Igressi:

- n° 1 Analogico

- n° 6 Digitali (sonde, interruttori a galleggiante)

N° Uscite:

- n° 5 relè corrispondenti a 5 indicatori di livello

sul display, configurabili su tutta la scala

ritardabili alla chiusura o apertura

- n° 1 relè corrispondente ad un punto di allarme

settabile su tutta la scala come allarme TROPPO

VUOTO - MEDIO LIVELLO - TROPPO PIENO

Già programmato per:

- Funzione DISPLAY con 5 uscite settabili sulla

scala 0/100 cm; %

- Funzione DRENAGGIO SVUOTAMENTO 1 o 2

ELETTROPOMPE con funzione di alternanza,

marcia-arresto-inserzione pompa 2 - troppo

pieno

- Funzione AUTOCLAVE 1 o 2 ELETTROPOMPE

con allarme mancanza acqua, con funzione di

alternanza - inserzione pompa 2.

- Funzione di RIEMPIMENTO SERBATOIO con al-

larme TROPPO PIENO oppure TROPPO VUOTO

- ALTRE FUNZIONI su richiesta del cliente

Can manage different types of input:

DIGITAL - ANALOGUE – PULSE including:

0-10V; 4-20 mA; PNP; NPN;

which can all be fully configured for the level control

of GRANULAR MATERIALS - LIQUIDS - INERT GASES.

Power supplies: 12V dc

2.54” OLED high-contrast graphic display

Display units: CM; %; MT; BAR;

No. of Inputs:

- 1 Analogue

- 6 Digital (probes, float switches)

No. of Outputs:

- 5 relays corresponding to the 5 level indicators on

the display, configurable over the full scale, settable

delay time on closure or opening

- 1 relay corresponding to an alarm point settable

over the full scale as TOO HIGH - TOO LOW - MID

LEVEL alarm

Pre-programmed for:

- DISPLAY function with 5 settable outputs over the

scale 0/100 cm; %

- DRAIN/EMPTY FUNCTION WITH 1 or 2 PUMPS with

alternate operation, start-stop-start pump 2 - too

high

- AUTOCLAVE FUNCTION WITH 1 or 2 PUMPS with

no water alarm, alternate operation - start pump 2.

- TANK FILLING FUNCTION with TOO HIGH or TOO

LOW alarm

- OTHER FUNCTIONS on customer request

DLB

Q= completa di interruttore bipolare e contenitore a parete

complete version with bipolar switch and plastic box

90

Versione-Version

MATIC · 57 · MATIC

CODIFICAZIONE

1

5

9

6

0
