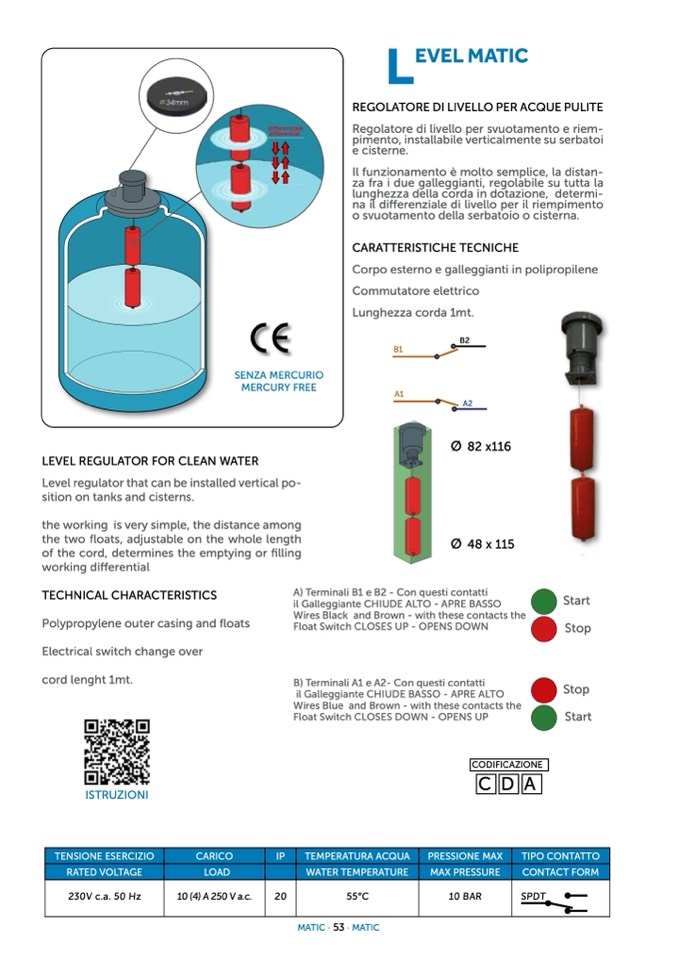

L

EVEL MATIC

(Brevettato)

differenziale

differential

(Patented)

REGOLATORE DI LIVELLO PER ACQUE PULITE

Regolatore di livello per svuotamento e riem-

pimento, installabile verticalmente su serbatoi

e cisterne.

Il funzionamento

è molto semplice, la distan-

za fra i due galleggianti, regolabile su tutta la

lunghezza della corda in dotazione, determi-

na il di

fferenziale di livello per il riempimento

o svuotamento della serbatoio o cisterna.

CARATTERISTICHE TECNICHE

Corpo esterno e galleggianti in polipropilene

Commutatore elettrico

Lunghezza corda 1mt.

SENZA MERCURIO

MERCURY FREE

LEVEL REGULATOR FOR CLEAN WATER

Level regulator that can be installed vertical po-

sition on tanks and cisterns.

the working is very simple, the distance among

the two floats, adjustable on the whole length

of the cord, determines the emptying or filling

working differential

B1

A1

B2

A2

Ø 82 x116

Ø 48 x 115

TECHNICAL CHARACTERISTICS

Polypropylene outer casing and

floats

Electrical switch change over

cord lenght 1mt.

ISTRUZIONI

A) Terminali B1 e B2 - Con questi contatti

il Galleggiante CHIUDE ALTO - APRE BASSO

Wires Black and Brown - with these contacts the

Float Switch CLOSES UP - OPENS DOWN

B) Terminali A1 e A2- Con questi contatti

il Galleggiante CHIUDE BASSO - APRE ALTO

Wires Blue and Brown - with these contacts the

Float Switch CLOSES DOWN - OPENS UP

Start

Stop

Stop

Start

MATIC · 53 · MATIC

CODIFICAZIONE

CDA

TENSIONE ESERCIZIO

CARICO

IP

TEMPERATURA ACQUA

PRESSIONE MAX

TIPO CONTATTO

RATED VOLTAGE

LOAD

WATER TEMPERATURE

MAX PRESSURE

CONTACT FORM

230V c.a. 50 Hz

10(4)A250Va.c.

20

55°C

10 BAR

SPDT
