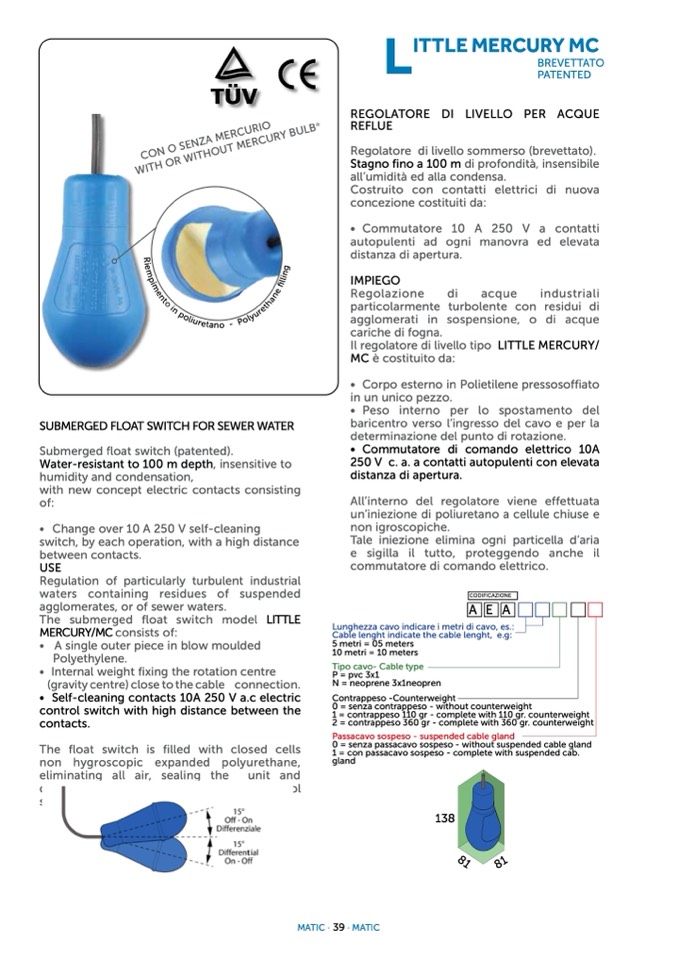

SUBMERGED FLOAT SWITCH FOR SEWER WATER

Submerged float switch (patented).

Water-resistant to 100 m depth, insensitive to

humidity and condensation,

with new concept electric contacts consisting

of:

• Change over 10 A 250 V self-cleaning

switch, by each operation, with a high distance

between contacts.

USE

Regulation of particularly turbulent industrial

waters containing residues of suspended

agglomerates, or of sewer waters.

The submerged float switch model LITTLE

MERCURY/MC consists of:

• A single outer piece in blow moulded

Polyethylene.

• Internal weight fixing the rotation centre

(gravity centre) close to the cable connection.

• Self-cleaning contacts 10A 250 V a.c electric

control switch with high distance between the

contacts.

The float switch is filled with closed cells

non hygroscopic expanded polyurethane,

eliminating all air, sealing the

unit and

completely surrounding the electric control

switch.

L

ITTLE MERCURY MC

(Brevettato)

BREVETTATO

(Patented)

PATENTED

REGOLATORE DI LIVELLO PER ACQUE

REFLUE

Regolatore di livello sommerso (brevettato).

Stagno fino a 100 m di profondit

à, insensibile

all’umidit

à ed alla condensa.

Costruito con contatti elettrici di nuova

concezione costituiti da:

• Commutatore 10 A 250 V a contatti

autopulenti ad ogni manovra ed elevata

distanza di apertura.

IMPIEGO

Regolazione

di

acque

industriali

particolarmente turbolente con residui di

agglomerati in sospensione, o di acque

cariche di fogna.

Il regolatore di livello tipo LITTLE MERCURY/

MC

è costituito da:

• Corpo esterno in Polietilene pressosoffiato

in un unico pezzo.

• Peso interno per lo spostamento del

baricentro verso l’ingresso del cavo e per la

determinazione del punto di rotazione.

• Commutatore di comando elettrico 10A

250 V c. a. a contatti autopulenti con elevata

distanza di apertura.

All’interno del regolatore viene effettuata

un’iniezione di poliuretano a cellule chiuse e

non igroscopiche.

Tale iniezione elimina ogni particella d’aria

e sigilla il tutto, proteggendo anche il

commutatore di comando elettrico.

CODIFICAZIONE

AEA

Lunghezza cavo indicare i metri di cavo, es.:

Cable lenght indicate the cable lenght, e.g:

5 metri = 05 meters

10 metri = 10 meters

Tipo cavo- Cable type

P = pvc 3x1

N = neoprene 3x1neopren

Contrappeso -Counterweight

0 = senza contrappeso - without counterweight

1 = contrappeso 110 gr - complete with 110 gr. counterweight

2 = contrappeso 360 gr - complete with 360 gr. counterweight

Passacavo sospeso - suspended cable gland

0 = senza passacavo sospeso - without suspended cable gland

1 = con passacavo sospeso - complete with suspended cab.

gland

138
