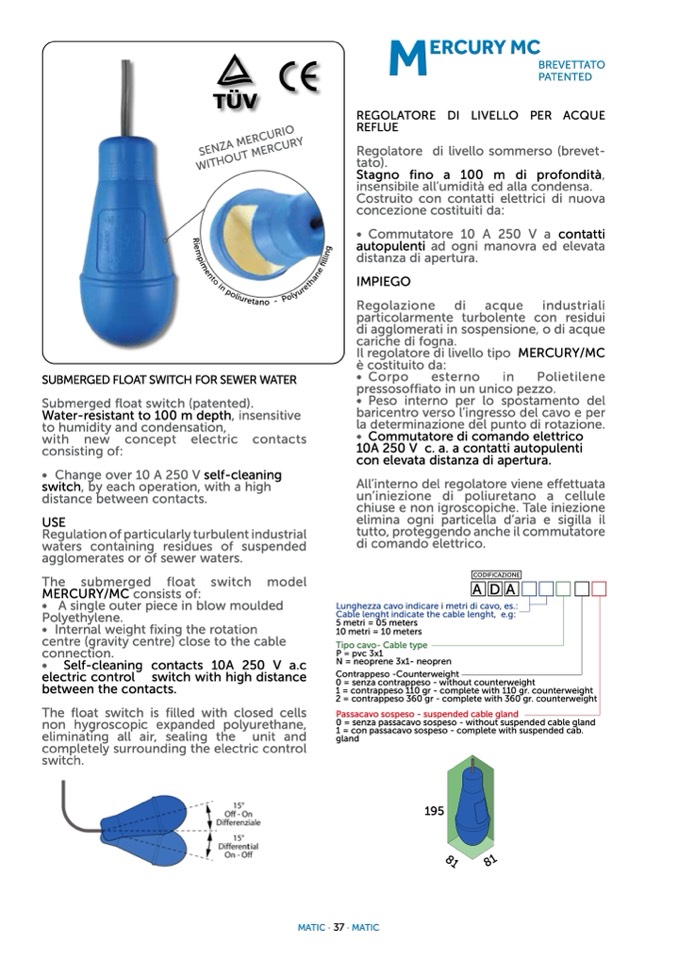

SUBMERGED FLOAT SWITCH FOR SEWER WATER

Submerged float switch (patented).

Water-resistant to 100 m depth, insensitive

to humidity and condensation,

with new concept electric contacts

consisting of:

• Change over 10 A 250 V self-cleaning

switch, by each operation, with a high

distance between contacts.

USE

Regulation of particularly turbulent industrial

waters containing residues of suspended

agglomerates or of sewer waters.

The submerged float switch model

MERCURY/MC consists of:

• A single outer piece in blow moulded

Polyethylene.

• Internal weight fixing the rotation

centre (gravity centre) close to the cable

connection.

• Self-cleaning contacts 10A 250 V a.c

electric control switch with high distance

between the contacts.

The float switch is filled with closed cells

non hygroscopic expanded polyurethane,

eliminating all air, sealing the unit and

completely surrounding the electric control

switch.

M

ERCURY MC

BREVETTATO

PATENTED

REGOLATORE DI LIVELLO PER ACQUE

REFLUE

Regolatore di livello sommerso (brevet-

tato).

Stagno fino a 100 m di profondità,

insensibile all’umidità ed alla condensa.

Costruito con contatti elettrici di nuova

concezione costituiti da:

• Commutatore 10 A 250 V a contatti

autopulenti ad ogni manovra ed elevata

distanza di apertura.

IMPIEGO

Regolazione

di

acque

industriali

particolarmente turbolente con residui

di agglomerati in sospensione, o di acque

cariche di fogna.

Il regolatore di livello tipo MERCURY/MC

è costituito da:

• Corpo

esterno

in

Polietilene

pressosoffiato in un unico pezzo.

• Peso interno per lo spostamento del

baricentro verso l’ingresso del cavo e per

la determinazione del punto di rotazione.

• Commutatore di comando elettrico

10A 250 V c. a. a contatti autopulenti

con elevata distanza di apertura.

All’interno del regolatore viene effettuata

un’iniezione di poliuretano a cellule

chiuse e non igroscopiche. Tale iniezione

elimina ogni particella d’aria e sigilla il

tutto, proteggendo anche il commutatore

di comando elettrico.

CODIFICAZIONE

ADA

Lunghezza cavo indicare i metri di cavo, es.:

Cable lenght indicate the cable lenght, e.g:

5 metri = 05 meters

10 metri = 10 meters

Tipo cavo- Cable type

P = pvc 3x1

N = neoprene 3x1- neopren

Contrappeso -Counterweight

0 = senza contrappeso - without counterweight

1 = contrappeso 110 gr - complete with 110 gr. counterweight

2 = contrappeso 360 gr - complete with 360 gr. counterweight

Passacavo sospeso - suspended cable gland

0 = senza passacavo sospeso - without suspended cable gland

1 = con passacavo sospeso - complete with suspended cab.

gland

195
