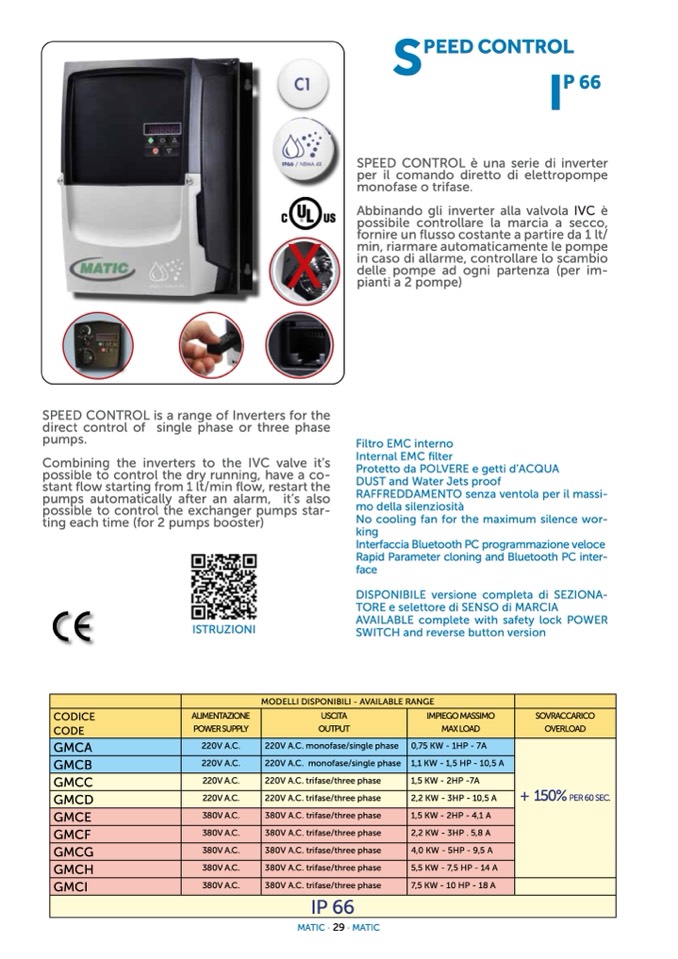

S

PEED CONTROLOL

I

P 66

SPEED CONTROL è una serie di inverter

per il comando diretto di elettropompe

monofase o trifase.

Abbinando gli inverter alla valvola IVC è

possibile controllare la marcia a secco,

X

fornireun

flussocostanteapartireda1lt/

min, riarmare automaticamente le pompe

in caso di allarme, controllare lo scambio

delle pompe ad ogni partenza (per im-

pianti a 2 pompe)

SPEED CONTROL is a range of Inverters for the

direct control of single phase or three phase

pumps.

Combining the inverters to the IVC valve it’s

possible to control the dry running, have a co-

stant flow starting from 1 lt/min

flow, restart the

pumps automatically after an alarm, it’s also

possible to control the exchanger pumps star-

ting each time (for 2 pumps booster)

ISTRUZIONI

Filtro EMC interno

Internal EMC filter

Protetto da POLVERE e getti d’ACQUA

DUST and Water Jets proof

RAFFREDDAMENTO senza ventola per il massi-

mo della silenziosità

No cooling fan for the maximum silence wor-

king

Interfaccia Bluetooth PC programmazione veloce

Rapid Parameter cloning and Bluetooth PC inter-

face

DISPONIBILE versione completa di SEZIONA-

TORE e selettore di SENSO di MARCIA

AVAILABLE complete with safety lock POWER

SWITCH and reverse button version

MODELLI DISPONIBILI - AVAILABLE RANGE

CODICE

CODE

ALIMENTAZIONE

POWER SUPPLY

USCITA

OUTPUT

IMPIEGO MASSIMO

MAX LOAD

SOVRACCARICO

OVERLOAD

GMCA

220V A.C.

220V A.C. monofase/single phase

0,75 KW - 1HP - 7A

+ 150%

PER60SEC.

GMCB

220V A.C.

220V A.C. monofase/single phase

1,1 KW - 1,5 HP - 10,5 A

GMCC

220V A.C.

220V A.C. trifase/three phase

1,5 KW - 2HP -7A

GMCD

220V A.C.

220V A.C. trifase/three phase

2,2 KW - 3HP - 10,5 A

GMCE

380V A.C.

380V A.C. trifase/three phase

1,5 KW - 2HP - 4,1 A

GMCF

380V A.C.

380V A.C. trifase/three phase

2,2 KW - 3HP . 5,8 A

GMCG

380V A.C.

380V A.C. trifase/three phase

4,0 KW - 5HP - 9,5 A

GMCH

380V A.C.

380V A.C. trifase/three phase

5,5 KW - 7,5 HP - 14 A

GMCI

380V A.C.

380V A.C. trifase/three phase

7,5 KW - 10 HP - 18 A

IP 66

MATIC · 29 · MATIC
