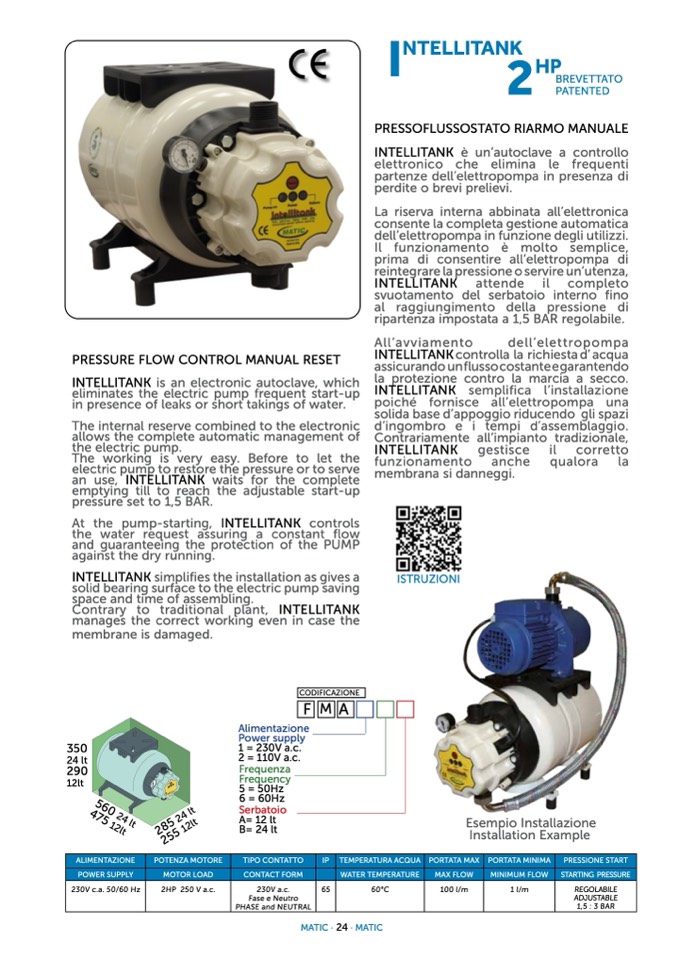

PRESSURE FLOW CONTROL MANUAL RESET

INTELLITANK is an electronic autoclave, which

eliminates the electric pump frequent start-up

in presence of leaks or short takings of water.

The internal reserve combined to the electronic

allows the complete automatic management of

the electric pump.

The working is very easy. Before to let the

electric pump to restore the pressure or to serve

an use, INTELLITANK waits for the complete

emptying till to reach the adjustable start-up

pressure set to 1,5 BAR.

At the pump-starting, INTELLITANK controls

the water request assuring a constant flow

and guaranteeing the protection of the PUMP

against the dry running.

INTELLITANK simplifies the installation as gives a

solid bearing surface to the electric pump saving

space and time of assembling.

Contrary to traditional plant, INTELLITANK

manages the correct working even in case the

I

NTELLITAN

2

K

HP

BREVETTATO

PATENTED

PRESSOFLUSSOSTATO RIARMO MANUALE

INTELLITANK

è un’autoclave a controllo

elettronico che elimina le frequenti

partenze dell’elettropompa in presenza di

perdite o brevi prelievi.

La riserva interna abbinata all’elettronica

consente la completa gestione automatica

dell’elettropompa in funzione degli utilizzi.

Il funzionamento

è molto semplice,

prima di consentire all’elettropompa di

reintegrare la pressione o servire un’utenza,

INTELLITANK attende il completo

svuotamento del serbatoio interno fino

al raggiungimento della pressione di

ripartenza impostata a 1,5 BAR regolabile.

All’avviamento

dell’elettropompa

INTELLITANK controlla la richiesta d’ acqua

assicurando un flusso costante e garantendo

la protezione contro la marcia a secco.

INTELLITANK semplifica l’installazione

poich

é fornisce all’elettropompa una

solida base d’appoggio riducendo gli spazi

d’ingombro e i tempi d’assemblaggio.

Contrariamente all’impianto tradizionale,

membrane is damaged.

350

1 = 230V a.c.

24 lt

290

12lt

2 = 110V a.c.

Frequenza

Frequency

5 = 50Hz

6 = 60Hz

Serbatoio

A= 12 lt

B= 24 lt

FMA

Alimentazione

Power supply

65

MATIC · 24 · MATIC

INTELLITANK

gestisce

funzionamento

anche

membrana si danneggi.

il

corretto

qualora

la

ISTRUZIONI

Esempio Installazione

Installation Example

CODIFICAZIONE

5

60

2

4

l

t

4

7

5

1

2

l

t

2

8

5

2

4

l

t

2

5

5

1

2

l

t

ALIMENTAZIONE

POTENZA MOTORE

TIPO CONTATTO

IP

TEMPERATURA ACQUA

PORTATA MAX

PORTATA MINIMA

PRESSIONE START

POWER SUPPLY

MOTOR LOAD

CONTACT FORM

WATER TEMPERATURE

MAX FLOW

MINIMUM FLOW

STARTING PRESSURE

230V c.a. 50/60 Hz

2HP 250 V a.c.

230V a.c.

Fase e Neutro

PHASE and NEUTRAL

60°C

100 l/m

1 l/m

REGOLABILE

ADJUSTABLE

1,5 : 3 BAR
