H

YDRO RAIN

2

HP

BREVETTATO

PATENTED

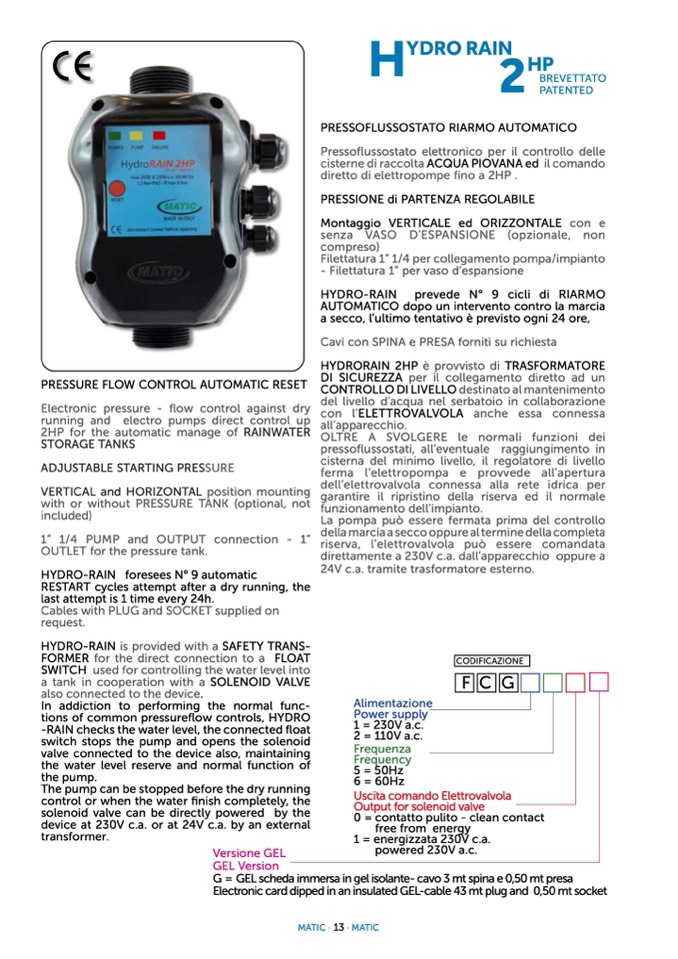

PRESSOFLUSSOSTATO RIARMO AUTOMATICO

Pressoflussostato elettronico per il controllo delle

cisterne di raccolta ACQUA PIOVANA ed il comando

diretto di elettropompe fino a 2HP .

PRESSIONE di PARTENZA REGOLABILE

Montaggio VERTICALE ed ORIZZONTALE con e

senza VASO D’ESPANSIONE (opzionale, non

compreso)

Filettatura 1” 1/4 per collegamento pompa/impianto

- Filettatura 1” per vaso d’espansione

HYDRO-RAIN

prevede N° 9 cicli di RIARMO

AUTOMATICO dopo un intervento contro la marcia

a secco, l’ultimo tentativo è previsto ogni 24 ore,

Cavi con SPINA e PRESA forniti su richiesta

HYDRORAIN 2HP è provvisto di TRASFORMATORE

DI SICUREZZA per il collegamento diretto ad un

CONTROLLO DI LIVELLO destinato al mantenimento

del livello d’acqua nel serbatoio in collaborazione

con l’ELETTROVALVOLA anche essa connessa

all’apparecchio.

OLTRE A SVOLGERE le normali funzioni dei

pressoflussostati, all’eventuale raggiungimento in

cisterna del minimo livello, il regolatore di livello

ferma l’elettropompa e provvede all’apertura

dell’elettrovalvola connessa alla rete idrica per

garantire il ripristino della riserva ed il normale

funzionamento dell’impianto.

La pompa pu

ò essere fermata prima del controllo

della marcia a secco oppure al termine della completa

riserva, l’elettrovalvola può essere comandata

direttamente a 230V c.a. dall’apparecchio oppure a

24V c.a. tramite trasformatore esterno.

CODIFICAZIONE

FCG

Uscita comando Elettrovalvola

Output for solenoid valve

0 = contatto pulito - clean contact

free from energy

1 = energizzata 230V c.a.

PRESSURE FLOW CONTROL AUTOMATIC RESET

Electronic pressure - flow control against dry

running and electro pumps direct control up

2HP for the automatic manage of RAINWATER

STORAGE TANKS

ADJUSTABLE STARTING PRESSURE

VERTICAL and HORIZONTAL position mounting

with or without PRESSURE TANK (optional, not

included)

1” 1/4 PUMP and OUTPUT connection - 1”

OUTLET for the pressure tank.

HYDRO-RAIN foresees N° 9 automatic

RESTART cycles attempt after a dry running, the

last attempt is 1 time every 24h.

Cables with PLUG and SOCKET supplied on

request.

HYDRO-RAIN is provided with a SAFETY TRANS-

FORMER for the direct connection to a FLOAT

SWITCH used for controlling the water level into

a tank in cooperation with a SOLENOID VALVE

also connected to the device.

In addiction to performing the normal func-

tions of common pressure

flow controls, HYDRO

-RAIN checks the water level, the connected

float

switch stops the pump and opens the solenoid

valve connected to the device also, maintaining

the water level reserve and normal function of

the pump.

The pump can be stopped before the dry running

control or when the water

finish completely, the

solenoid valve can be directly powered by the

device at 230V c.a. or at 24V c.a. by an external

transformer.

Versione GEL

GEL Version

G = GEL scheda immersa in gel isolante- cavo 3 mt spina e 0,50 mt presa

ElectroniccarddippedinaninsulatedGEL-cable43mtplugand 0,50mtsocket

MATIC · 13 · MATIC

Alimentazione

Power supply

1 = 230V a.c.

2 = 110V a.c.

Frequenza

Frequency

5 = 50Hz

6 = 60Hz

powered 230V a.c.
