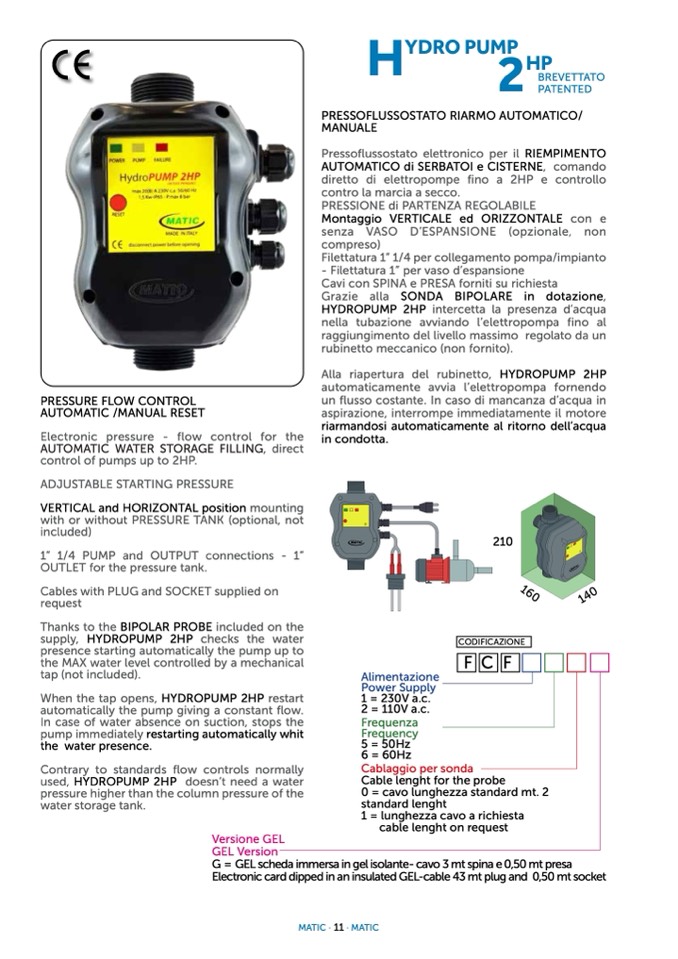

PRESSURE FLOW CONTROL

AUTOMATIC /MANUAL RESET

Electronic pressure - flow control for the

AUTOMATIC WATER STORAGE FILLING, direct

control of pumps up to 2HP.

ADJUSTABLE STARTING PRESSURE

VERTICAL and HORIZONTAL position mounting

with or without PRESSURE TANK (optional, not

included)

1” 1/4 PUMP and OUTPUT connections - 1”

OUTLET for the pressure tank.

Cables with PLUG and SOCKET supplied on

request

Thanks to the BIPOLAR PROBE included on the

supply, HYDROPUMP 2HP checks the water

presence starting automatically the pump up to

the MAX water level controlled by a mechanical

tap (not included).

When the tap opens, HYDROPUMP 2HP restart

automatically the pump giving a constant

flow.

In case of water absence on suction, stops the

pump immediately restarting automatically whit

the water presence.

Contrary to standards flow controls normally

used, HYDROPUMP 2HP doesn’t need a water

pressure higher than the column pressure of the

water storage tank.

H

YDRO PUM

2

P

HP

BREVETTATO

PRESSOFLUSSOSTATO RIARMO AUTOMATICO/

MANUALE

Pressoflussostato elettronico per il RIEMPIMENTO

AUTOMATICO di SERBATOI e CISTERNE, comando

diretto di elettropompe fino a 2HP e controllo

contro la marcia a secco.

PRESSIONE di PARTENZA REGOLABILE

Montaggio VERTICALE ed ORIZZONTALE con e

senza VASO D’ESPANSIONE (opzionale, non

compreso)

Filettatura 1” 1/4 per collegamento pompa/impianto

- Filettatura 1” per vaso d’espansione

Cavi con SPINA e PRESA forniti su richiesta

Grazie alla SONDA BIPOLARE in dotazione,

HYDROPUMP 2HP intercetta la presenza d’acqua

nella tubazione avviando l’elettropompa fino al

raggiungimento del livello massimo regolato da un

rubinetto meccanico (non fornito).

Alla riapertura del rubinetto, HYDROPUMP 2HP

automaticamente avvia l’elettropompa fornendo

un flusso costante. In caso di mancanza d’acqua in

aspirazione, interrompe immediatamente il motore

riarmandosi automaticamente al ritorno dell’acqua

in condotta.

210

FCF

Alimentazione

Power Supply

1 = 230V a.c.

2 = 110V a.c.

Frequenza

Frequency

5 = 50Hz

6 = 60Hz

Cablaggio per sonda

Cable lenght for the probe

0 = cavo lunghezza standard mt. 2

standard lenght

1 = lunghezza cavo a richiesta

cable lenght on request

Versione GEL

GEL Version

G = GEL scheda immersa in gel isolante- cavo 3 mt spina e 0,50 mt presa

ElectroniccarddippedinaninsulatedGEL-cable43mtplugand 0,50mtsocket

MATIC · 11 · MATIC

PATENTED

1

6

0

1

4

0

CODIFICAZIONE
