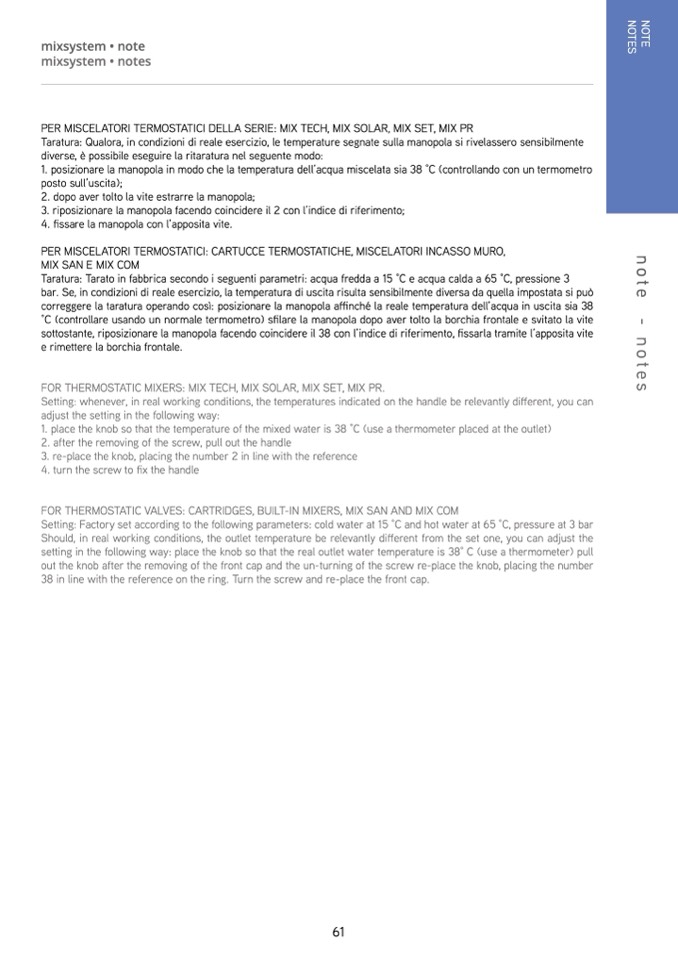

PER MISCELATORI TERMOSTATICI DELLA SERIE: MIX TECH, MIX SOLAR, MIX SET, MIX P

R

Taratura: Qualora, in condizioni di reale esercizio, le temperature segnate sulla manopola si rivelassero sensibilmente

diverse, è possibile eseguire la ritaratura nel seguente modo

:

1. posizionare la manopola in modo che la temperatura dell’acqua miscelata sia 38 °C (controllando con un termometro

posto sull’uscita)

;

2. dopo aver tolto la vite estrarre la manopola;

3. riposizionare la manopola facendo coincidere il 2 con l’indice di riferimento;

4. fissare la manopola con l’apposita vite.

PER MISCELATORI TERMOSTATICI: CARTUCCE TERMOSTATICHE, MISCELATORI INCASSO MURO,

MIX SAN E MIX COM

Taratura: Tarato in fabbrica secondo i seguenti parametri: acqua fredda a 15 °C e acqua calda a 65 °C, pressione 3

bar. Se, in condizioni di reale esercizio, la temperatura di uscita risulta sensibilmente diversa da quella impostata si può

correggere la taratura operando così: posizionare la manopola affinché la reale temperatura dell’acqua in uscita sia 38

°C (controllare usando un normale termometro) sfilare la manopola dopo aver tolto la borchia frontale e svitato la vit

e

sottostante, riposizionare la manopola facendo coincidere il 38 con l’indice di riferimento, fissarla tramite l’apposita vit

e

e rimettere la borchia frontale

.

n

o

t

e

-

n

o

t

e

s

FOR THERMOSTATIC MIXERS: MIX TECH, MIX SOLAR, MIX SET, MIX PR

.

Setting: whenever, in real working conditions, the temperatures indicated on the handle be relevantly different, you ca

n

adjust the setting in the following way:

1. place the knob so that the temperature of the mixed water is 38 °C (use a thermometer placed at the outlet)

2. after the removing of the screw, pull out the handl

e

3. re-place the knob, placing the number 2 in line with the reference

4. turn the screw to fix the handle

FOR THERMOSTATIC VALVES: CARTRIDGES, BUILT-IN MIXERS, MIX SAN AND MIX CO

M

Setting: Factory set according to the following parameters: cold water at 15 °C and hot water at 65 °C, pressure at 3 ba

r

Should, in real working conditions, the outlet temperature be relevantly different from the set one, you can adjust the

setting in the following way: place the knob so that the real outlet water temperature is 38° C (use a thermometer) pull

out the knob after the removing of the front cap and the un-turning of the screw re-place the knob, placing the number

38 in line with the reference on the ring. Turn the screw and re-place the front cap

.
