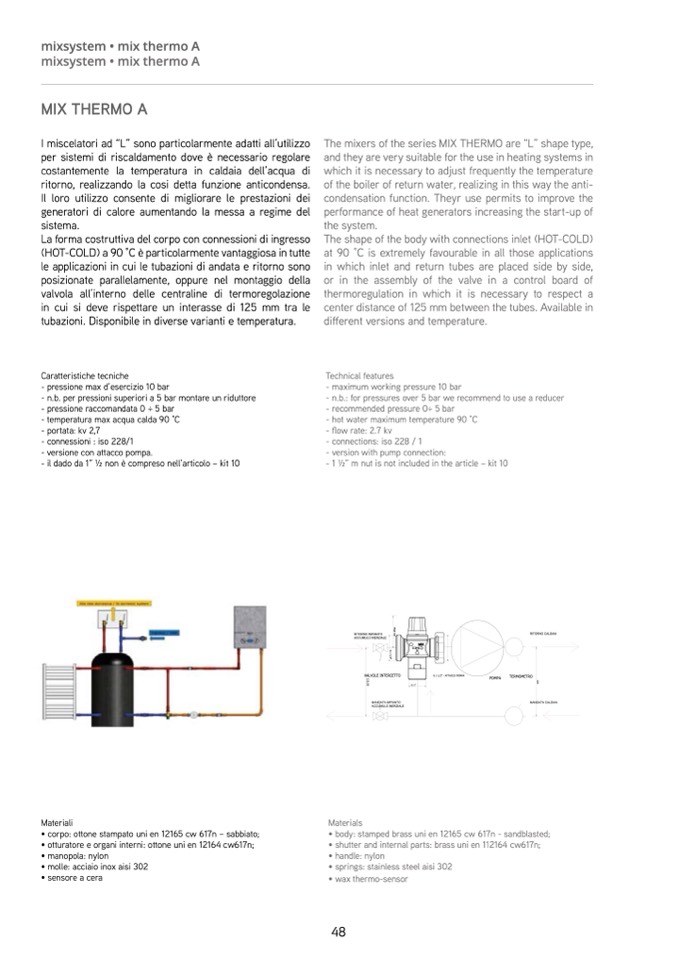

MIX THERMO A

I miscelatori ad “L” sono particolarmente adatti all’utilizz

o

per sistemi di riscaldamento dove è necessario regolare

costantemente la temperatura in caldaia dell’acqua d

i

ritorno, realizzando la cosi detta funzione anticondensa.

Il loro utilizzo consente di migliorare le prestazioni dei

generatori di calore aumentando la messa a regime de

l

sistema

.

La forma costruttiva del corpo con connessioni di ingress

o

(HOT-COLD) a 90 °C è particolarmente vantaggiosa in tutt

e

le applicazioni in cui le tubazioni di andata e ritorno son

o

posizionate parallelamente, oppure nel montaggio dell

a

valvola all’interno delle centraline di termoregolazion

e

in cui si deve rispettare un interasse di 125 mm tra le

tubazioni. Disponibile in diverse varianti e temperatura

.

The mixers of the series MIX THERMO are “L” shape type

,

and they are very suitable for the use in heating systems in

which it is necessary to adjust frequently the temperatur

e

of the boiler of return water, realizing in this way the anti

-

condensation function. Theyr use permits to improve th

e

performance of heat generators increasing the start-up of

the system

.

The shape of the body with connections inlet (HOT-COLD)

at 90 °C is extremely favourable in all those application

s

in which inlet and return tubes are placed side by side

,

or in the assembly of the valve in a control board o

f

thermoregulation in which it is necessary to respect

a

center distance of 125 mm between the tubes. Available i

n

di

fferent versions and temperature.

Caratteristiche tecniche

- pressione max d’esercizio 10 bar

- n.b. per pressioni superiori a 5 bar montare un riduttore

- pressione raccomandata 0 ÷ 5 ba

r

- temperatura max acqua calda 90 °

C

- portata: kv 2,7

- connessioni : iso 228/

1

- versione con attacco pompa.

- il dado da 1” ½ non è compreso nell’articolo – kit 1

0

Technical feature

s

- maximum working pressure 10 ba

r

- n.b.: for pressures over 5 bar we recommend to use a reduce

r

- recommended pressure 0÷ 5 ba

r

- hot water maximum temperature 90 °

C

-

flow rate: 2.7 kv

- connections: iso 228 /

1

- version with pump connection

:

- 1 ½” m nut is not included in the article – kit 1

0

RITORNOIMPIANT

O

ACCUMULOINERZIAL

E

M

A

X

6

0

RITORNOCALDAI

A

G

1

1

/

4

"

VALVOLE INTERCETT

O

1

2

5

,

0

0

G 1 1/2

"

- ATTACCO POMP

A

TERMOMETR

O

POMP

A

G 1

"

1

2

5

MANDATACALDAI

A

MANDATAIMPIANT

O

ACCUMULOINERZIAL

E

Materiali

• corpo: ottone stampato uni en 12165 cw 617n – sabbiato

;

• otturatore e organi interni: ottone uni en 12164 cw617n

;

• manopola: nylon

• molle: acciaio inox aisi 302

• sensore a cera

Material

s

• body: stamped brass uni en 12165 cw 617n - sandblasted

;

• shutter and internal parts: brass uni en 112164 cw617n

;

• handle: nylo

n

• springs: stainless steel aisi 302

• wax thermo-senso

r
