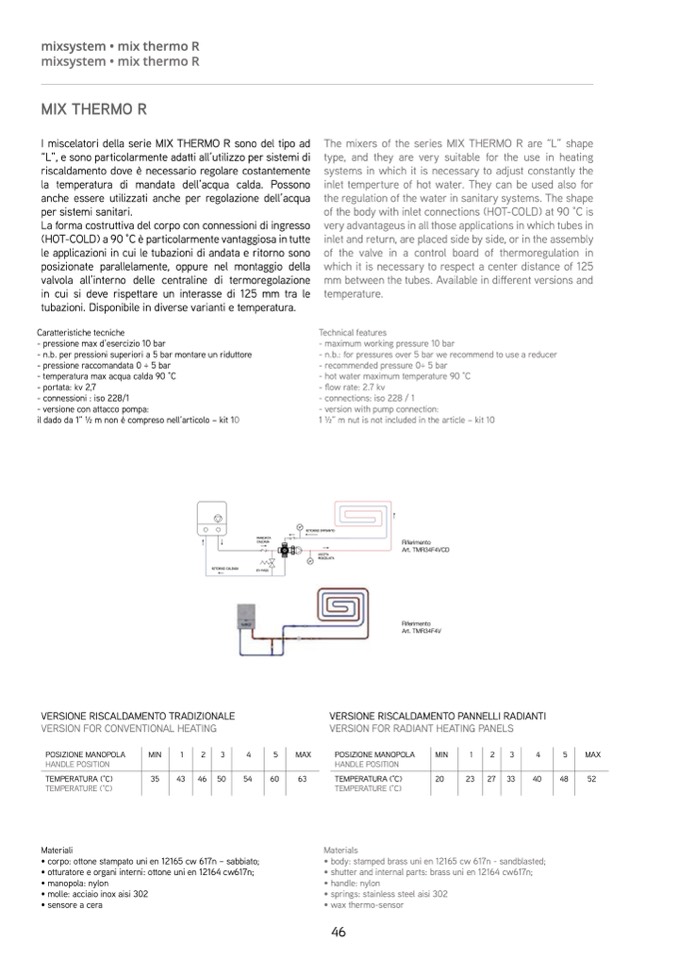

MIX THERMO R

I miscelatori della serie MIX THERMO R sono del tipo a

d

“L”, e sono particolarmente adatti all’utilizzo per sistemi di

riscaldamento dove è necessario regolare costantemente

la temperatura di mandata dell’acqua calda. Possono

anche essere utilizzati anche per regolazione dell’acqua

per sistemi sanitari

.

La forma costruttiva del corpo con connessioni di ingress

o

(HOT-COLD) a 90 °C è particolarmente vantaggiosa in tutt

e

le applicazioni in cui le tubazioni di andata e ritorno sono

posizionate parallelamente, oppure nel montaggio dell

a

valvola all’interno delle centraline di termoregolazion

e

in cui si deve rispettare un interasse di 125 mm tra l

e

tubazioni. Disponibile in diverse varianti e temperatura.

Caratteristiche tecniche

- pressione max d’esercizio 10 bar

- n.b. per pressioni superiori a 5 bar montare un riduttore

- pressione raccomandata 0 ÷ 5 bar

- temperatura max acqua calda 90 °

C

- portata: kv 2,

7

- connessioni : iso 228/

1

- versione con attacco pompa:

il dado da 1” ½ m non è compreso nell’articolo – kit 1

0

The mixers of the series MIX THERMO R are “L” shape

type, and they are very suitable for the use in heating

systems in which it is necessary to adjust constantly the

inlet temperture of hot water. They can be used also for

the regulation of the water in sanitary systems. The shape

of the body with inlet connections (HOT-COLD) at 90 °C is

very advantageus in all those applications in which tubes in

inlet and return, are placed side by side, or in the assembly

of the valve in a control board of thermoregulation in

which it is necessary to respect a center distance of 125

mm between the tubes. Available in di

fferent versions an

d

temperature

.

Technical feature

s

- maximum working pressure 10 ba

r

- n.b.: for pressures over 5 bar we recommend to use a reduce

r

- recommended pressure 0÷ 5 ba

r

- hot water maximum temperature 90 °

C

-

flow rate: 2.7 kv

- connections: iso 228 /

1

- version with pump connection

:

1 ½” m nut is not included in the article – kit 1

0

RITORNO IMPIANTO

MANDAT

A

CALDAIA

Riferimento

Art. TMR34F4VC

D

USCIT

A

MISCELAT

A

RITORNO CALDAIA

BY-PASS

Riferimento

Art. TMR34F4

V

VERSIONE RISCALDAMENTO TRADIZIONALE

VERSION FOR CONVENTIONAL HEATING

POSIZIONE MANOPOL

A

HANDLE POSITIO

N

MIN

1

2

3

4

5

MAX

TEMPERATURA (°C

)

TEMPERATURE (°C

)

35

43

46

50

54

60

6

3

VERSIONE RISCALDAMENTO PANNELLI RADIANTI

VERSION FOR RADIANT HEATING PANEL

S

POSIZIONE MANOPOLA

HANDLE POSITION

MIN

20

1

2

23

27

3

4

33

40

5

MA

X

TEMPERATURA (°C

)

TEMPERATURE (°C)

48

52

Materiali

• corpo: ottone stampato uni en 12165 cw 617n – sabbiato

;

• otturatore e organi interni: ottone uni en 12164 cw617n

;

• manopola: nylon

• molle: acciaio inox aisi 302

• sensore a cera

Material

s

• body: stamped brass uni en 12165 cw 617n - sandblasted

;

• shutter and internal parts: brass uni en 12164 cw617n;

• handle: nylo

n

• springs: stainless steel aisi 302

• wax thermo-sensor
