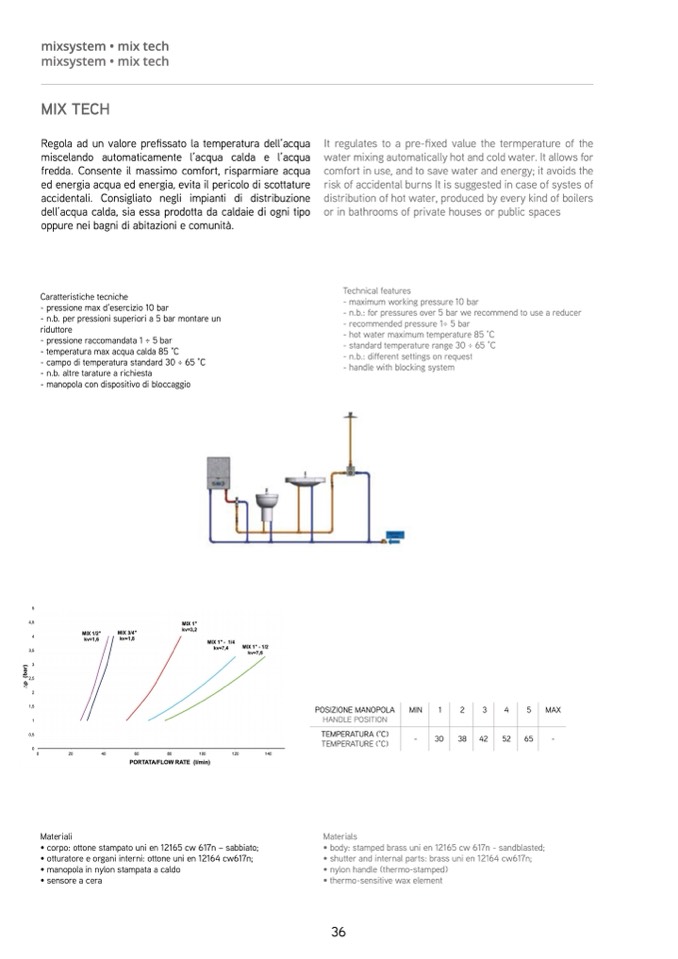

MIX TECH

Regola ad un valore pre

fissato la temperatura dell’acqu

a

miscelando automaticamente l’acqua calda e l’acqu

a

fredda. Consente il massimo comfort, risparmiare acqu

a

ed energia acqua ed energia, evita il pericolo di scottature

accidentali. Consigliato negli impianti di distribuzione

dell’acqua calda, sia essa prodotta da caldaie di ogni tip

o

oppure nei bagni di abitazioni e comunità

.

It regulates to a pre-

fixed value the termperature of th

e

water mixing automatically hot and cold water. It allows fo

r

comfort in use, and to save water and energy; it avoids th

e

risk of accidental burns It is suggested in case of systes o

f

distribution of hot water, produced by every kind of boilers

or in bathrooms of private houses or public spaces

Caratteristiche tecnich

e

- pressione max d’esercizio 10 bar

- n.b. per pressioni superiori a 5 bar montare un

riduttor

e

- pressione raccomandata 1 ÷ 5 ba

r

- temperatura max acqua calda 85 °C

- campo di temperatura standard 30 ÷ 65 °C

- n.b. altre tarature a richiest

a

- manopola con dispositivo di bloccaggi

o

Technical features

- maximum working pressure 10 bar

- n.b.: for pressures over 5 bar we recommend to use a reduce

r

- recommended pressure 1÷ 5 bar

- hot water maximum temperature 85 °C

- standard temperature range 30 ÷ 65 °C

- n.b.: different settings on request

- handle with blocking system

5

4,5

4

3,5

3

p

(

b

a

r

)

2,5

2

1,5

1

0,5

0

MIX 1"

kv=3,2

MIX 1/2"

kv=1,6

MIX 3/4

"

kv=1,

8

MIX 1" - 1/

4

kv=7,4

MIX 1" - 1/

2

kv=7,

6

POSIZIONE MANOPOLA

HANDLE POSITIO

N

MIN

1

2

3

4

5

MAX

TEMPERATURA (°C

)

TEMPERATURE (°C)

-

30

38

42

52

65

-

0

20

40

60

80

100

120

140

PORTATA/FLOW RATE (l/min)

Materiali

• corpo: ottone stampato uni en 12165 cw 617n – sabbiato

;

• otturatore e organi interni: ottone uni en 12164 cw617n

;

• manopola in nylon stampata a cald

o

• sensore a cera

Material

s

• body: stamped brass uni en 12165 cw 617n - sandblasted

;

• shutter and internal parts: brass uni en 12164 cw617n;

• nylon handle (thermo-stamped)

• thermo-sensitive wax element
